| Power Rating | 1750 Watts Peak 875 Watts Continuous | |
| Frequency Range | 57 Hz - 20 kHz (-10 dB) | |
| Dimensions (H x W x D) | 349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in) | |
| Frequency Response | 75 Hz - 20 Hz (+/-3db) | |
| Maximum Peak Output | 136 dB SPL at 1m | |
| Coverage Pattern | 100 x 15 nominal | |
| DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts | |
| DPC-2 Output Sectoin | LF: Dual-Bridged Technology™, Class D | |
| Audio Input Connector | XLR with loop through | |
| LF Driver | 1 x JBL 2262FF 305 mm (12 in) neodymium magnet | |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) | |
| User Controls | Input Attenuator (0-16 dB) | |
| Signal Processings | DSP based, resident in Input Module | |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz | |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) | |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) | |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V | |
| Enclosure | 25/15 mm, 11-ply birch plywood | |
| Suspension / Mounting | Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting | |
| Finish | Black DuraFlex™ finish | |
| Grille | Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam | |
| Net Weight | 24 kg (52 lb) | |

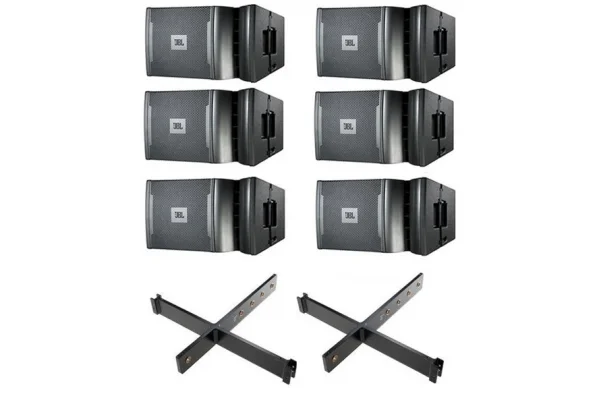

| Optional Accessories | VRX-AF: Suspension array frame |
