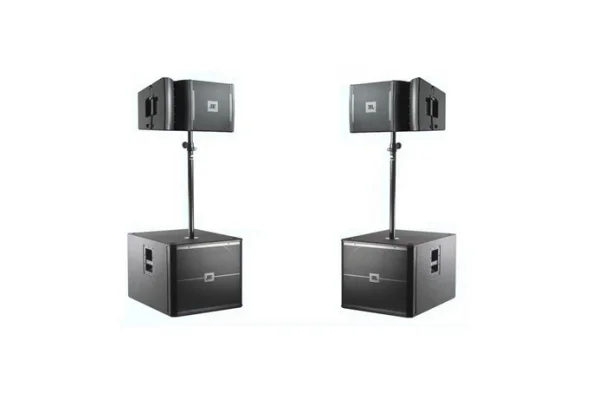

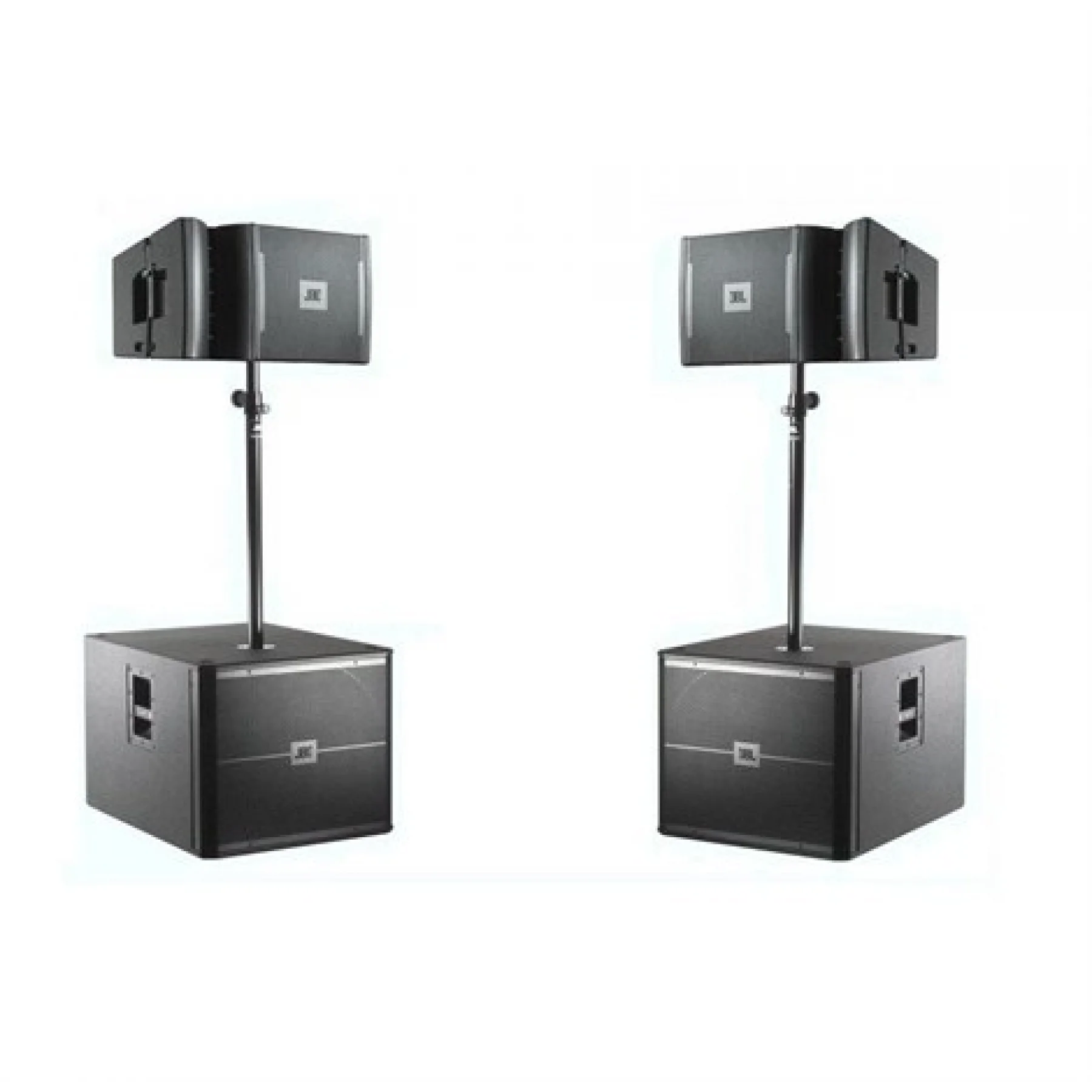

JBL VRX900-2 Aktif Line Array Seti
VRX932LAP
The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn t call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LAP speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LAP, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.
VRX932LAP uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower box is shaded back to reduce excessive level at the front of the listening area. This yields to a more coherent sound field and less feedback problems.
One or two VRX932LAP’s may also be used on a tripod or over subwoofers. The integrated rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.
As many as five VRX932LAP speaker systems may be suspended in a single array for a nominal vertical coverage of up to 75°. Suspended applications require the JBL VRX-AF array frame or eye bolts (available separately).
Features
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL s exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permist "array shading".
-
Specifications
- Power Rating : 1750 Watts Peak
- 875 Watts Continuous
- Frequency Range : 57 Hz - 20 kHz
- (-10 dB)
- Dimensions
- (H x W x D) : 349 mm x 597 mm x 444 mm
- (13.75 in x 23.5 in x 17.5 in)
- Frequency Response : 75 Hz - 20 Hz
- (+/-3db)
- Maximum Peak Output : 136 dB SPL at 1m
- Coverage Pattern : 100 x 15 nominal
- DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts
- DPC-2 Output Sectoin : LF: Dual-Bridged Technology™, Class D
- Autio Input Connector : XLR with loop through
- LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
- HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)
- User Controls : Input Attenuator (0-16 dB)
- Signal Processings : DSP based, resident in Input Module
- AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz
- AC Input Connector : Neutrik PowerCon (NAC 3MPA)
- AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)
- AC Current Requirements : 6A per system at 120V, 3A per system at 240V
- Enclosure : 25/15 mm, 11-ply birch plywood
- Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
- Finish : Black DuraFlex™ finish
- Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
- Net Weight : 24 kg (52 lb)
- Optional Accessories : VRX-AF: Suspension array frame
VRX918SP
The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
Equally at home in ground stacked applications, the VRX918SP is equipped with a top-mounted, threaded, 20 mm
socket that can receive the optional SS4-BK pole. This adjustable height pole can be used to mount speakers equipped with standard 36 mm pole sockets and weighing up to 50 kg (100 lb). The threaded socket minimizes buzzing and rattling and assures that the pole will be secure and straight.
The enclosure is constructed of top quality birch plywood, coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The attractive CNC machined, 16-gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The rear of the enclosure is fitted with T-nuts which may be used to attach the optional WK-4S caster kit.
Features
- Music playback and sound reinforcement.
- Entertainers, corporate A/V professionals and sound system hire companies.
- Permanent Installation.
- Built-in JBL DrivePack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
Specifications
- Frequency Range (-10 dB): 31 Hz - 220 Hz
- Frequency Response (±3 dB): 34 Hz - 220 Hz
- Maximum Peak Output1: 126 dB SPL at 1m
- LF Driver: 1 x JBL 2268FF 457 mm (18 in) dual voice coil
- Differential Drive® woofer with neodymium-magnet
- Bandpass Nominal Impedance: LF: 2 x 2 ohms
- DPC-2 Internal Amplification Output (at nominal load): 1500 Watts Peak, 750 Watts Continuous
- DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance): LF: 750 Watts
- DPC-2 Output Section: LF: Dual-Bridged Technology™, Class D
- Audio Input Connector: XLR with loop through
- User Controls: Input Attenuator (0-16 dB)
- Selectable 80 Hz or 120 Hz Low Pass
- 80 Hz High-Pass enable/disable for XLR loop thru.
- Signal Processing: DSP based, resident in Input Module
- System Management: DSP based limiters for mechanical and thermal protection.
- AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60Hz
- AC Line Voltage: User selectable: 120V/240V (-15%, +10%)
- AC Input Connector: Neutrik PowerCon (NAC 3MPA)
- AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
- AC Current Requirements: 6A per system at 120V, 3A per system at 240V
- Enclosure: 18 mm birch plywood.
- Suspension / Mounting: Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
- Finish: Black DuraFlex™ finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
- Dimensions (H x W x D): 508 mm x 597 mm x 749 mm
- (20.0 in x 23.5 in x 29.5 in) Net Weight: 38.5 kg (85 lb)
- Optional Accessories: VRX-AF array frame
- SRX718S-CVR: Pull-over padded cover (works with WK-4S)
- SS4-BK adjustable satellite speaker pole
- WK-4S Caster kit
