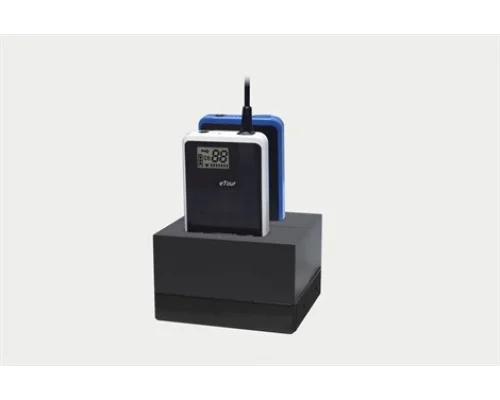

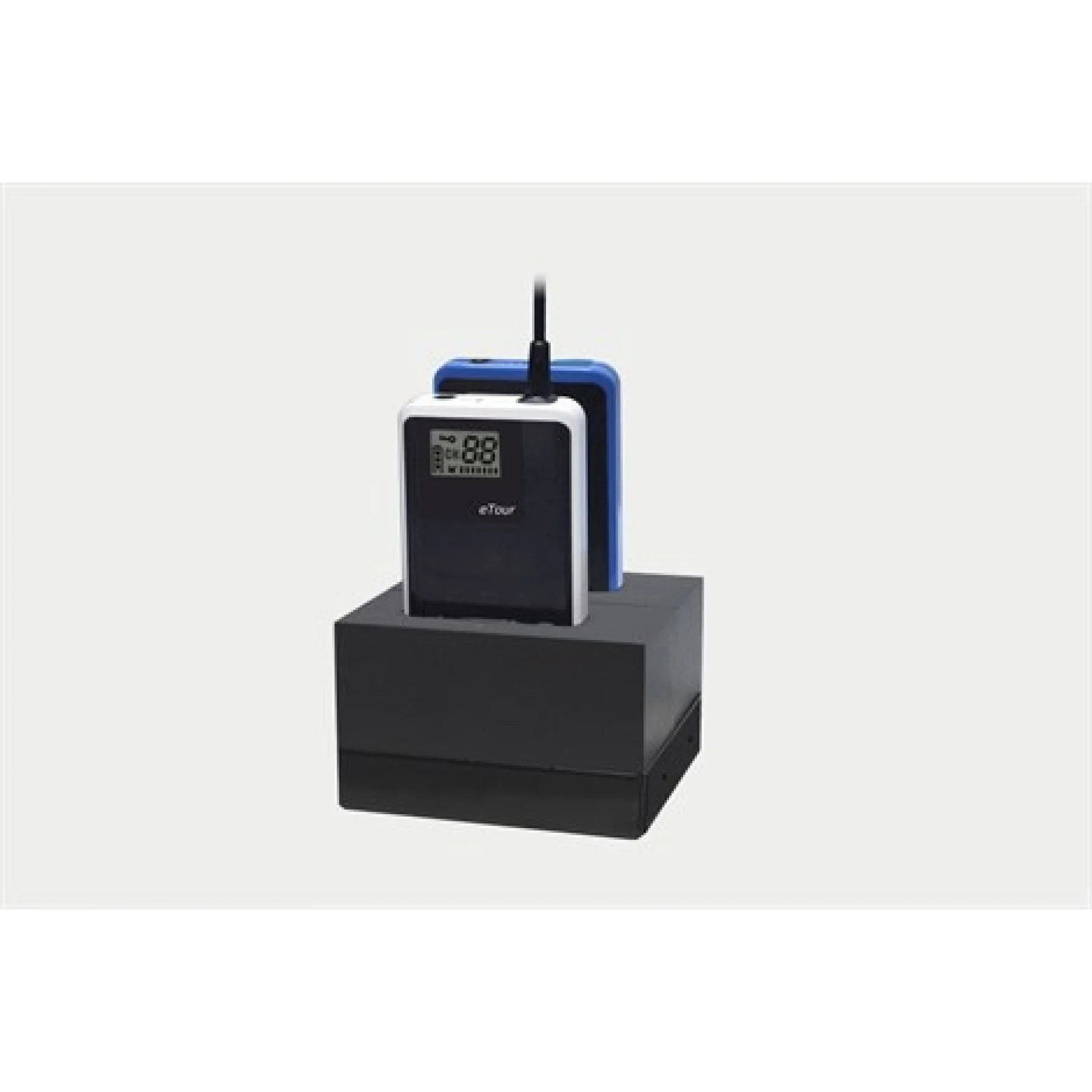

Name: Linkx TC-02 2 Li Şarj Ünitesi
Brand: Linkx
SKU: LINKX TC-02

Linkx TC-02 2 Li Şarj Ünitesi

Barkod: 2242005913499

Marka: Linkx

Kategori: Tur Rehber Üniteleri

Hızlı Gönderi

Versatile 16-Input Configuration Adapts to Varied Source Requirements
The EMX5016CF has a total of 16 input channels - eight for monaural microphone or line input plus four stereo pairs. The stereo channel pairs can function either as monaural microphone inputs or stereo line inputs. This system gives you extra microphone inputs if your sources are mostly microphones, or if you need to handle more stereo sources the EMX5016CF will comfortably handle four pairs in addition to eight monaural microphone or line inputs. Switchable phantom power is provided for all microphone inputs.

Advanced Channel EQ
3-band EQ is available on all input channels, but extra versatility is provided on the eight mono channels with mid-frequency sweep controls. The mid EQ center frequency can be continuously swept from 250 Hz through 5 kHz so you can precisely pinpoint frequencies in the critical midrange that require compensation, providing significantly enhanced equalization potential

General specifications

Maximum output power	500W + 500W (4ohms), 370W + 370W (8ohms/ AC100V model) 350W + 350W (8ohms/ AC120V model) 320W + 320W (8ohms/ AC220-240V model) @1kHz, THD+N ≤ 0.5%
Total harmonic distortion (THD+N) @ 20-20kHz	Less than 0.3%, +14dBu output into 600ohms
Frequency response GAIN=Minimum, PAD=OFF	0, +0, -3dB, 20Hz-20kHz, 0dB @1kHz
Equivalent input noise GAIN=Maximum, 20-20kHz	-128dBu
Crosstalk @ 1kHz	-68dB, adjacent inputs
	-68dB, input to output
Phantom voltage	+48V
Channel equalizer +15,-15dB Maximum	HIGH: 10kHz (Shelving)
	MID(MONO): 250Hz-5kHz (Peaking)
	MID(ST) 2.5kHz (Peaking)
	LOW: 100Hz (Shelving)
Compressor (COMP)	On each channel; One control adjusts the Gain, threshold and Ratio simultaneously
Channel peak indicator	LED turns on when post EQ signal reaches -3dB below clipping
Channel signal indicator	LED turns on when post EQ signal reaches -10dB
Feedback suppressor	AUTO/MANUAL mode
LED level meter (ST, PFL/AFL)	2*12 points LED meter (PEAK,+5,+3,+1,0,-1,-3,-5,-7,-10,-15,-20 dB) PEAK lights if the signal comes within 3 dB of the clipping level.
Frequency response correction system	Pink noise/Music playback measurement mode
Maximizer	3-band compressor ON/OFF
Digital graphic equalizer	9-band, ±12dB; Preset x3, User preset x3
Digital effect	16 programs, Parameter control Foot switch (FC5:Option) for Effect ON/OFF
Lamp	XLR-3-31 type, 12V DC between pins 2 and 3, 5W max.
Power amplifier protection	POWER switch on/off mute DC-fault Thermal / heatsink temp ≥ 90 degrees celsius Vl limiter / RL≤2 ohms Clip limiter / THD≥1%, Indicator x 2
Power supply protection	Thermal / heatsink temp ≥ 100 degrees celsius
Cooling	Variable-speed fan ( x 2)
Power consumption	Japan:	AC100V 50/60Hz, 500W
	North America:	AC120V, 60Hz, 500W
	Other Areas:	AC220-240V, 50/60Hz, 500W
Dimensions (W x H x D)	444 x 155 x 493 mm / 17.48 x 6.1 x 19.41 in
Weight	11kg / 24.25lbs

Input characteristics

Input terminal	PAD	GAIN	Actual load impedance	For use with nominal	Input level			Connector
Input terminal	PAD	GAIN	Actual load impedance	For use with nominal	Sensitivity	Nominal	Max. before clip	Connector
CH INPUT A 1-8	0dB	-60dB	3kohms	50-600 ohm Mics	-80dBu	-60dBu	-40dBu	XLR-3-31 type *3
	0dB	-16dB			-36dBu	-16dBu	+4dBu
	26dB	-34dB			-54dBu	-34dBu	-14dBu
	26dB	+10dB			-10dBu	+10dBu	+30dBu
CH INPUT B 1-8	0dB	-60dB	10kohms	600ohm Lines	-80dBu	-60dBu	-40dBu	TRS phone jack
	0dB	-16dB			-36dBu	-16dBu	+4dBu
	26dB	-34dB			-54dBu	-34dBu	-14dBu
	26dB	+10dB			-10dBu	+10dBu	+30dBu
ST CH MIC INPUT 9/10-15/16		-60dB	3kohms	50-600 ohm Mics	-80dBu	-60dBu	-40dBu	XLR-3-31 type
ST CH MIC INPUT 9/10-15/16		-16dB	3kohms	50-600 ohm Mics	-36dBu	-16dBu	-10dBu	XLR-3-31 type
ST CH LINE INPUT 9/10-15/16		-34dB	10kohms	600ohm Lines	-54dBu	-34dBu	-14dBu	Phone jack, RCA pin jack
ST CH LINE INPUT 9/10-15/16		+10dB	10kohms	600ohm Lines	-10dBu	+10dBu	+30dBu	Phone jack, RCA pin jack
CH INSERT IN (1-8)		-	10kohms	600ohm Lines	-20dBu	0dBu	+20dBu	Phone jack

* 0dBu= 0.775Vrms

Output characteristics

Output terminal	Actual source impedance	For use with nominal	Output level		Connector
Output terminal	Actual source impedance	For use with nominal	Nominal	Max. before clip	Connector
ST OUT [L,R]	150ohms	600ohm Lines	+4dBu	+20dBu	TRS phone jack
ST SUB OUT [L,R]	150ohms	600ohm Lines	+4dBu	+20dBu	TRS phone jack
AUX SEND 1,2	150ohms	600ohm Lines	+4dBu	+20dBu	TRS phone jack
EFFECT SEND 1,2	150ohms	600ohm Lines	+4dBu	+20dBu	TRS phone jack
CH INSERT OUT 1-8	600ohms	10kohm Lines	0dBu	+20dBu	TRS phone jack
REC OUT [L,R]	600ohms	10kohm Lines	-10dBV	+10dBV	RCA pin jack
PHONES [L,R]	100ohms	40ohm Lines	3mW	75mW	ST phone jack
SPEAKERS	0.1ohms	4ohm Speakers	125W	500W	SPEAKON Phone jack

* 0dBu=0.775Vrms. 0dBV =1.0Vrms
