Configuration | Active 2-Way |
Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
Total Power Capacity | 1600 W |
Amplifier Class | Class-D |
HF Driver | 1 x Horn |
LF Driver | 1 x 15" / 38.1 cm Woofer |
Frequency Response | 42 Hz to 20 kHz |
Maximum SPL | 133 dB (Peak) |
Coverage Angle | 90° H x 60° V |
Protections | Output Limiter |

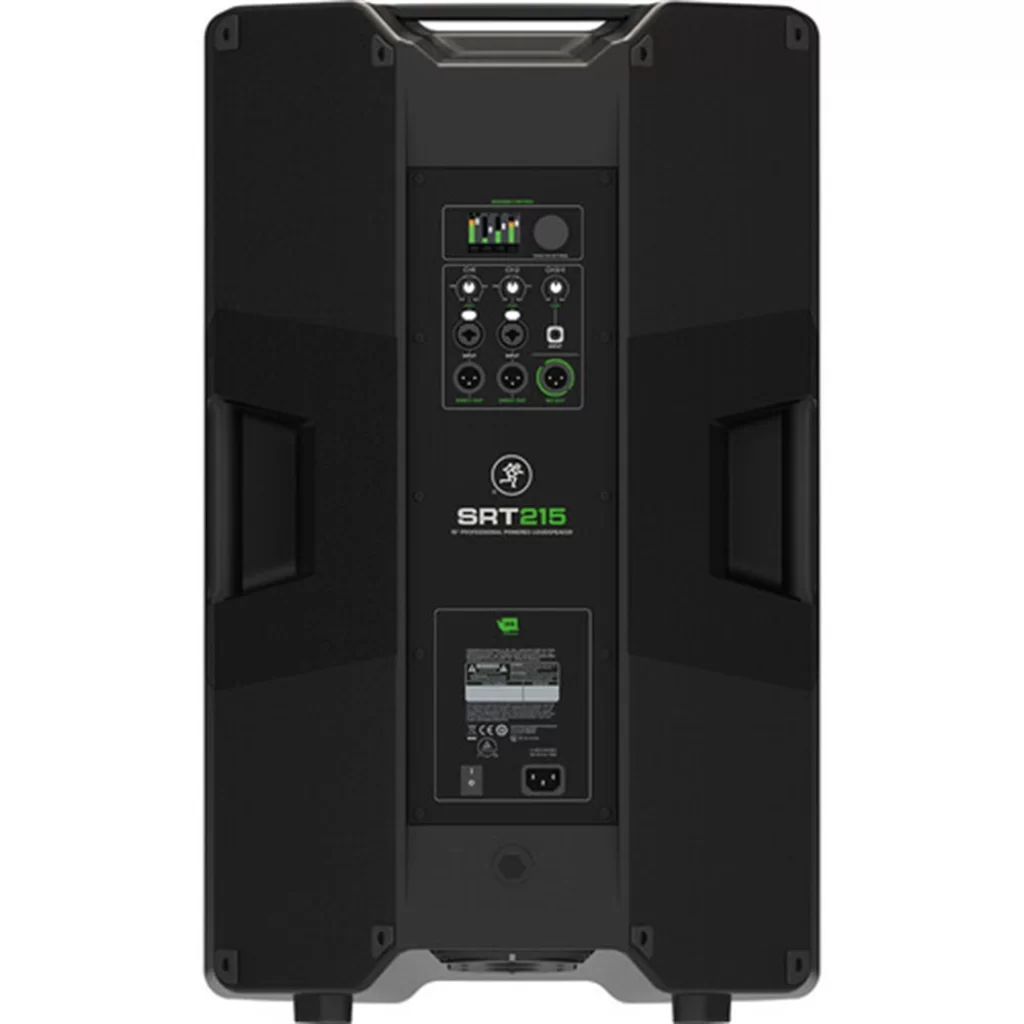

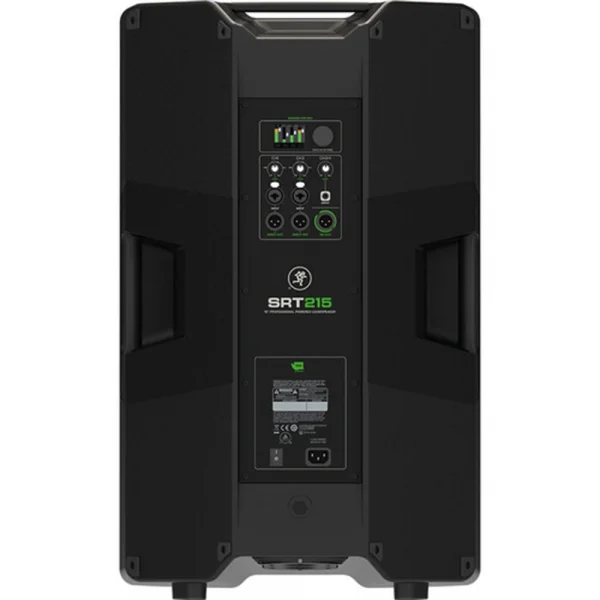

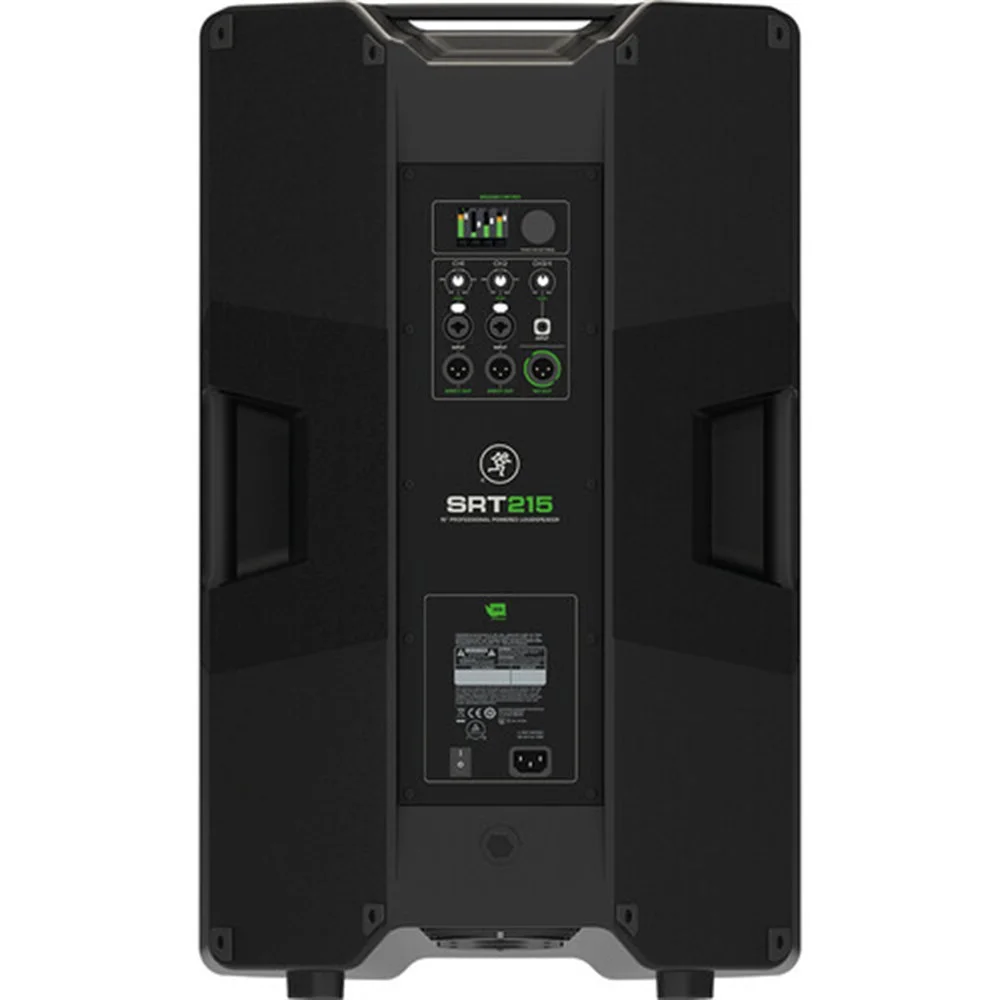

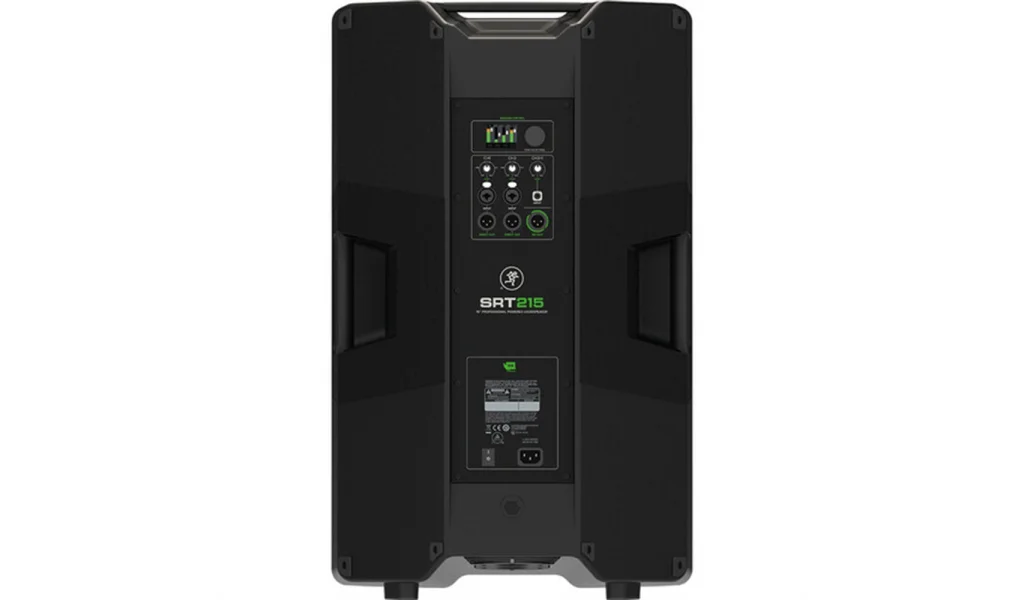

Audio I/O | 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Aux Input 2 x XLR 3-Pin Male Thru/Output 1 x XLR 3-Pin Male Mix Output |
Network I/O | None |
USB | None |
Wireless Connectivity | Bluetooth |
Wireless Range | 328.1 / 100 m |
Crossover | Internal |
Phase Adjustment | None |
AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
AC Power Connector | 1 x IEC Input (Locking) |
Mounting | M10 Fly Point 2 x 1.38" / 35 mm Pole Socket (Dual Angle, Bottom) |
Handles | 1 x Top 1 x Side |
Construction Material | ABS, Metal Grille |
Dimensions | 28.8 x 17.6 x 15.4" / 731.5 x 447 x 391.2 mm |
Weight | 48.9 lb / 22.2 kg |
