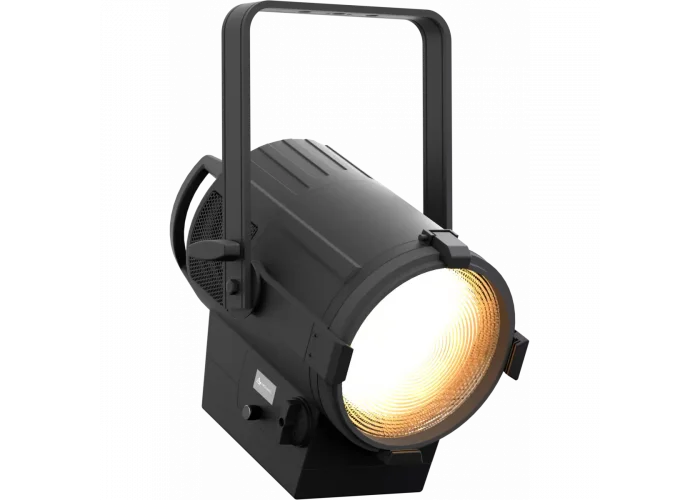

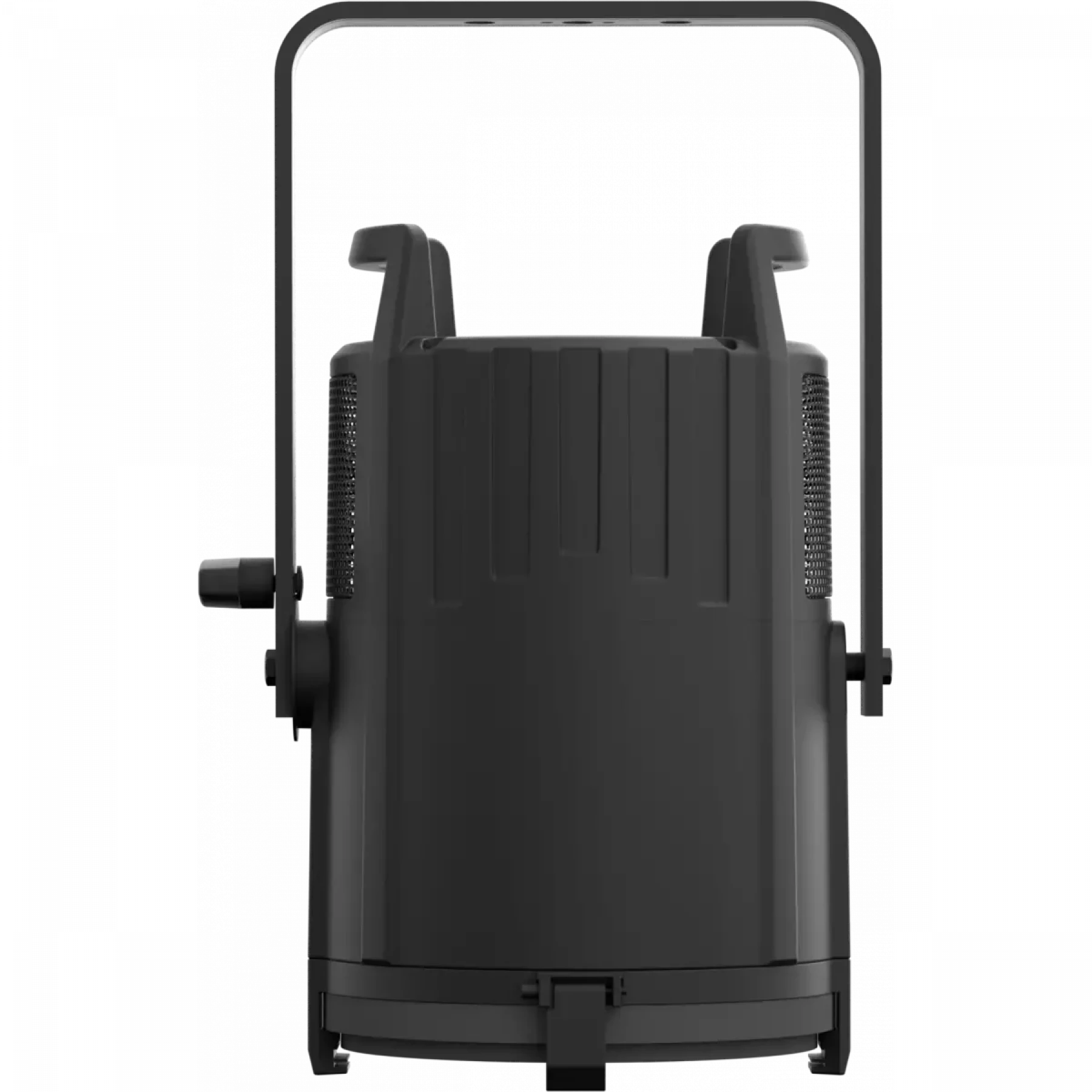

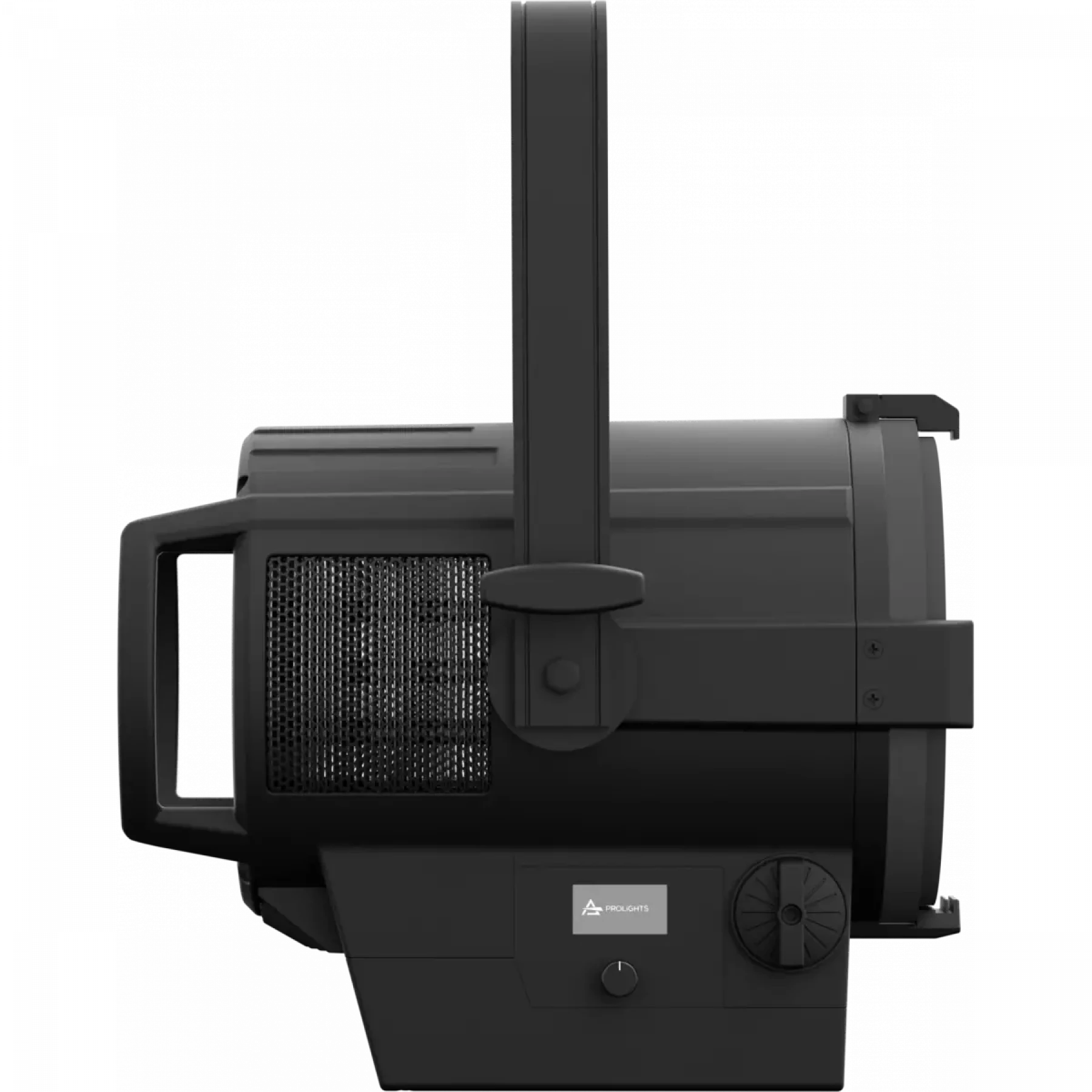

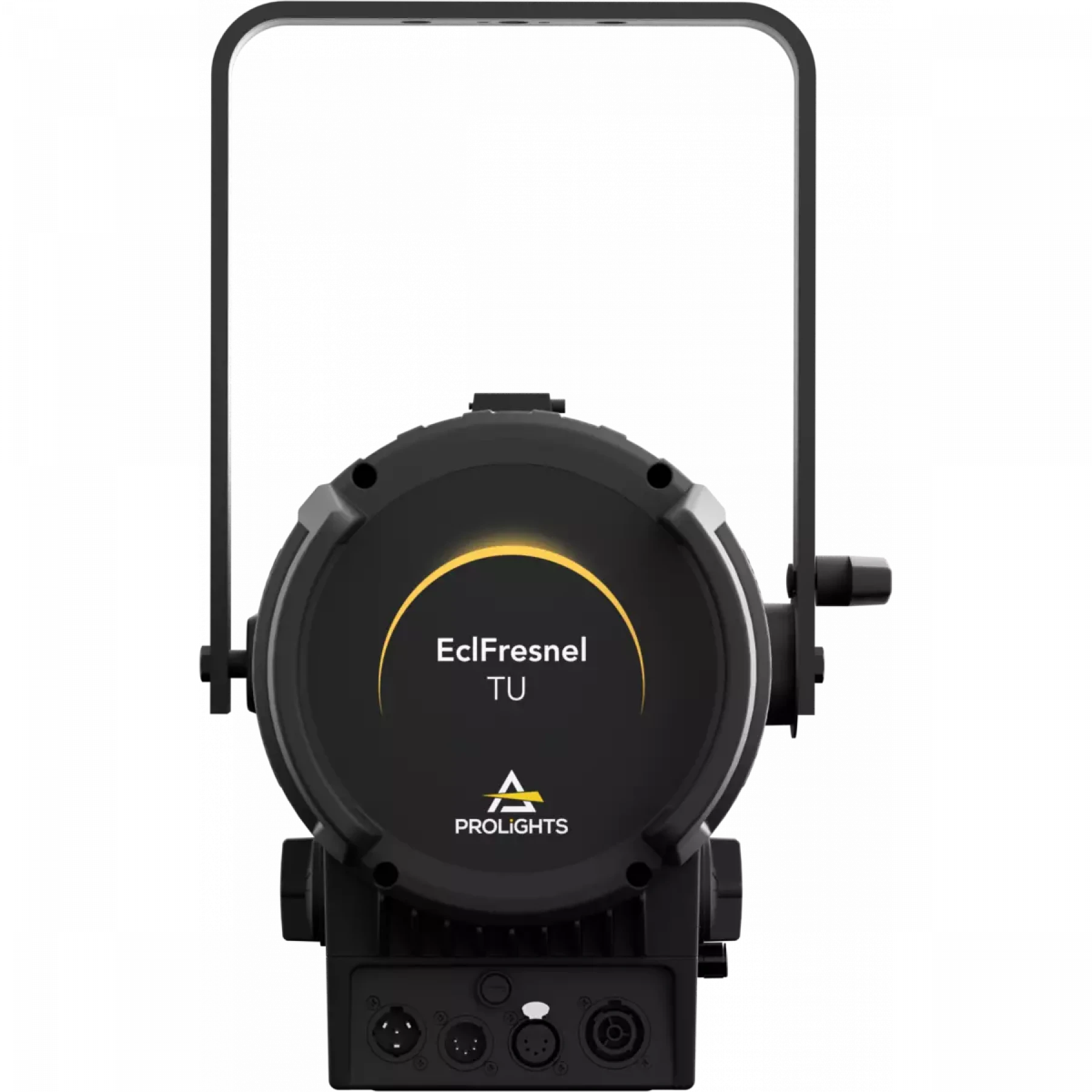

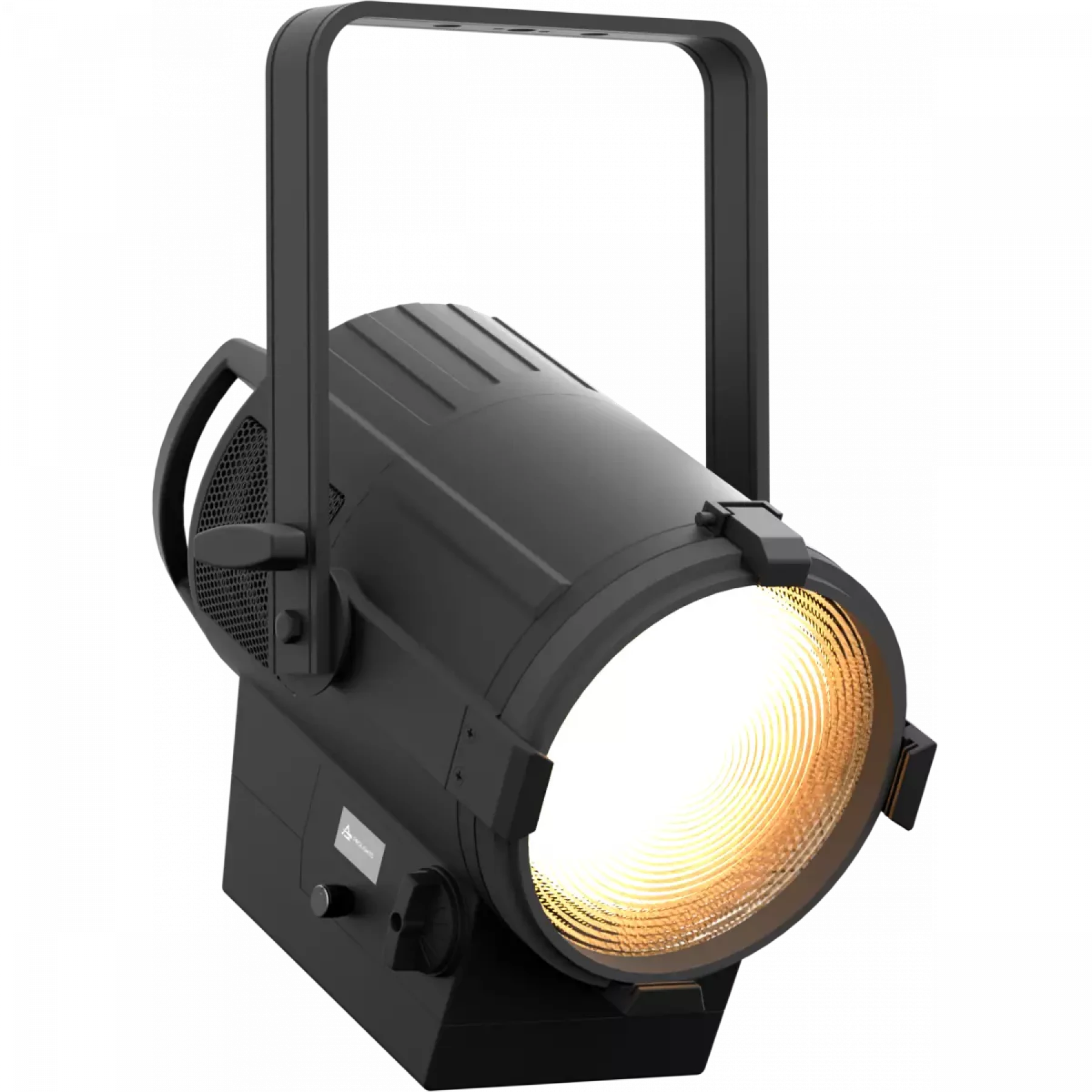

Prolights ECLFRESNELTU LED FRESNEL SPOT, 230W 3200K LED, 17-66°, Barndoor Dahil
EclFresnel , standart tungsten ampulllü 1.000W Fresnel'in LED alternatifidir. Geleneksel Fresnel'in çıktı özelliklerine sahiptir.
LIGHT SOURCE- Source: 230W high-power white LED
- CCT: (TU) 3.200 K - (DY) 5.600
- Luminous flux: (TU) (17°) 10'842 lm (66°) 13'320lm @full
- Luminous flux: (DY) (17°) 12'546 lm (66°) 15'623 lm @full
- Lux: (TU) (17°) 3'728 lx - (66°) 1'019lx @5 m full
- Lux: (DY) (17°) 4'260 lx - (66°) 1'182lx @5 m full
- CRI: (TU) >98 - (DY) >95
- R9: (TU) >90 - (DY) >90
- TLCI: (TU) >98; (DY) >95
- TM30 Rf: (TU) >92; (DY) >89
- TM30 Rg: (TU) >99; (DY) >98
- Source life expectancy: > 50.000 h
OPTICS- Zoom: 17° - 66° manual
- Lens diameter: 8'' - 200mm / 0.31''
- Lens type: fresnel zoom lens

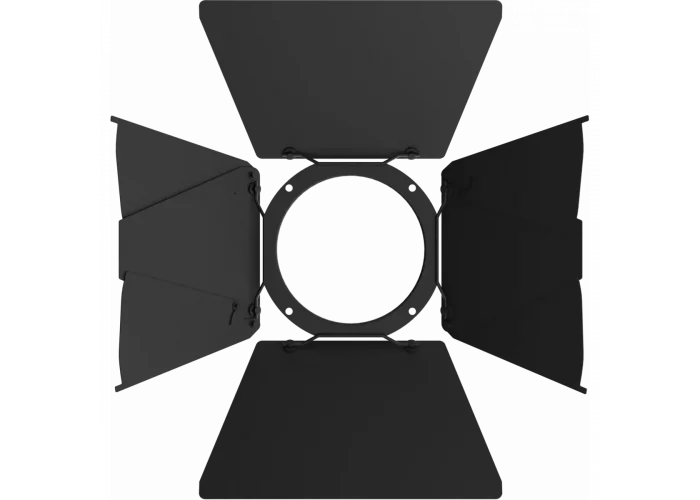

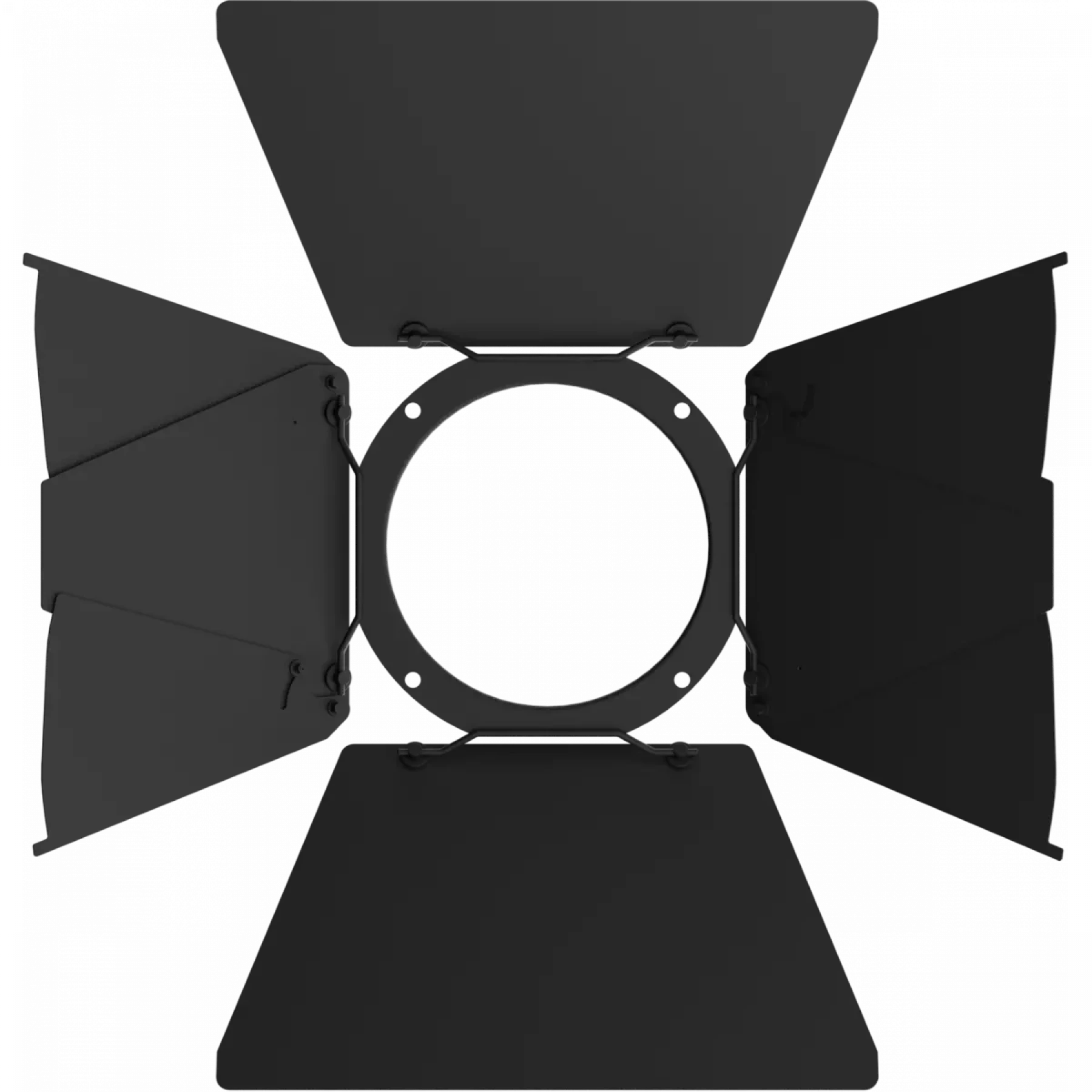

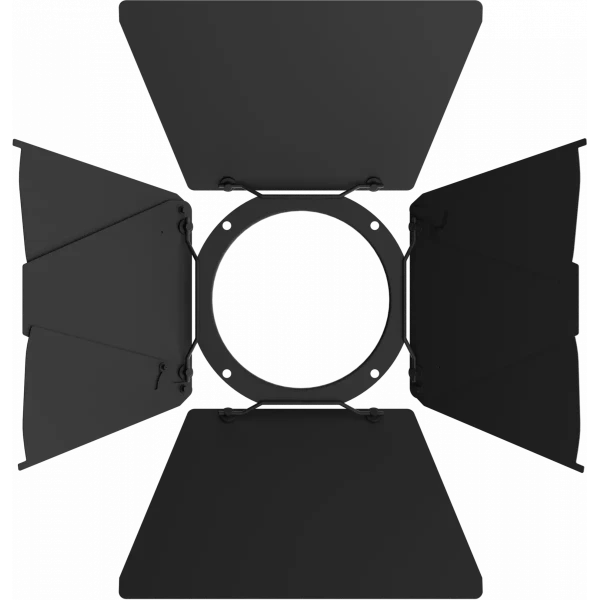

- Other: barndoor and gel frame included
COLOUR SYSTEMDYNAMIC EFFECTS- Static mode: selection of static dimmer
- Manual mode: manual adjust of dimmer throught menu and knob
- Auto mode: built-in programs with execution speed adjustment
BODY- Hardware on-board: included filter frame, 8 doors barndoor, spigot
- Pan angle: (for pole operated version) 360° with manual regulation
- Tilt angle: (for pole operated version) 340° with manual regulation
- Body: sturdy die-cast aluminium body
- Body colour: black, white finishing available
- Other: Spigot 28 mm
CONTROL- Protocols: DMX512, RDM, rotatory knob
- DMX channels: ch1: 1 / 2 - ch2: 2 / 3 / 5channel
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
- Other: 16bit control of dimmer
ELECTRONICS- Dimmer: linear 0 ~ 100%, manual knob dimmer
- Dimmer curves: selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 220W
- Output (at 230V): 10 units on a single power line
- Power factor: 0,95
PHYSICAL- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: bracket for hanging and positioning

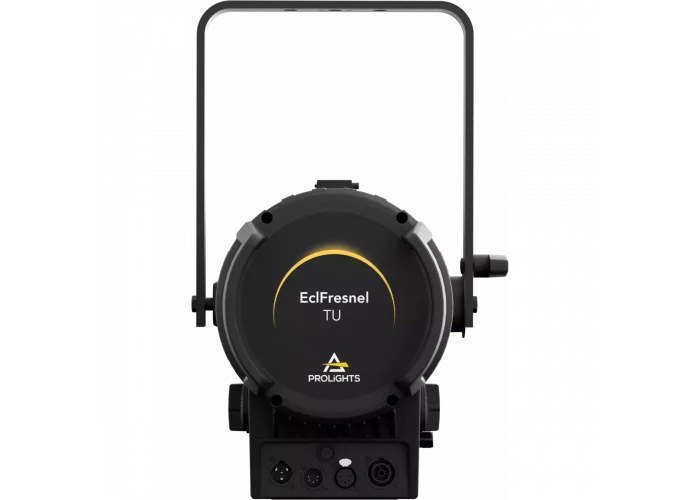

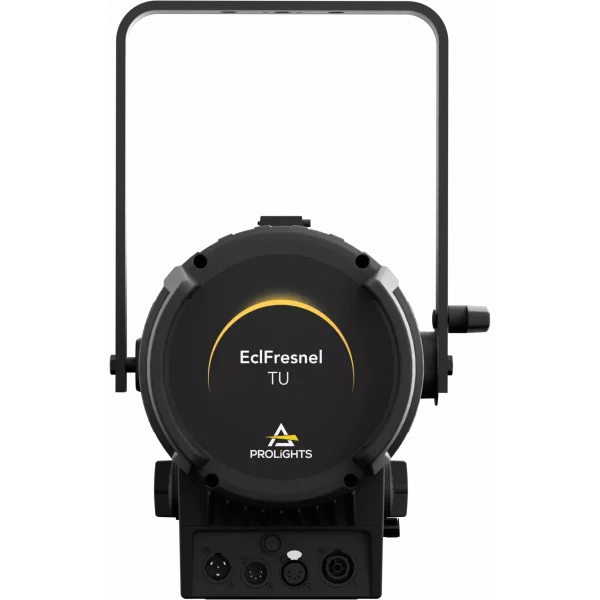

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
- Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
- Weight: 7,5kg / 16.53lbs
- Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS- Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT- 1 x ECLFRESNEL
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- 1 x ECLFRSPG
- 1 x ECLFRSBD
- 1 x ECLFRSTPG
- User Manual
