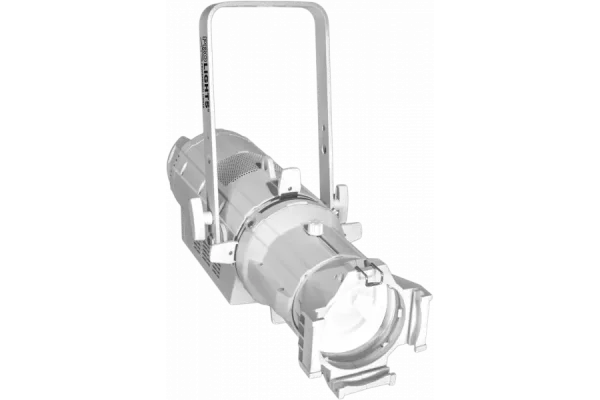

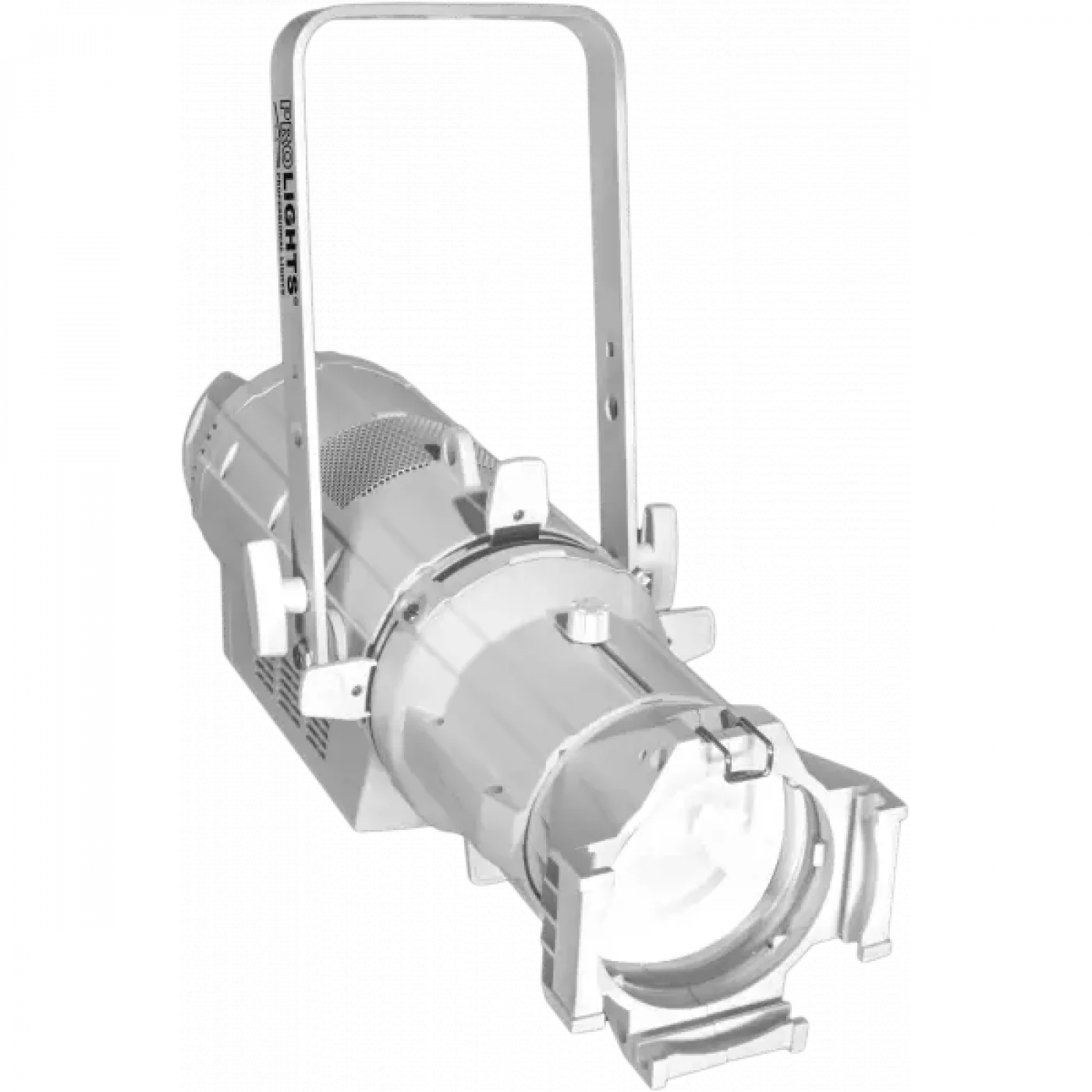

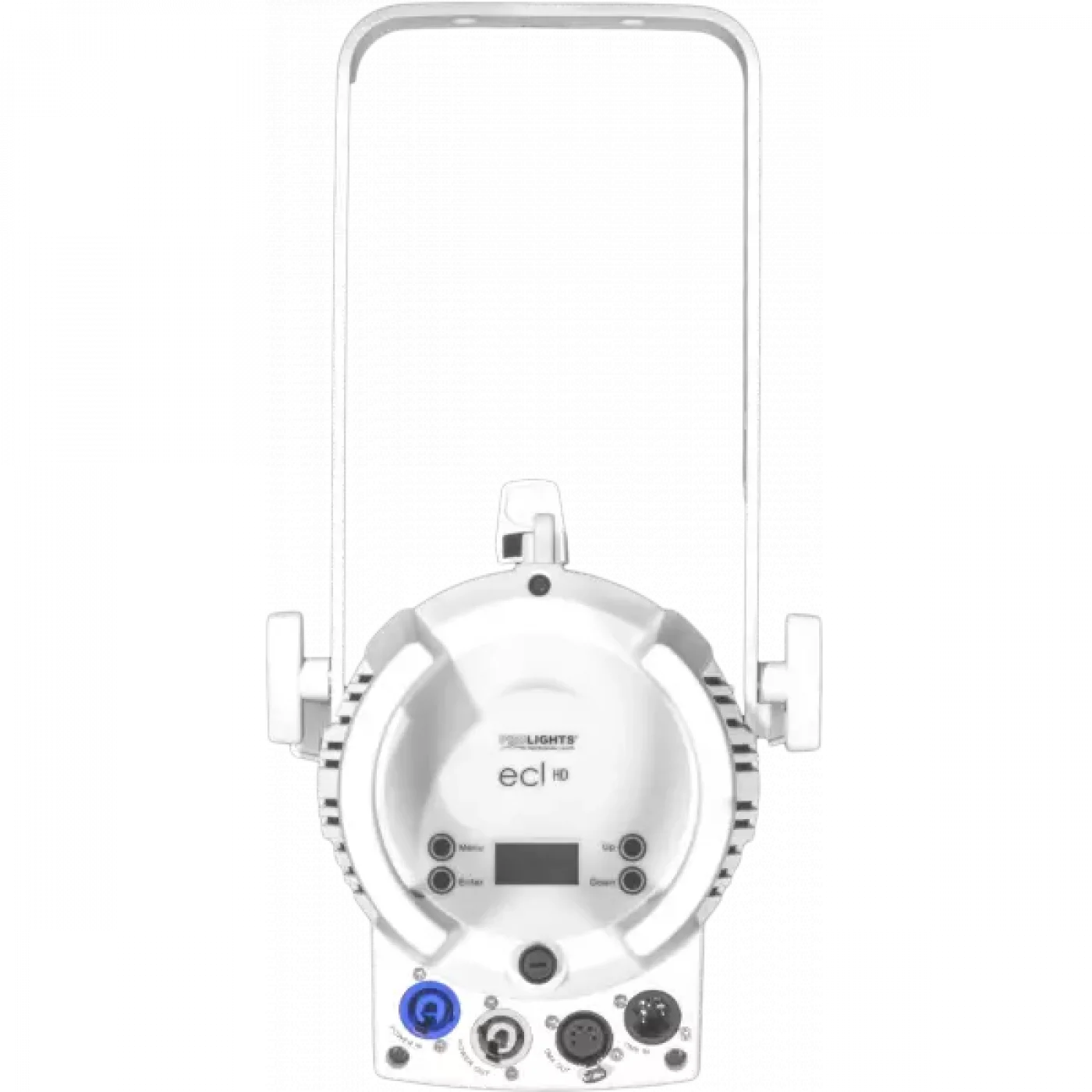

Prolights EclProfile HD LED Profil Spot 200W, 5000K, White Base (ECLHDDYWH)

Prolights ECLHDDYWH LED Profiler 200W, 5000K, White Base

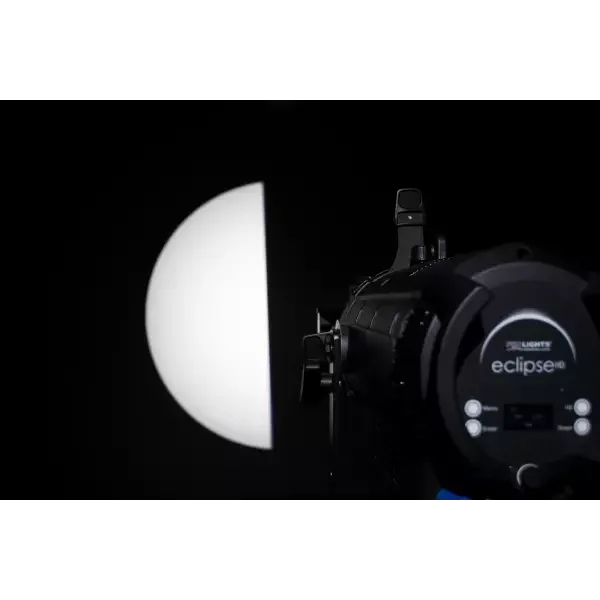

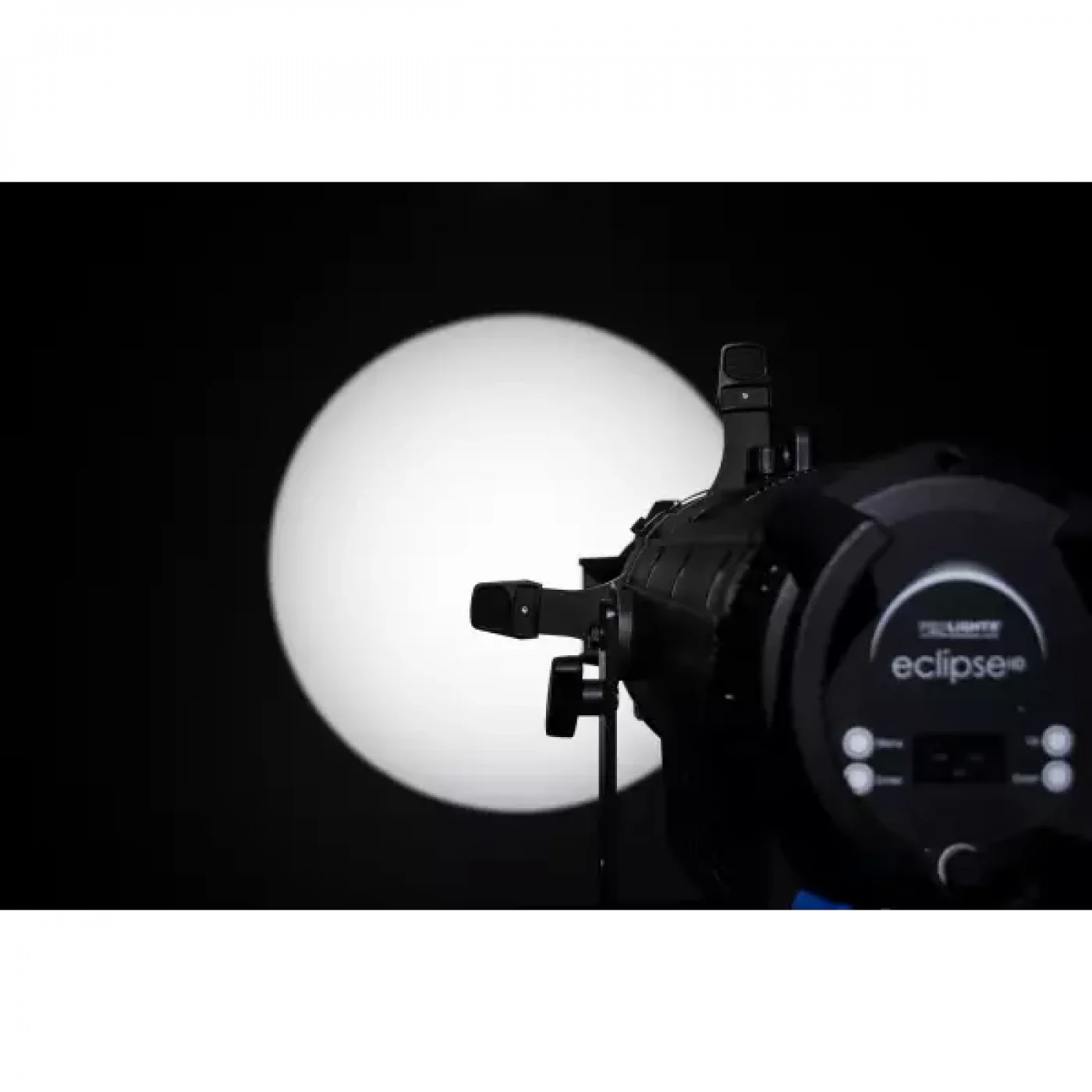

EclProfile HD is a true LED replacement for the traditional 750 W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 200W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing.

Featuring HD dimming and available in 3.100 K or 5.000 K, the EclProfile HD delivers the performance and quality of output demanded from this level of the luminaire.

EclProfile HD

	Code	CT	CRI	Housing
	ECLHDDYWH	5.000 K	> 80 Ra	White
	ECLHDTUWH	3.045 K	90 Ra	White

Features:

• Source:

  200
  W

  high-power white LED
• CCT:

  TU 3.045 K - DY 5.000
• Luminous flux:

  (26°) TU 12'323 lm - DY 15'526
  lm
• Lux:

  TU: (19°) 19'235 lx - (26°) 13'738 lx - (36°) 8'578 lx - (50°) 3'601
  lx

  @3 m
• Lux:

  DY: (19°) 24'769 lx - (26°) 17'749 lx - (36°) 10'992lx - (50°) 5'109
  lx

  @3 m
• CRI:

  (TU) > 90; (DY) > 80
• Other:

  TLCI: (TU) 19°: 90,5 - 26°: 89,7 - 36°: 92 - 50°: 90
• Source life expectancy:
   > 50.000 h

• Beam angle:

  optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / Z15-30° / Z25-50
  °
• Lens type:
   high-quality glass lens optics

• Gobo size:

  B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm

• Body:
   sturdy die-cast aluminium body
• Body colour:
   black, white finishing available

• Protocols:
   DMX512
• DMX channels:

  1 / 2 / 5
  channel
• RDM:
   RDM for remote monitoring and settings

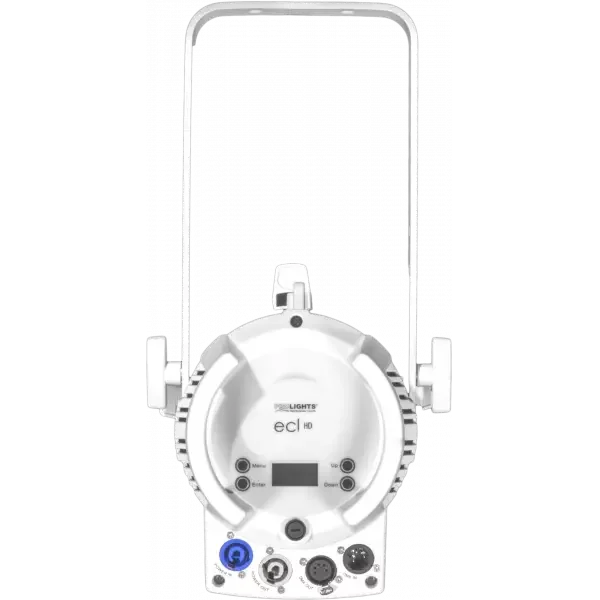

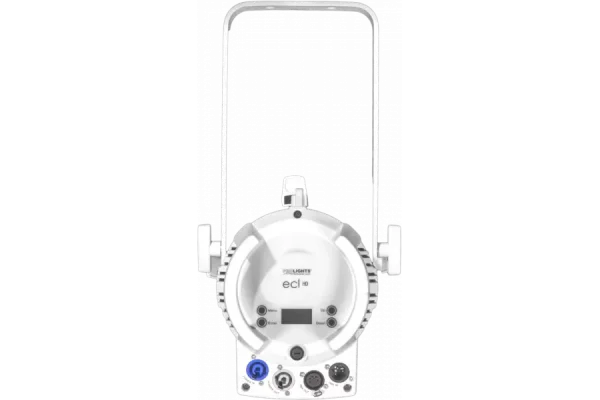

• Display:
   Graphic User Interface
• Firmware upgrade:
   yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
• Master/Slave:
   for synchronised operation of more units linked in a chain

• Dimmer:
   linear 0 ~ 100% electronic dimmer
• Dimmer curves:

  4

  selectable dimming modes available
• Strobe / shutter:

  1 - 30

  Hz, electronic
• Display battery:
   self-charging battery backup
• Operating temperature:
   -10° ~ +45°
• LED Control:
   flicker free operation
• Selectable PWM:
   600 ~ 25.000 Hz

• Mains power supply:
   100-240V - 50/60Hz
• Max power consumption:

  226
  W
• Max power consumption (at 120V):

  229
  W
• Output (at 230V):

  7

  units on a single power line

• IP rating:

  20
• Cooling:
   combination of heat pipe cooling system and low noise fan
• Suspension and fixing:
   bracket for hanging and positioning
• Signal connection:
   Amphenol XLR 5p IN/OUT connectors
• Power connection:
   Neutrik powerCON IN/OUT connectors

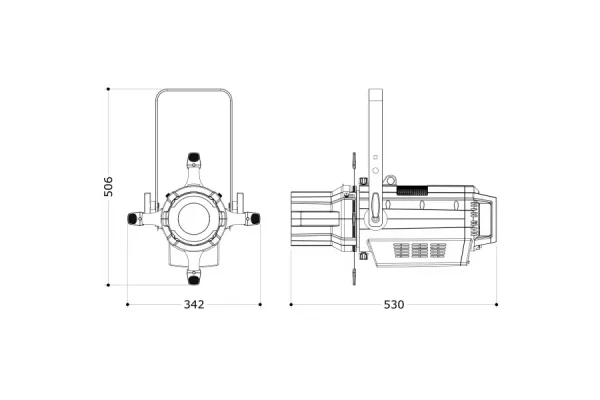

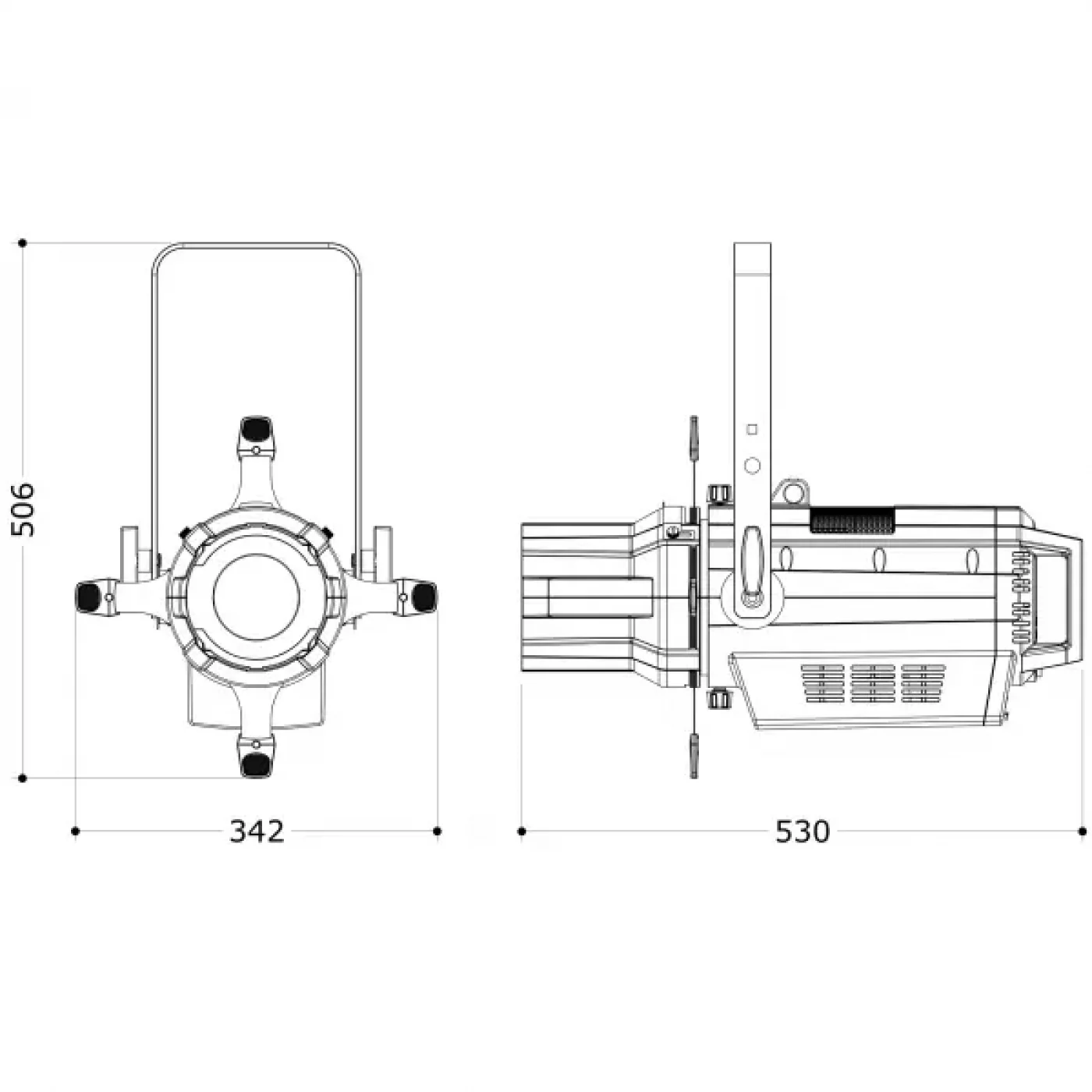

• Dimensions (WxHxD):

  342x506x530
  mm
• Weight:

  9,2
  kg

• Certifications / Approvals:
   CE, UKCA, RCM

• 1 x ECLHD
• 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
• User Manual
