The KLA Series brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products.
This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired.
KLA Power Module

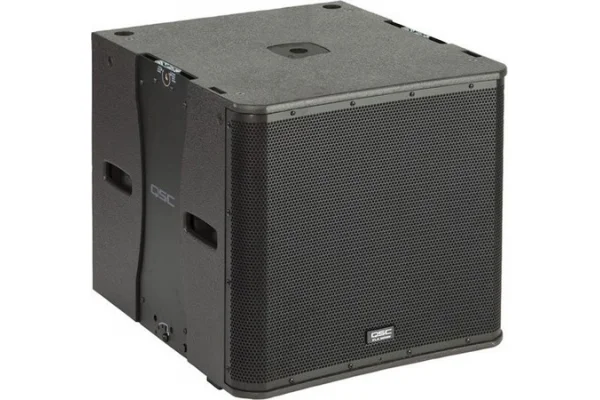

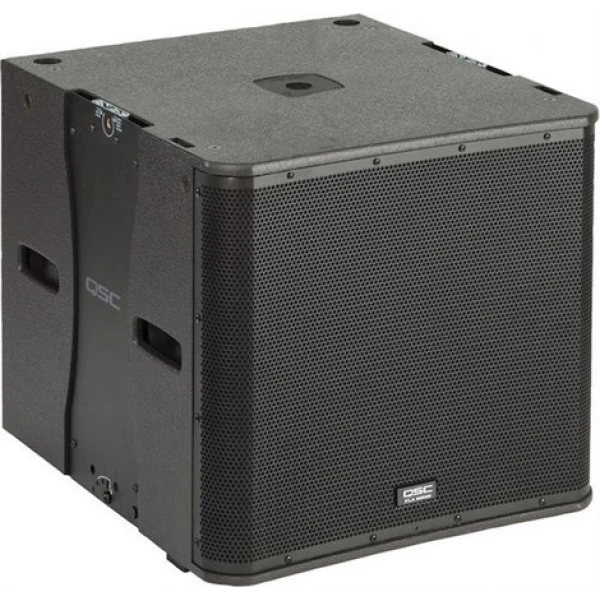

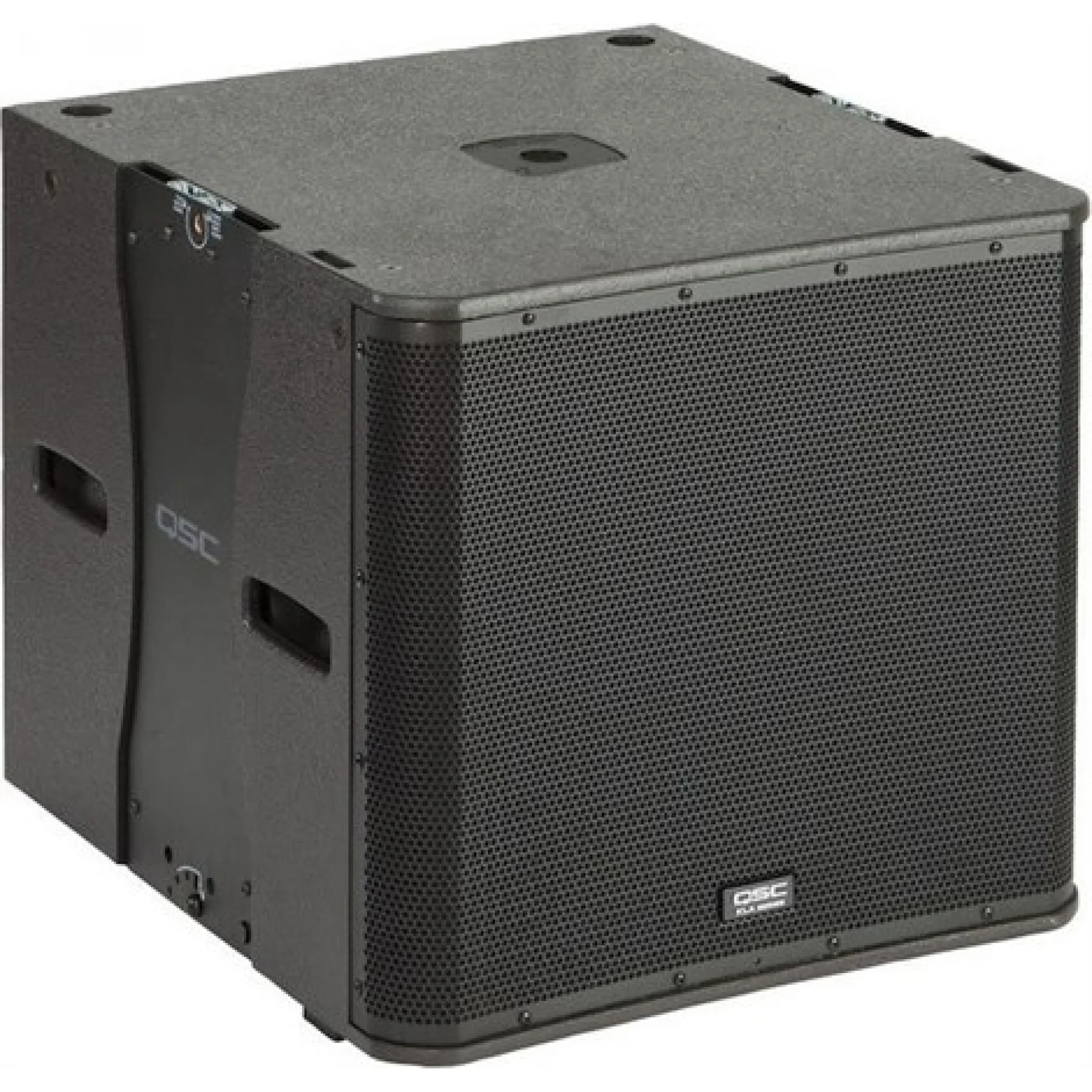

The KLA Series is comprised of two models, the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 watt by 500 watt power amp
KLA12 Power Module module and the KLA181 offers the same highly efficient power amp module in a 1,000 watt configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp, 120 volt electrical circuit.
KLA loudspeakers incorporate QSC s DEEP DSP algorithm - providing extended bass response by actively managing potentially damaging low-frequency transients - and GuardRail circuitry protection which prevents the amplifier module from unnatural and destructive clipping.
As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.
In an installed application, multiple KLA Series loudspeakers can be "daisy-chained" for total gain control from a single remote pot wired to the on-board Phoenix-style connector. Additional power module characteristics on KLA include a balanced, line-level XLR input in parallel with an XLR "Thru" connector, PowerCon In and Thru connectors, Attenuation Control and LED indicators for Signal, Limit, Power and Standby status.
500 W x 500 W power module
Rugged, ABS enclosure delivers light-weight durabilitySOLO Rigging System supports deployment without tools or external hardwareAr-Q Frequency Optimization quickly tunes the array with the click of a dial, adjusting for the appropriate number of boxes10:1 design factor supports arrays of up to 480 lbs. (218 kg) 5 x KLA12 and 2 x KLA18190 x 18 nominal coverage (requires only five boxes to configure a 90 x 90 array)High power, 12" low frequency driver provides extension down to 44Hz without subwoofersExtensive DSP further enhances and protects performance1.75" diaphragm compression driver delivers clear and powerful high-frequency reproductionpowerCON Input and Thru connections
Tilt-Direct pole mount assists directivity in single-unit applications
