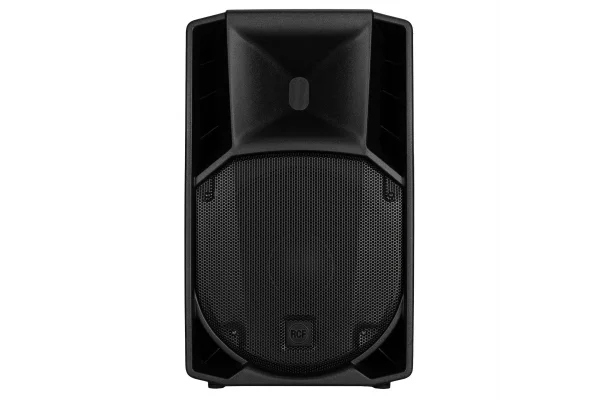

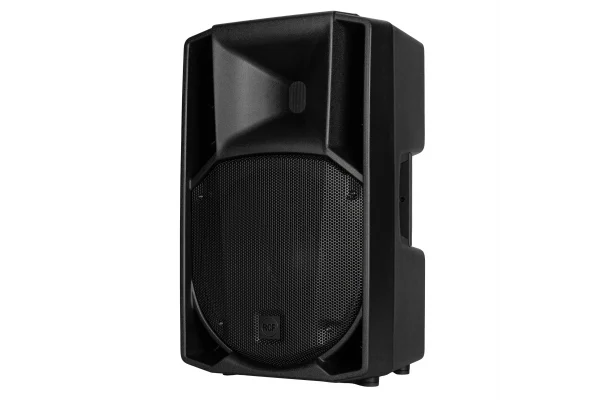

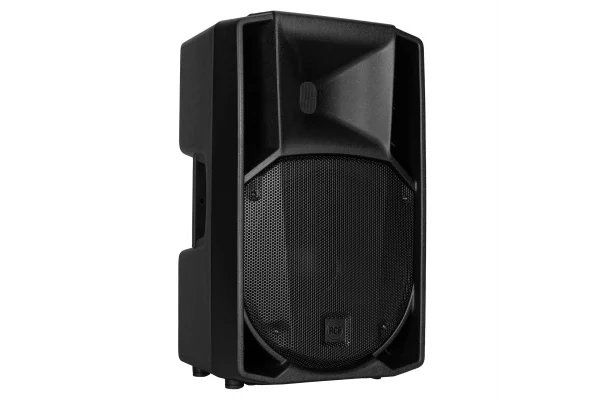

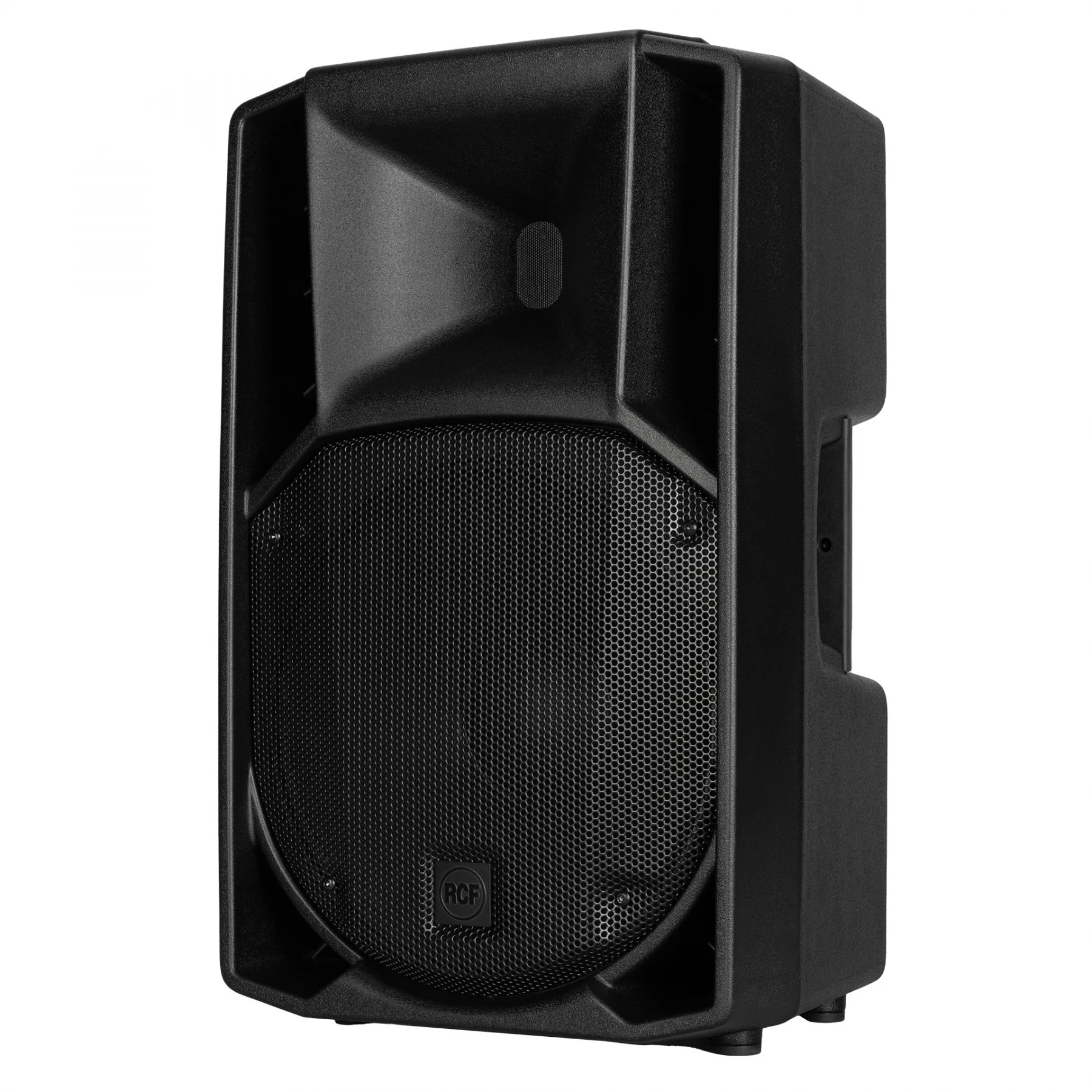

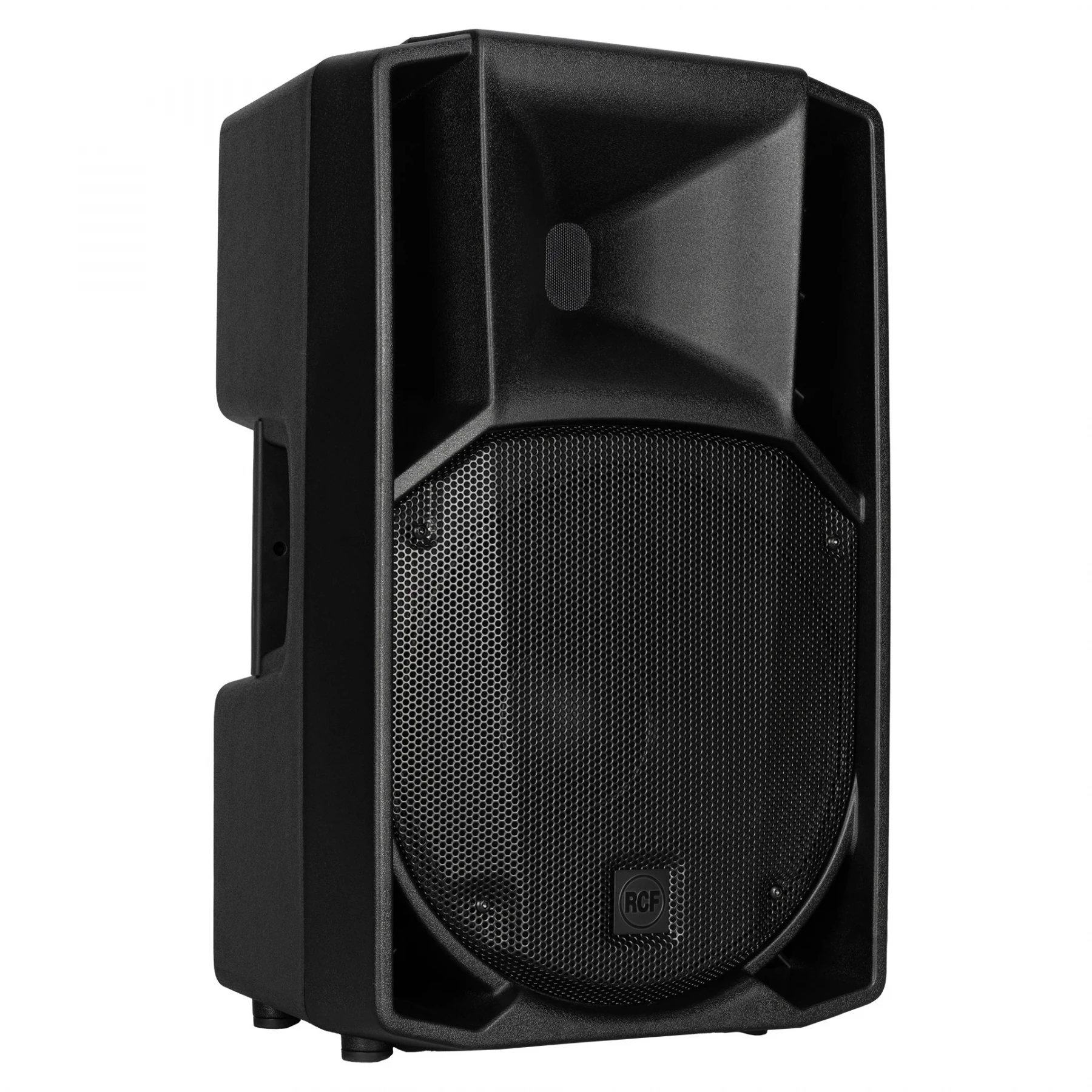

RCF ART 712-A-MK5 Serisi 12" Aktif Hoparlör XBOOST 1400 watt
FEATURES
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 12" Woofer

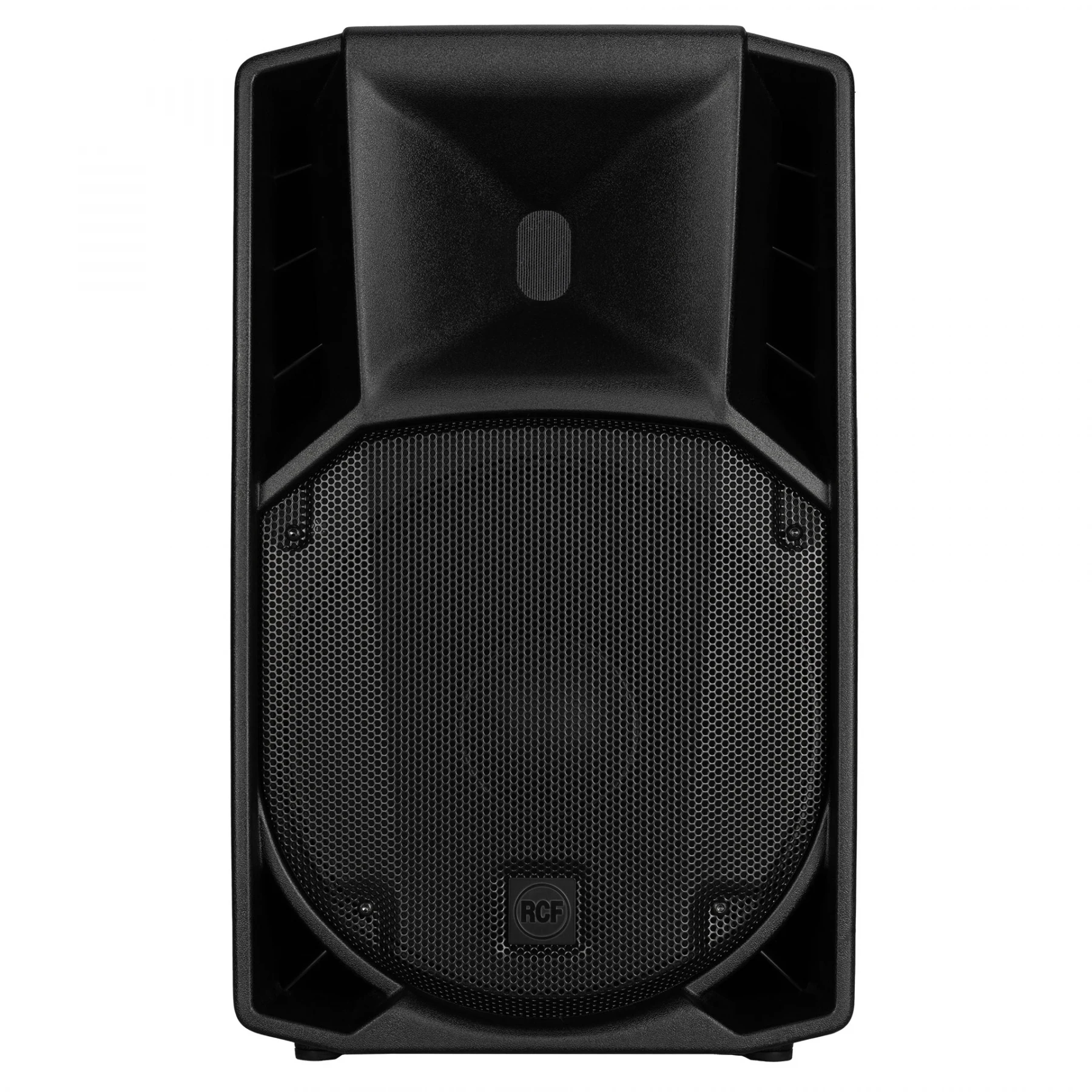

- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
- Yeni XBOOST Düşük Frekans Bass Güçlendirici yazılım.
ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB:50 Hz ÷ 20000 Hz
- Max SPL:129 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1", 1.75" v.c.
- Woofer Driver: 12", 2.5" v.c
- Woofer:12", 2.5" v.c.

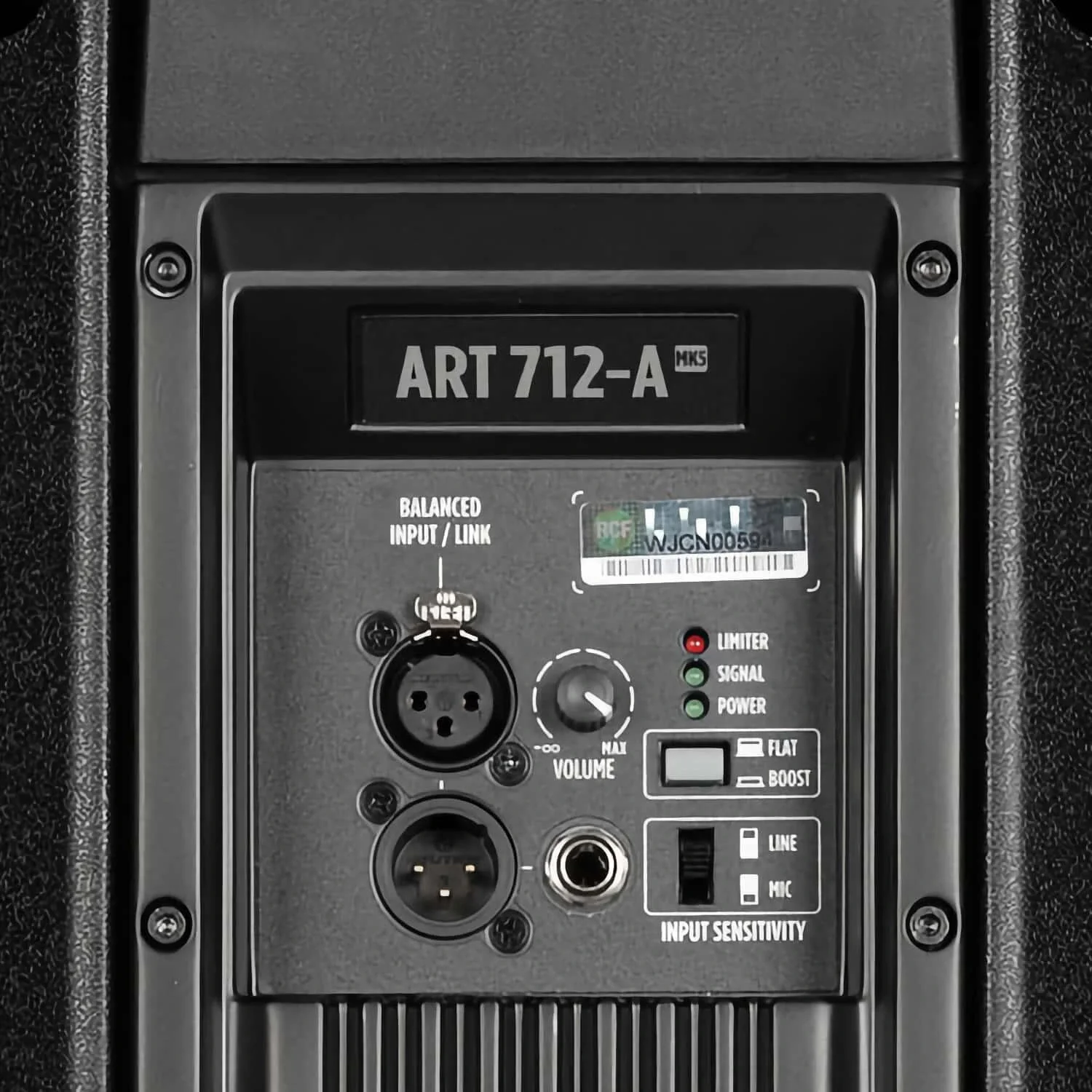

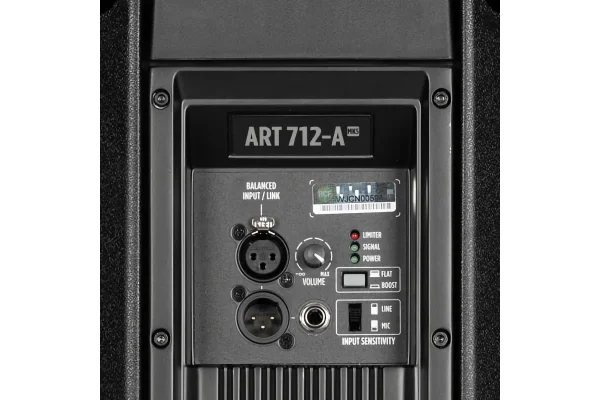

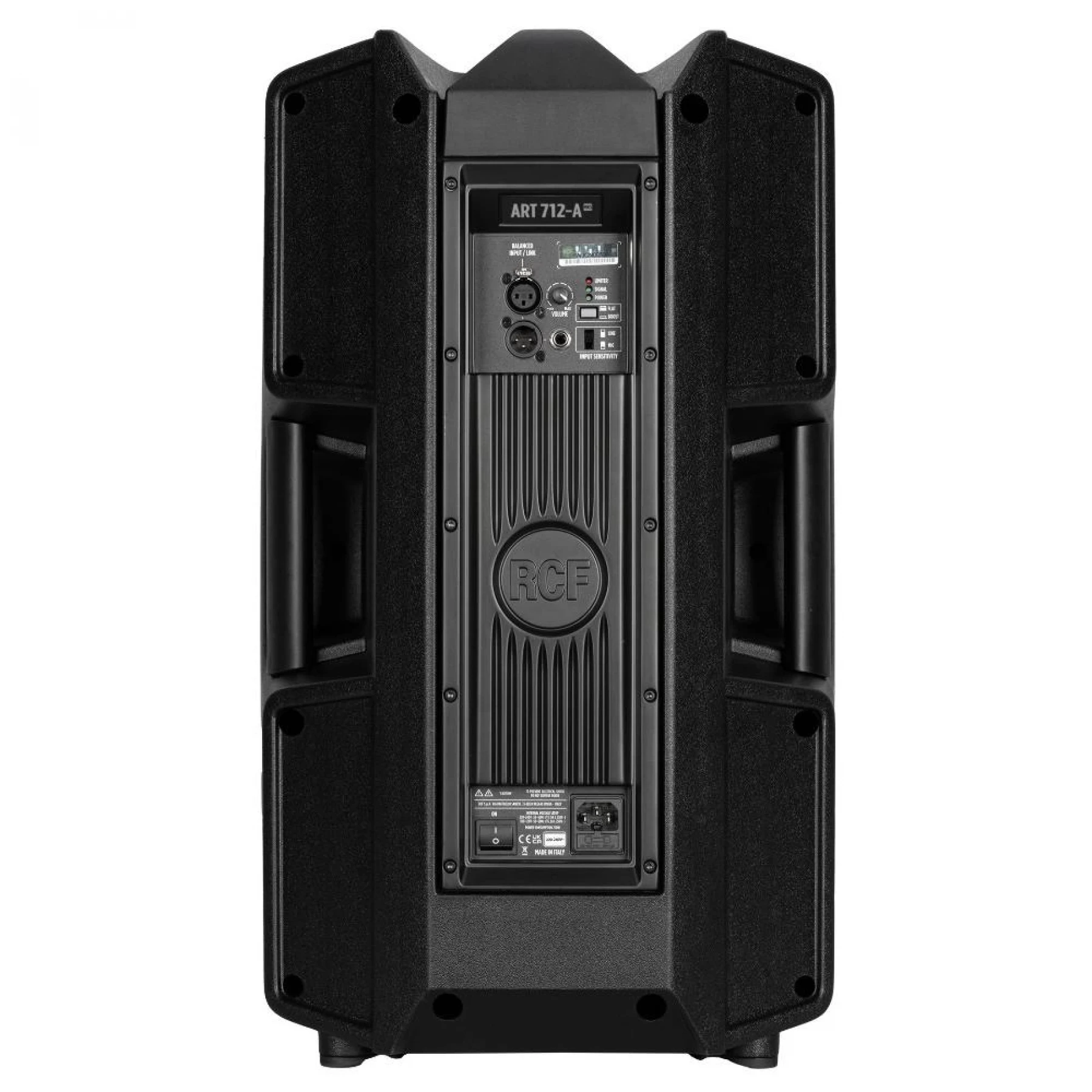

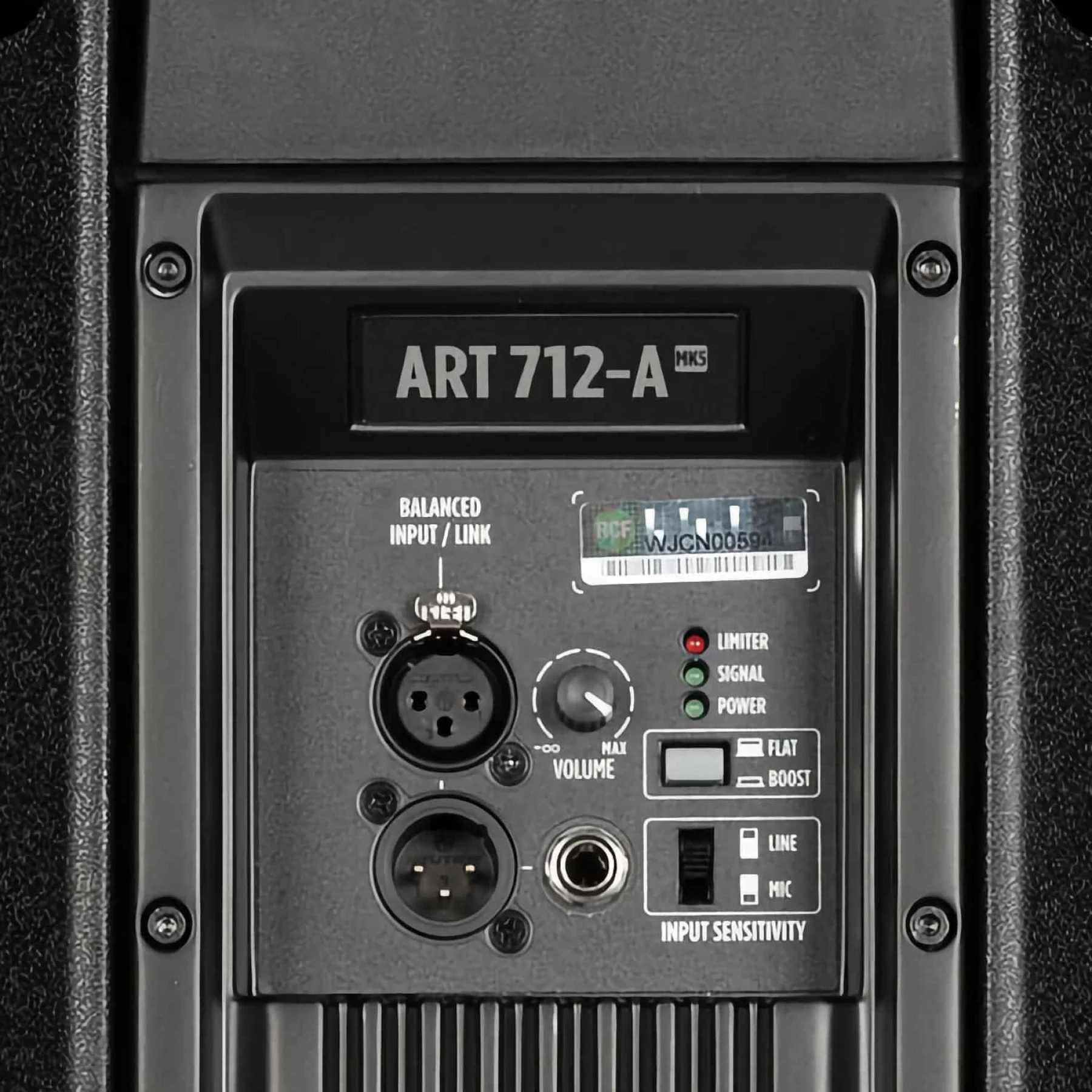

INPUT/OUTPUT SECTION
- Input signal:bal / unbal
- Input connectors:XLR, Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
- Crossover frequencies:1600 Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
- Total power:1400 W PEAK
- High frequencies:400 W PEAK
- Low frequencies:1000 W PEAK
- Total power:700 W RMS
- High frequencies:200 W RMS
- Low frequencies:500 W RMS
- Cooling:Convection / forced
- Connections:VDE connector in
CABINET
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p .

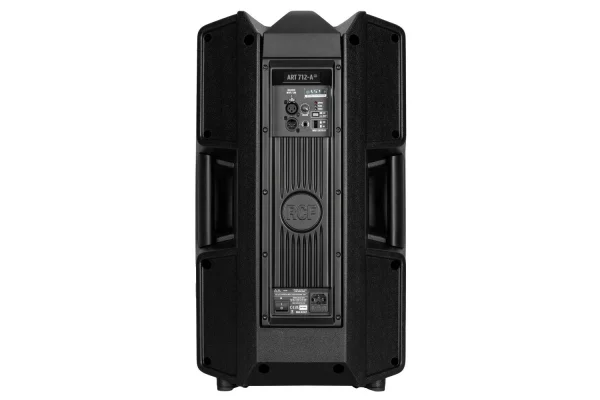

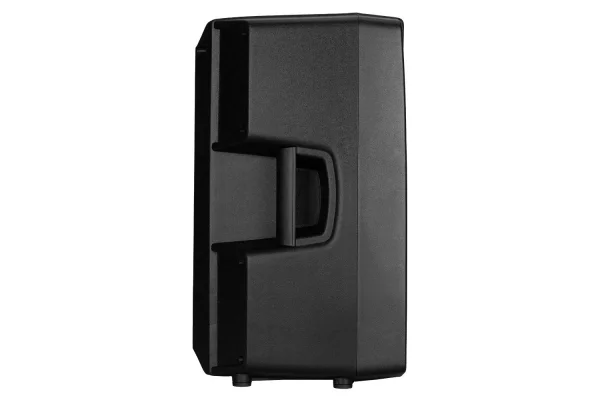

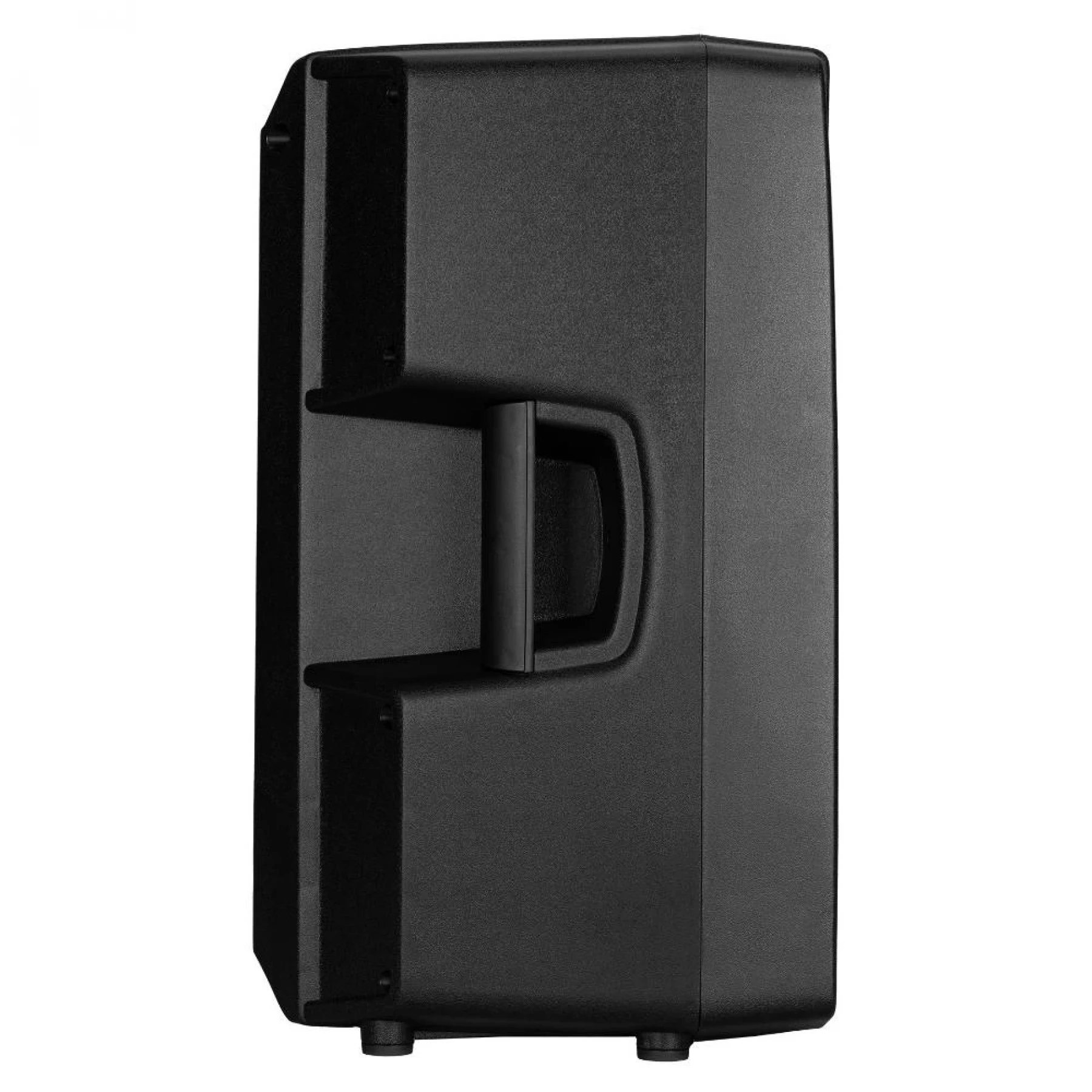

- Handles:2 side, 1 top

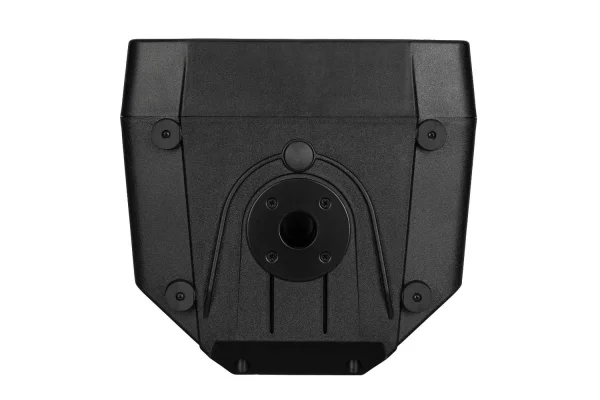

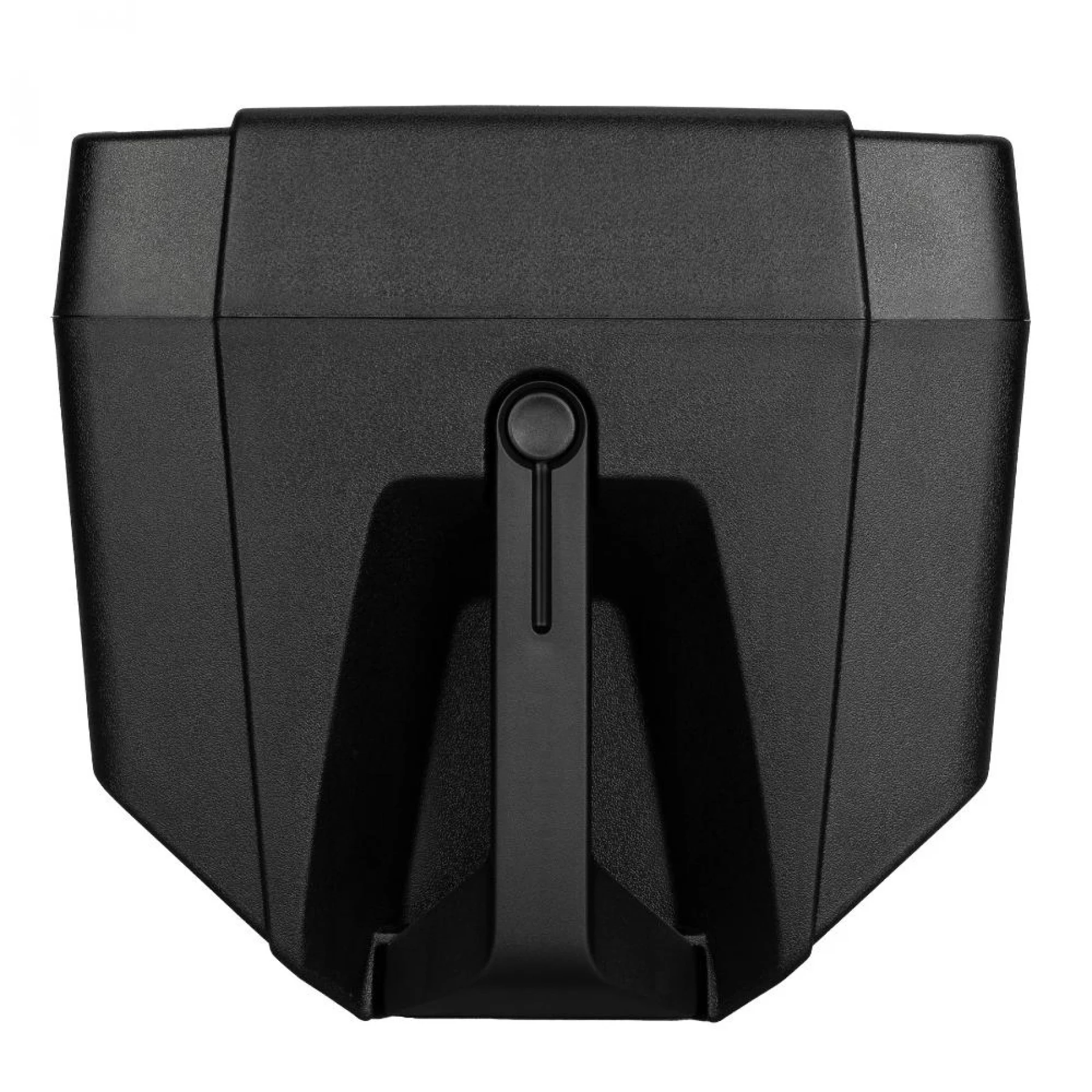

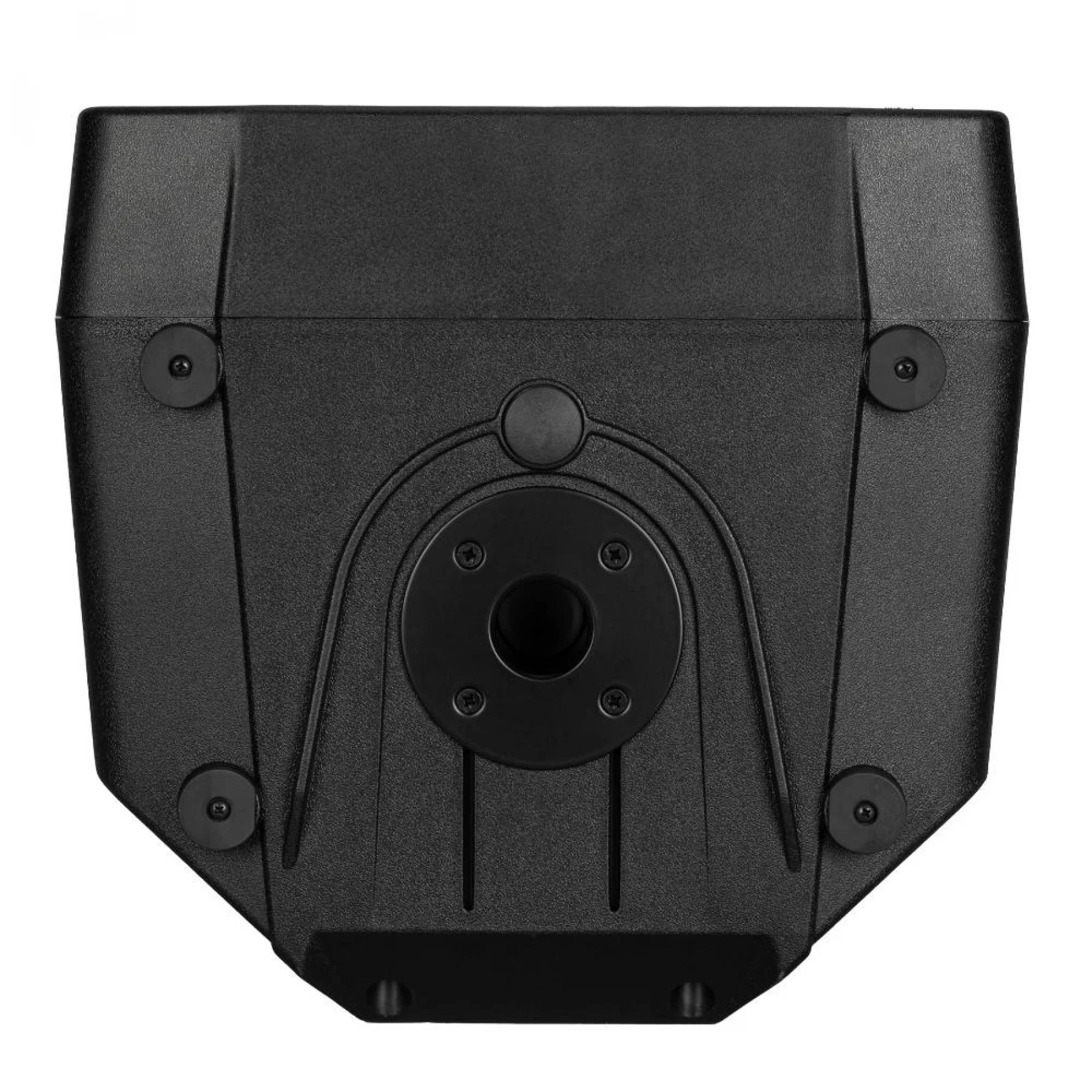

- Pole Mount/Cap:Yes
- Colour:Black
PHYSICAL SPECIFICATIONS
- Height:637 / 25.0 mm/inch
- Width:387 / 15.2 mm/inch
- Depth:363 / 14.2 mm/inch
- Net Weight:18 / 39.6 kg/lbs
