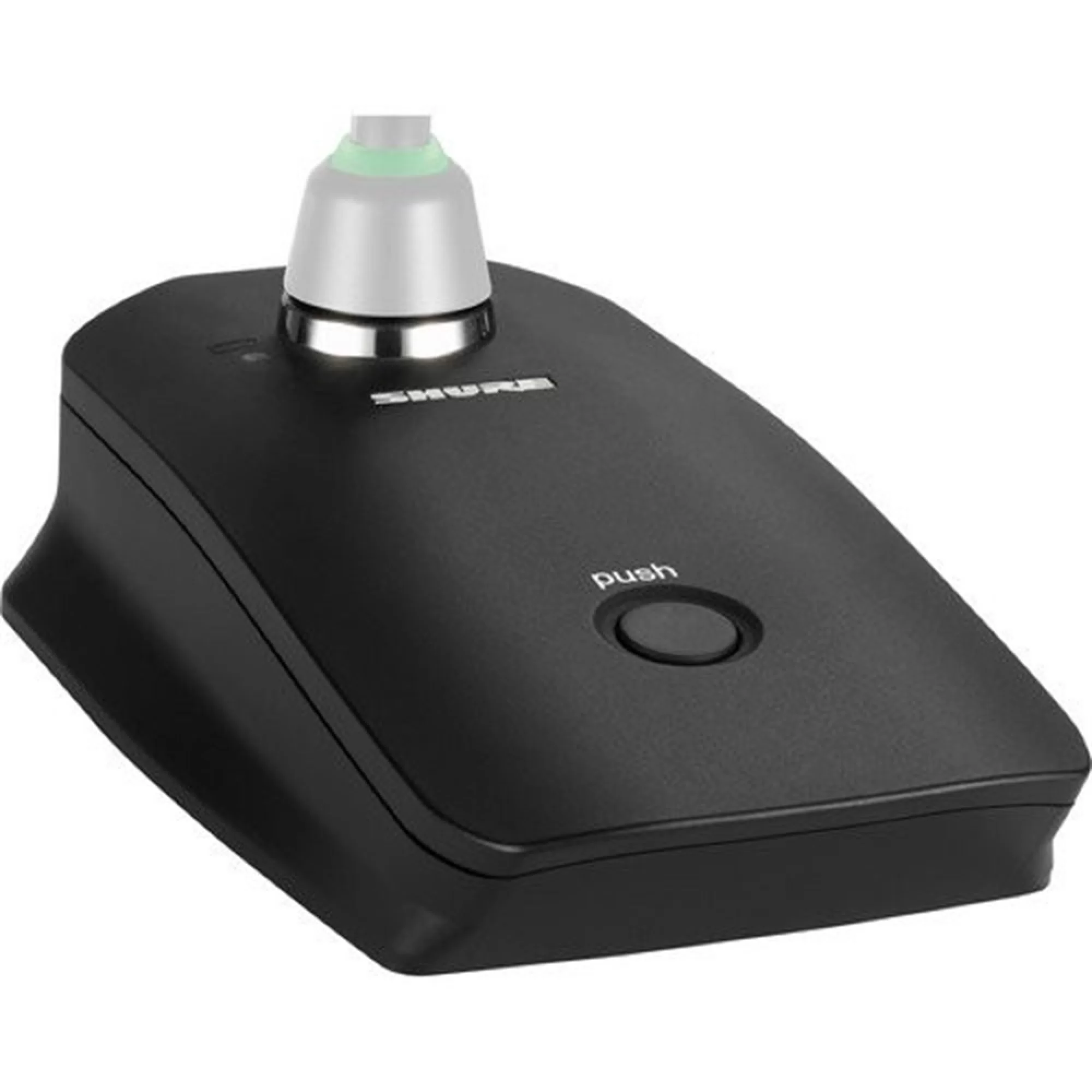

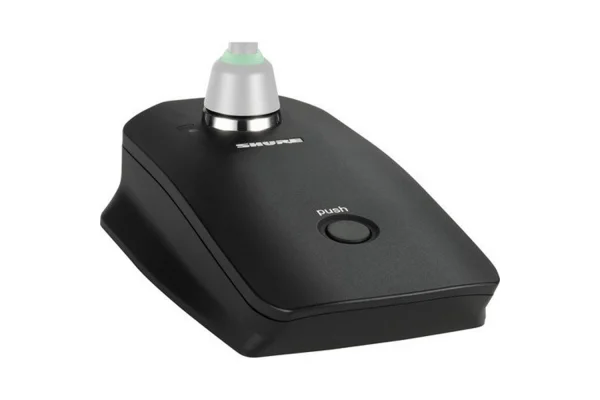

The MXW8 Gooseneck Base Transmitter from Shure is a bi-directional base transmitter for optional gooseneck microphones and is compatible with Shure s Microflex wireless system. The unit has an earphone output that allows you to monitor return audio, useful for translations or programming material. It is capable of AES 256-bit encryption audio transmission to assure a secure signal. It is powered by a built-in rechargeable battery that can provide up to 8 hours of operation.
Gain Adjustment Range | -25 to 15 dB (in 1 dB steps) |
Maximum Input Level | −9 dBV (mic gain @ -16 dB) |
Headphone Output | 1/8" (3.5 mm) dual mono (will drive stereo headphones) |
Output Power | Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω) |
Antenna Type | Internal, spacial diversity, linear polarization |
Battery Type | Rechargeable Li-Ion |
Battery Life | Up to 9 hours (Calculated with a new battery. Runtimes vary depending on battery health) |
Charge Connector | USB 3.0 Type A |
Housing | Molded plastic |
Temperature Range | Recommended for Storage: 32 to 77°F (0 to 25°C) |
Connector | 6-pin connector for Shure MX405/10/15 |
Configuration | Unbalanced |
Input Impedance | >20 kΩ (@ 1 kHz) |
Dimensions (HxWxD) | 1.4 x 2.8 x 4.9" (36 x 71 x 124 mm) |
