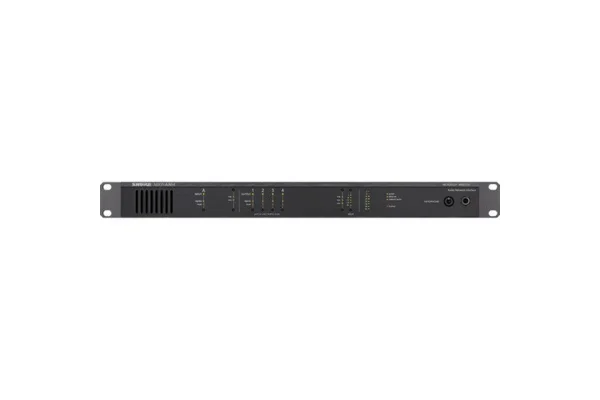

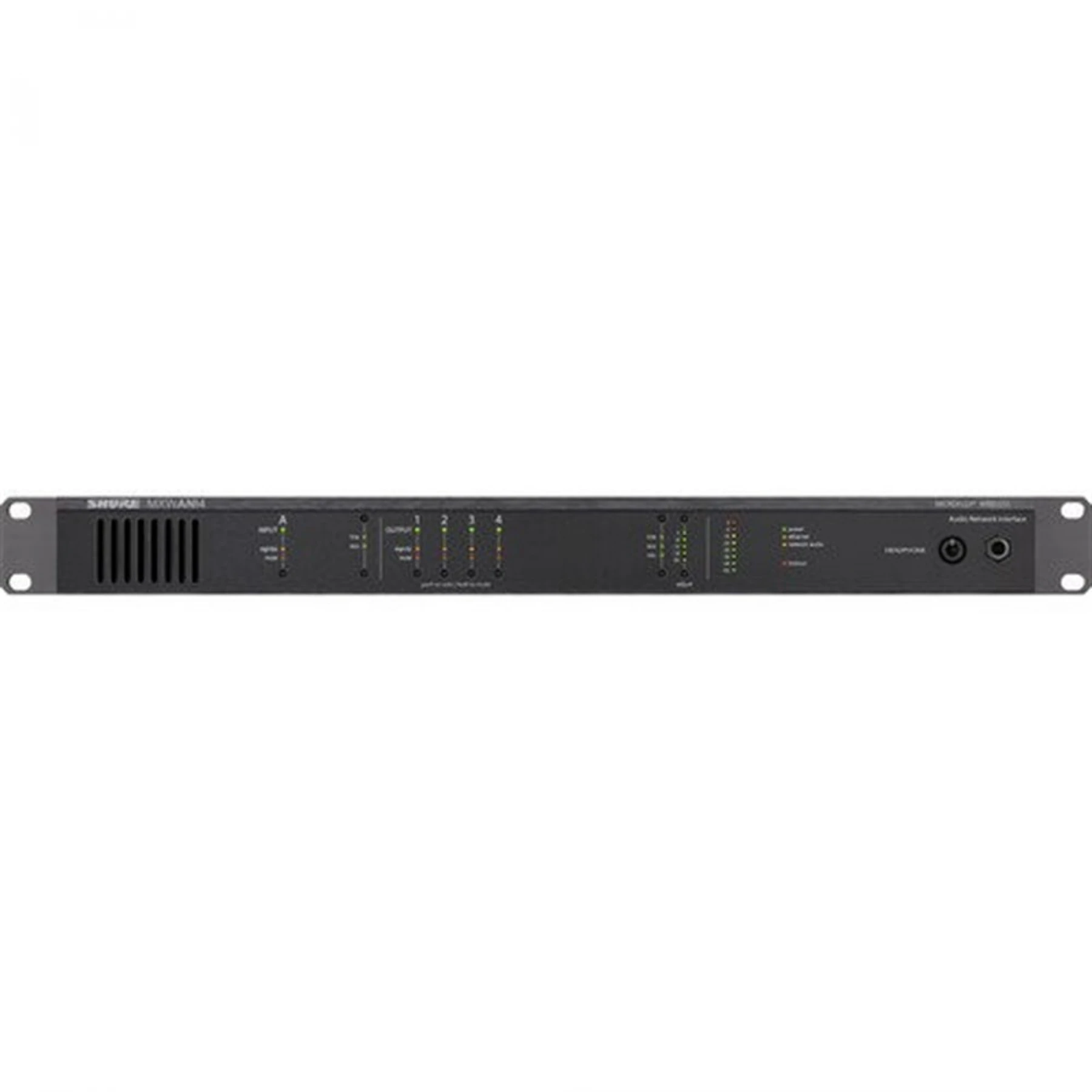

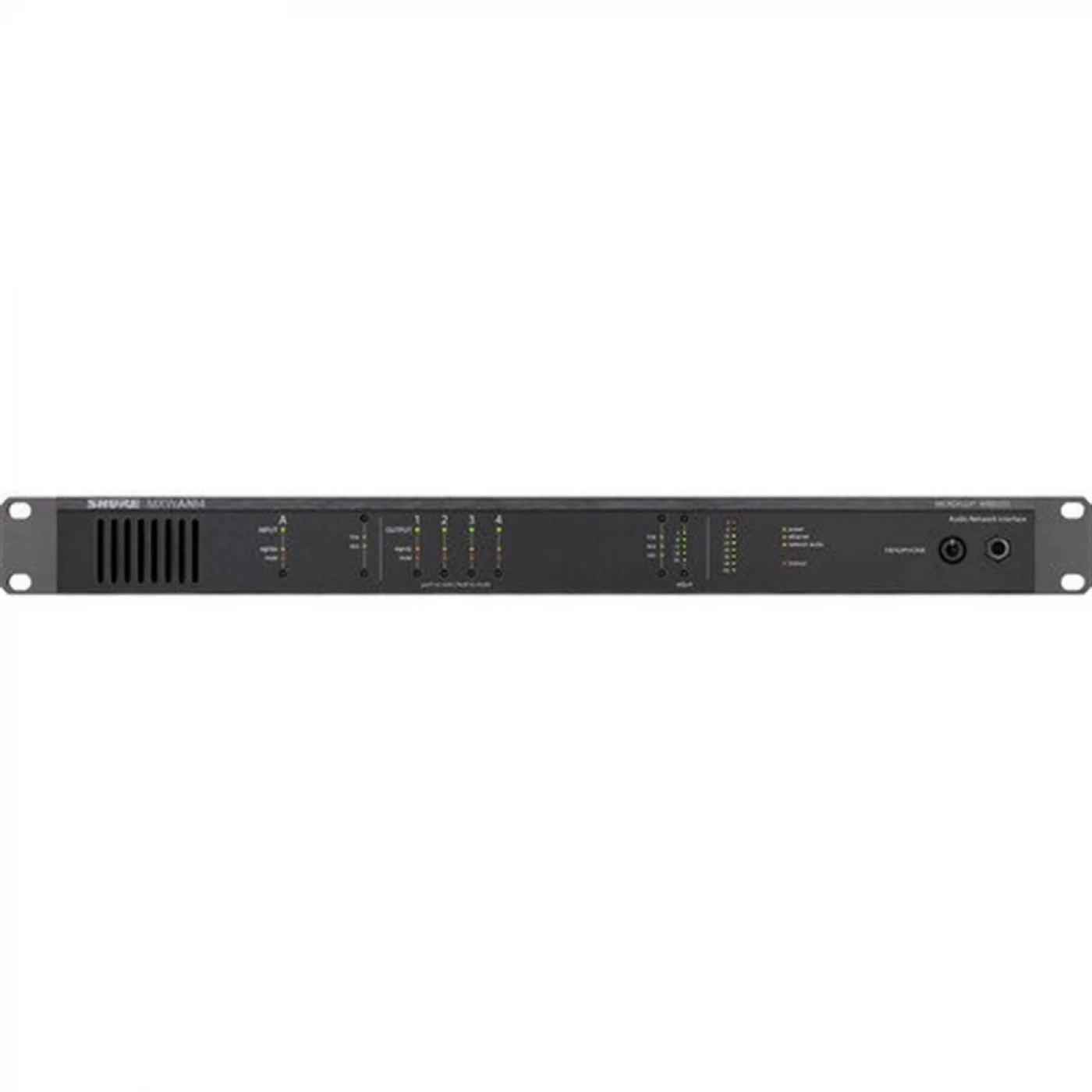

Name: SHURE Mxwanı4 4-Kanal Audio Ağ Arabirim
Brand: Shure
SKU: SHURE Mxwanı4

SHURE Mxwanı4 4-Kanal Audio Ağ Arabirim

Barkod: 2242005560211

Marka: Shure

Kategori: Transmitter El Tipi

Hızlı Gönderi

The MXWANI4 4-Channel Audio Network Interface from Shure is designed to connect and distribute Shure s Microflex wireless system to conference room AV systems. It is Dante network compatible and features 4 analog outputs as well as a 4-port gigabit Ethernet switch. The MXWANI4 can be controlled through either its front-panel or through a networked Mac or PC running the Microflex Wireless Control software.

The unit can provide power over Ethernet (PoE) through its first port, allowing you to power such components as the Microflex MXWAPT transceiver. You can monitor your audio via the front-panel 1/4" headphone output.

Four port gigabit switch: Optimized port configurations for connection to the Access Point Transceiver and Networked Charging Stations, third party control systems, and corporate networks
Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a corporate network
Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for simplified installation
Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the network for security and to reduce bandwidth
Front panel controls: Mute or solo channels and set input/output levels easily from the front panel
PC/Mac software control: Access the Microflex Wireless Control Software from a networked computer for input/output levels and port configuration
Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other Dante-equipped device
Headphone output: Solo audio signal on any channel

Audio
Frequency Response	20 Hz to 20 kHz
Dynamic Range	Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical) Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
Output Noise	Line: −84.5 dBV (20 Hz to 29 kHz, A-weighted, typical) Aux: −95.2 dBV (20 Hz to 29 kHz, A-weighted, typical) Mic: −106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
THD + N	< 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
Polarity	Non-inverting, any input to any output

İnputs
Configuration	Active balanced
Impedance	10.6 kΩ
Clipping Level	Line: 23.8 dBV (minimum) Aux: 10.8 dBV (minimum)

Outputs
Configuration	Active balanced
Impedance	310 Ω
Clipping Level	Line: 26.2 dBV Aux: 16.2 dBV Mic: −3.8 dBV
Headphone Output	1/4" (6.3 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)

DSP
