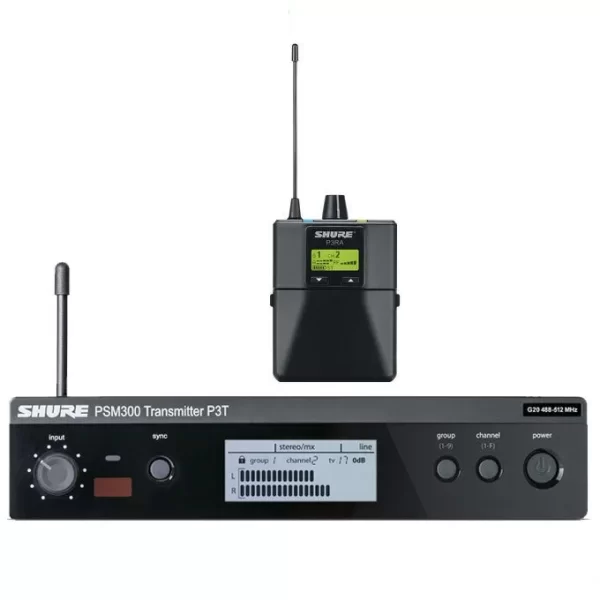

Shure P3TRA215CL in-ear system
- UHF Wireless Monitoring
- Includes P2T Transmixer
- Includes P2R Beltpack Receiver
- Includes SE215 Sound İsolating In-Ear Headphones
|
| RF Carrier Frequency Range | Varies with Country or Locale |
| Selectable Channels | 8 |
| Compatible Channels | 4 |
| Operating Range | Up to 300 (90.9 m) |
| Frequency Response | 30Hz to 12kHz, (+0, -3db @ 1kHZ) |
| Signal-to-Noise Ratio | 80dB Typical |
| Channel Separation | No (Mono System) |
|
| RF Output Power | 30mW (+15dBm) |
| Frequency Selection | Push to Select Button |
| Frequency Indicators | LED Displays Selected Frequency, 1-8 |
| Antenna | External 1/4 Wavelength, Semi-rigid, Permanently Mounted |
| Audio Input Connectors | Combined 1/4" and XLR Left and Right |
| Nominal Input Level | -25dBu at 1/2 Volume |
| Maximum Input Level | -5dBu at 1/2 Volume |
| Input Pad Switch | No |
| Phantom Power Protection | Yes, up to 52VDC |
| Loop In/Out Connectors | No |
| Loop I/O Nominal Input Level | No |
| Loop I/O Maximum Input Level | No |
| Limiting | Built-in, Fixed Threshold |
| Power Requirements | External Power Supply, 120VAC |
| Dimensions (WxDxH) | 8.6 x 5.6 x 1.7" (218 x 142 x 43mm) |
| Weight | 13 oz (369g) |
|
| RF Indicator | LED |
| Channel Scan Mode | Yes |
| Frequency Selection | Push Button Select and Increment |
| Antenna | Attached Flexible Whip |
| Power Requirements | 9V Battery |
| Battery Life | Approx 4 hours; Varies According to Volume Level and Type, Quality and Output Level of Earphones |
| Battery Status Indicator | LED |
| Limiting | Built-in, Fixed Threshold |
| Equalization | No |
| Personal Mix Control | HI or LO Gain Switch and Volume Knob |
| Dimensions (HxWxD) | 4.8 x 2.9 x 1.25" (122 x 73 x 32mm) |
| Weight | 3.52 oz (100g) |
SE215 Sound İsolating In-Ear Headphones
| Sensitivity | 107 dB SPL/mW |
| lmpedance | 20 Ω |
| Frequency Range | 22Hz – 17.5kHz |
| Cable Style | 64” Detachable (at ear) with wireform fit |
| Colors | Available in Clear or Translucent Black |
| Speaker Type | Dynamic MicroDriver |
