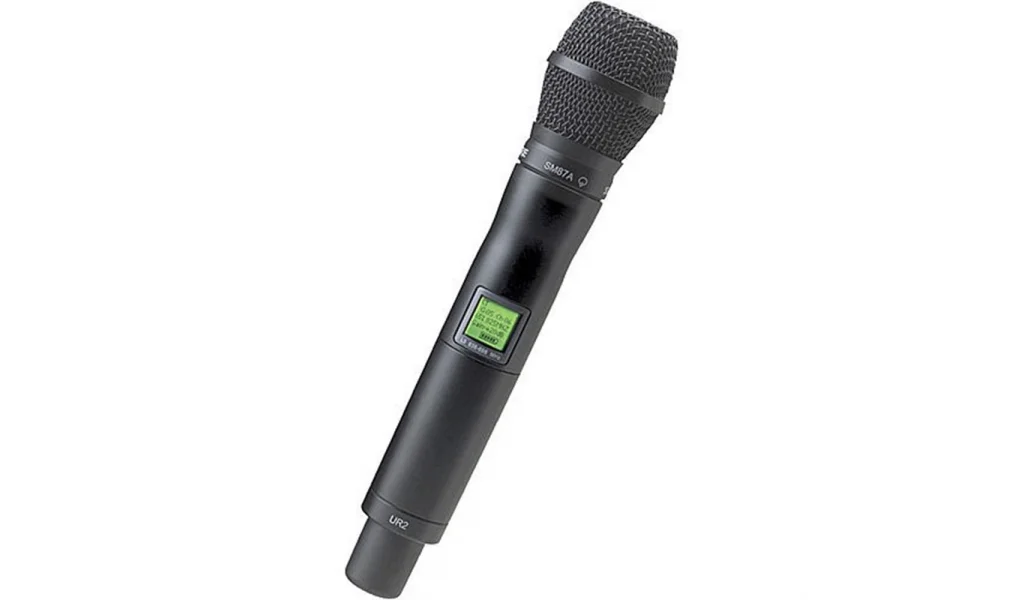

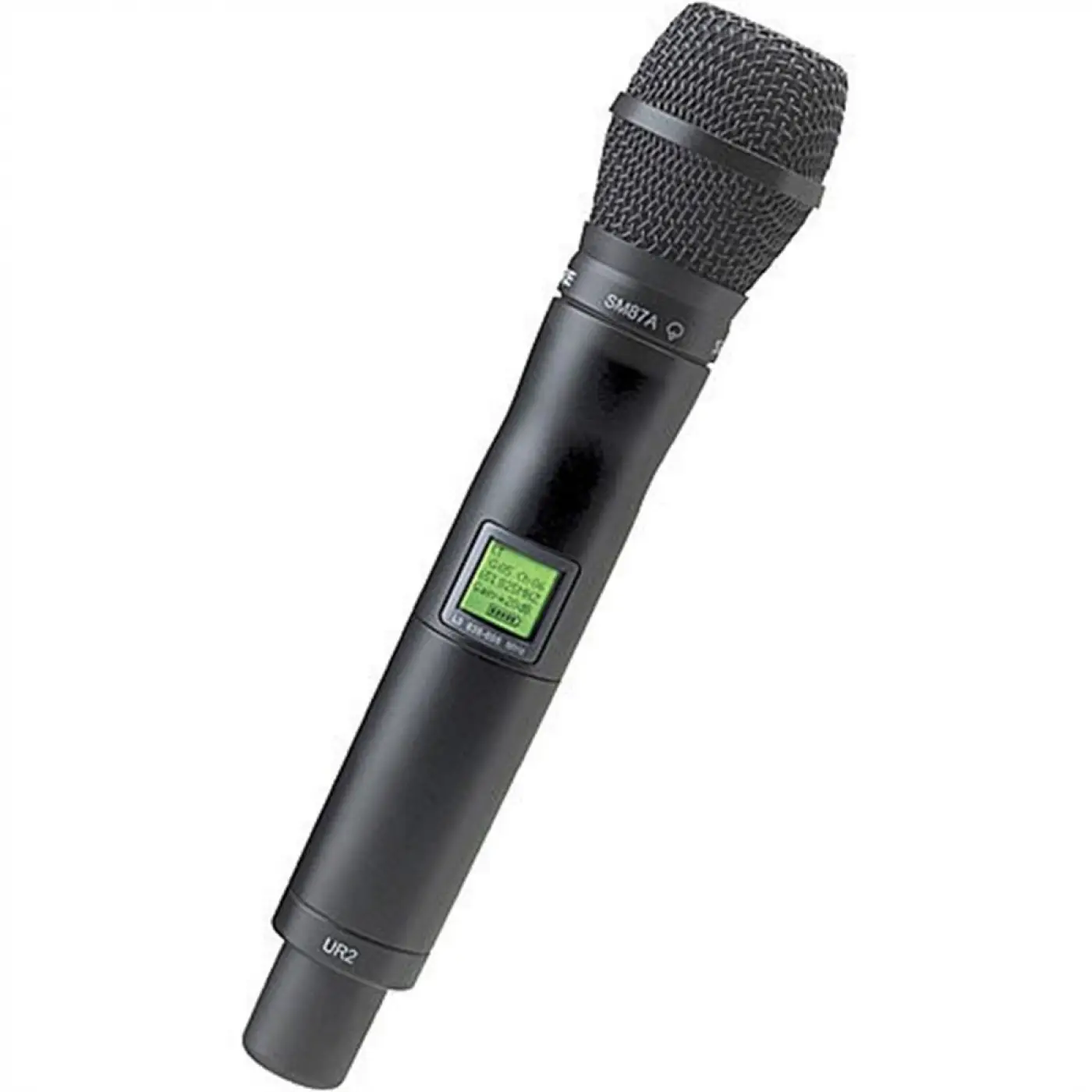

Shure UR2/SM87 Handheld Transmitter
Intended for use with the Shure UHF-R series, the UR2 Handheld Transmitter is rugged and designed to withstand the rigors of daily use on the road. The transmitter is available with Shure SM58, SM86, SM87A, Beta 58, Beta 87A, KSM9 and Beta 87C capsules. 10 or 50 mA switchable output power provides extended range whenever necessary. The UR2 features a backlit LCD display and is powered up to 9 hours on 2 AA alkaline batteries (low RF power).
- SM87 Capsule
- The SM87 features a supercardioid polar pattern for maximum rejection against feedback and residual noise.
-
- J5 - 554 / 638 Mhz
- L3 - 638 - 698 Mhz
- G1 - 470 / 530 Mhz
- H4 - 518 / 578 Mhz
| Type of Transmitter | UR2 UHF Frequency Agile Handheld (x2) |
| # Of Channels | 2400 Selectable Frequencies Across 60 MHz Bandwidth |
| Type of Input Connector | Not Applicable, Handheld Transmitter |
| Type of Microphone | SM87 |
| Polar Pattern | Supercardioid |
| Interchangeable Mic Heads | No |
| Frequency Response | 40Hz to 18kHz +/- 1dB |
| Battery Type/Approx. Life | 1.5V AA Alkaline Batteries x2
9.5 hours (low power)
6 hour (high power) |
| Mute Switch | Not Specified by Manufacturer |
| Level Control | Gain: -10dB to +20dB |
| Antenna Type | Flexible Antenna |
| Display | Backlit LCD |
| Dimensions (LxDiameter) | 10.27 x 2" (261 x 51mm) |
| Weight | 12.6 oz (356g) |
