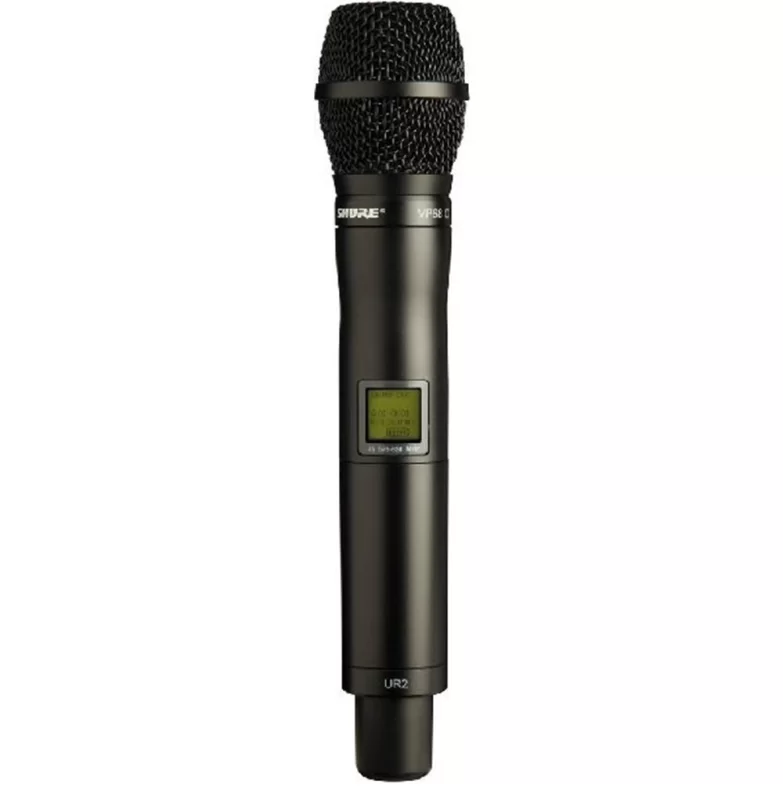

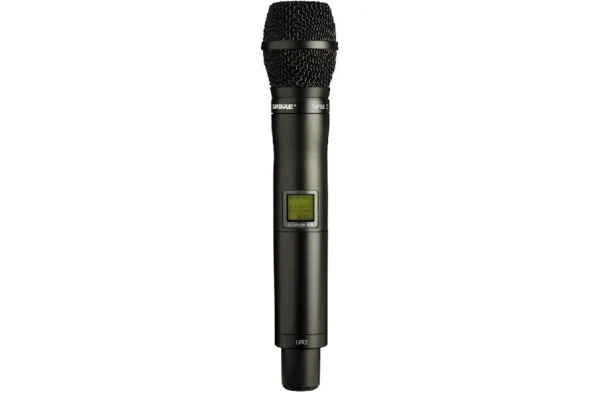

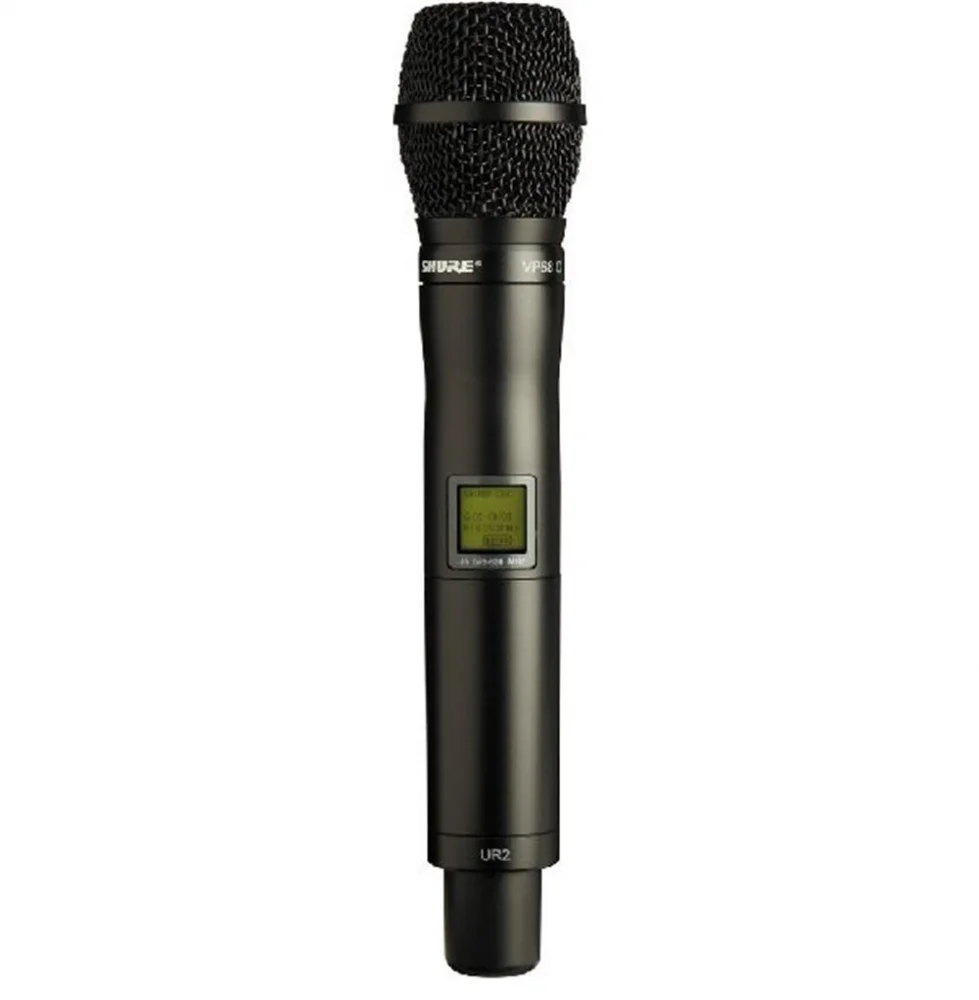

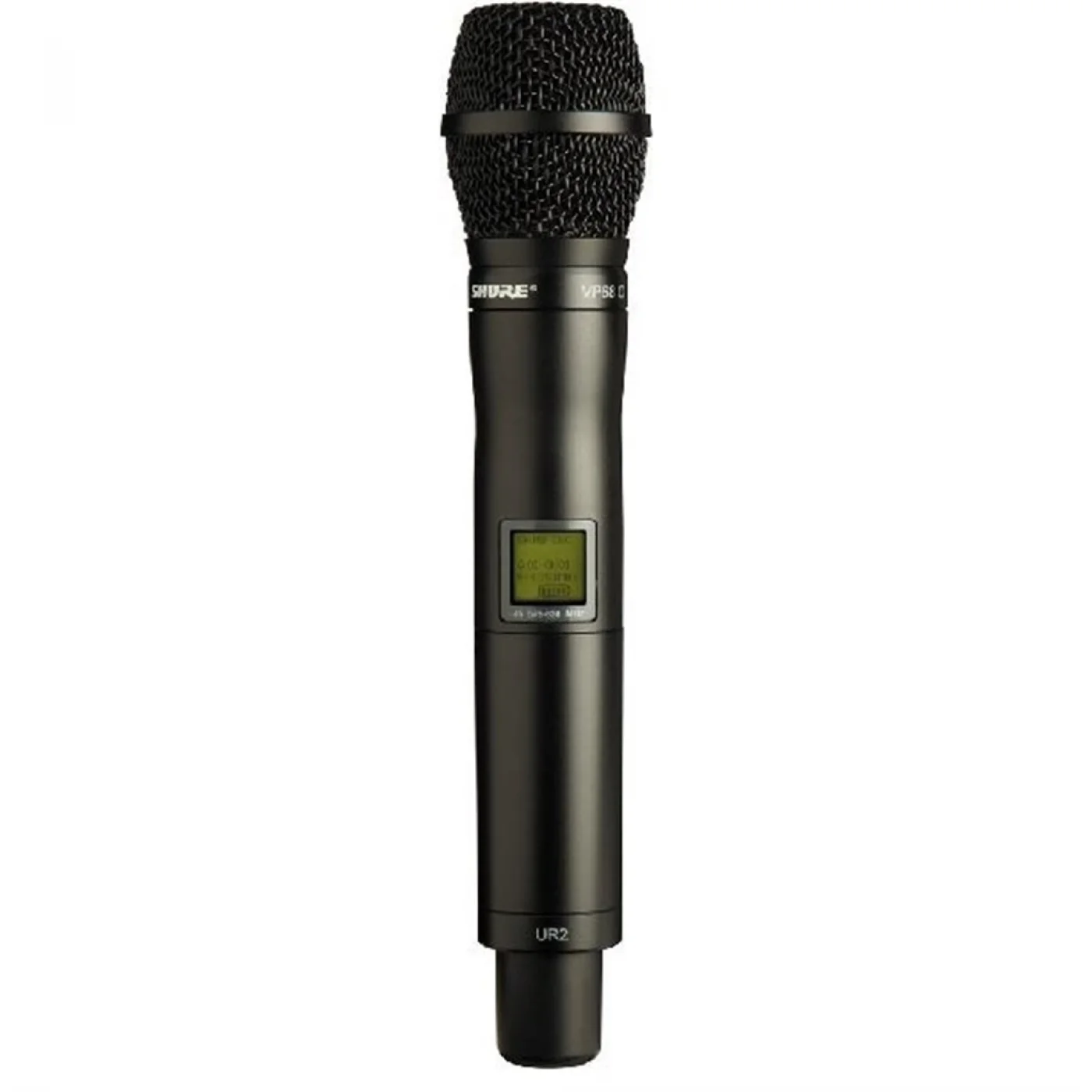

The UR2 Handheld Transmitter with VP68 Omnidirectional Mic Capsule from Shure is designed for use with Shure s UHF-R wireless systems
| Transmitter | |
|---|---|
| Gain Adjustment Range | -10 dB to 20 dB |
| Maximum Input Level | 4.8 dBu |
| Input Impedance | 1 MΩ |
| Output Impedance | 50 Ω |
| RF Power Output | 10 mW or 10/50 mW (region dependent) |
| Housing | Aluminum Die-Cast Handle and Aluminum Machined Battery Cup |
| Power Requirement | 2x AA Alkaline Lithium or NiMH Batteries |
| Battery Life | 8 Hours (Typical) |
| Dimensions (Ø x L) | 2 x 10" (51 x 254 mm) |
| Microphone | |
|---|---|
| Type | Electret (Charged Back Plate), Shock Mounted Element |
| Polar Pattern | Omnidirectional |
| Frequency Response | Flat from 100 Hz to 4 kHz 3 dB down @ 80 Hz 6 dB up @ 7 kHz 3 dB up @ 10 kHz Tolerance: +/- 2.5 dB from 50 to 150 Hz; +/- 2 dB from 150 Hz to 5 kHz; +/- 3.5 dB from 5 to 10 kHz |
| Maximum SPL | 136 dB |
| Pop Filter | 2-stage |
| Grille | Steel wire mesh with Teflon coating |
| Length | 2.9" (76 mm) |
| Weight | 5.2 oz (148 g) |
