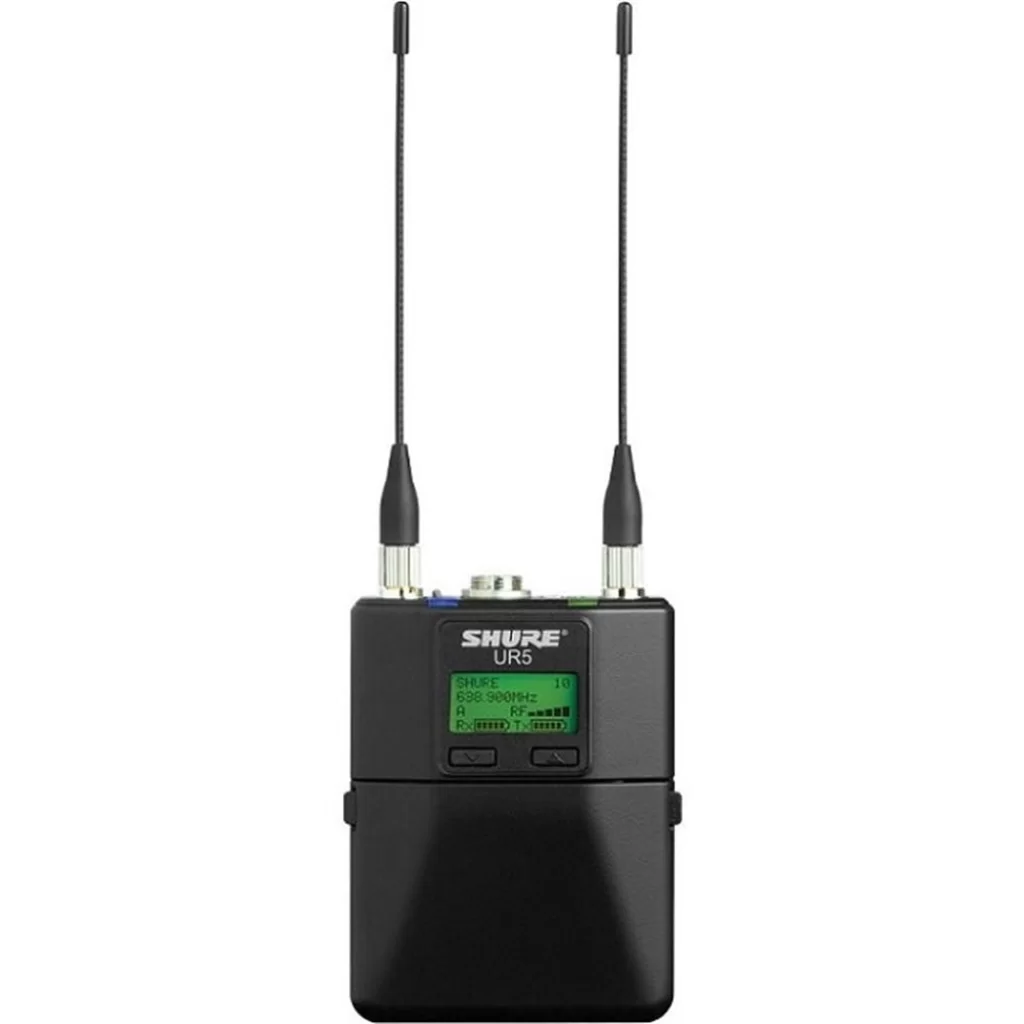

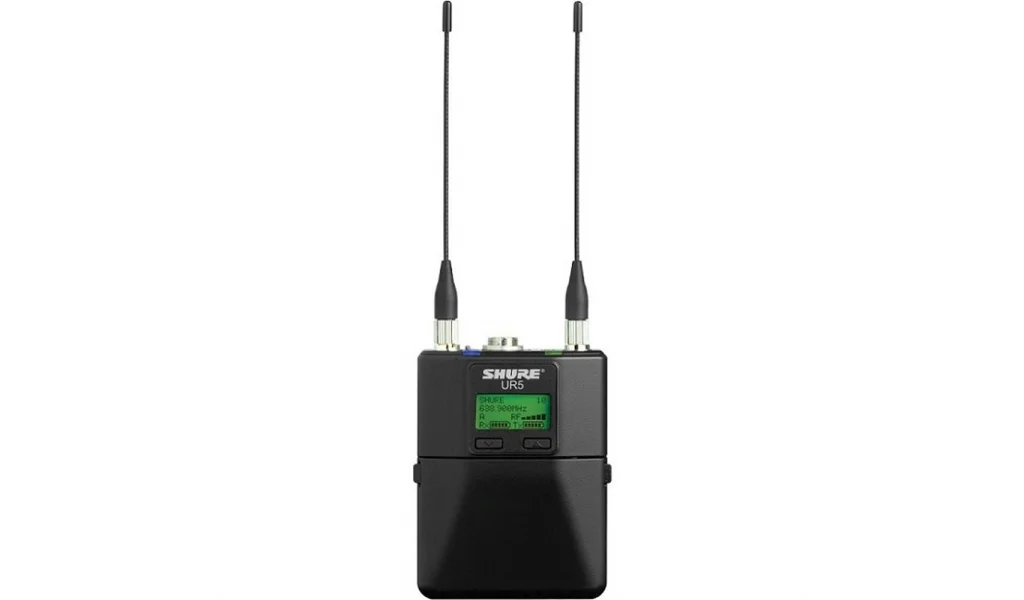

The Shure UR5 Portable Diversity Receiver features Shure s UHF-R Class Technology and is well suited for professional wireless microphone applications in ENG / EFP, broadcast, sound design, film and much more. The portable UR5 is capable of 2400 selectable UHF frequencies over the 60MHz bandwidth, full bandwidth scan and sync, Audio Reference Companding for crystal clear sound, and a transmission range of up to 492 (150m) line-of-sight.
UHF-R Wide-Band Tuning
2400 selectable frequencies across 60 MHz bandwidth
Full bandwidth scan & sync: Scan results displayed on receiver
Audio Reference Companding for crystal-clear audio
Transmission range of up to 150 meters (line of sight)
MTx (Multi-Transmitter) Mode
Populate a group of multiple transmitters with separate frequencies in available spectrum
Store transmitter & frequency information on UR5 for quick recall
Use UR5 to "hot-swap" between up to 20 transmitters at the touch of a button
Mounting Options
Camera shoe mount (included)
Stand strap mount (included)
Anton/Bauer mounting accessories (available separately)
DC Power
12V DC power insert
AFP521DC Anton/Bauer plate mounting accessory distributes DC power to UR5 from camera
2 AA Batteries (5+ hours)
Intended as backup option
Additional Features
Headphone monitoring output jack
Tone generator
Mic & Aux-level balanced output
Feature-rich, hands-on navigation control with backlit LCD screen
| Carrier Frequency Range | 470-952 MHz (varies by region) |
| Modulation | FM, ±45 kHz maximum deviation |
| Antenna | Switching diversity |
| Dynamic Range | >100 dBm=, A-weighted |
| RF Sensitivity | -106 dBm for 12 dB SINAD, -88 dBm for 30 dB SINAD |
| Image Rejection | >100 dB (typical) |
| Spurious Rejection | >80 dB (typical) |
| Squelch Threshold | 30 dB SINAD (±3 dB) normal setting |
| Channels | Per band: 40 (band dependent) |
| Tuning | 60-72 MHz (band dependent) |
| Frequency Stability | ±2.5 ppm |
| Pilot Tone | UHF-R® Mode: 32 kHz tone key pilot |
| Frequency Response | 50Hz - 16kHz |
| Audio THD + Noise | (ref. ±20 kHz deviation @1 kHz) < 0.4% THD (typical) |
| Signal-to-Noise Ratio | 90dB (typical) |
| Compandor System | Patented Shure Audio Reference Companding |
| Audio Outputs | Camera Output Electronically balanced Configuration: mono, TA3 Maximum output power: adjustable -35dBV to +10dBV peak Pin Assignment: Pin 1 = Gnd, Pin 2 = Hot, Pin 3 = Cold Headphone Output Adjustable range Configuration: Unbalanced mono (L=R), 1/8" Minimum load impedance: 9.5 ohms Impedance: 3.5 ohms Maximum output power: 100mW Pin Assignment: Tip = Hot, Ring = Hot, Sleeve = Gnd |
| Operating Temperature | 0°to +135° F (-18°C to +57°C) |
| Battery Life | 4 hours AA Alkaline 8 hours Shure Rechargeable Lithium Ion |
| Weight | 7.05oz (200g) (with AA batteries) |
| Dimensions | 3.26 x 2.55 x 0.88" (83 x 65 x 22mm) |
