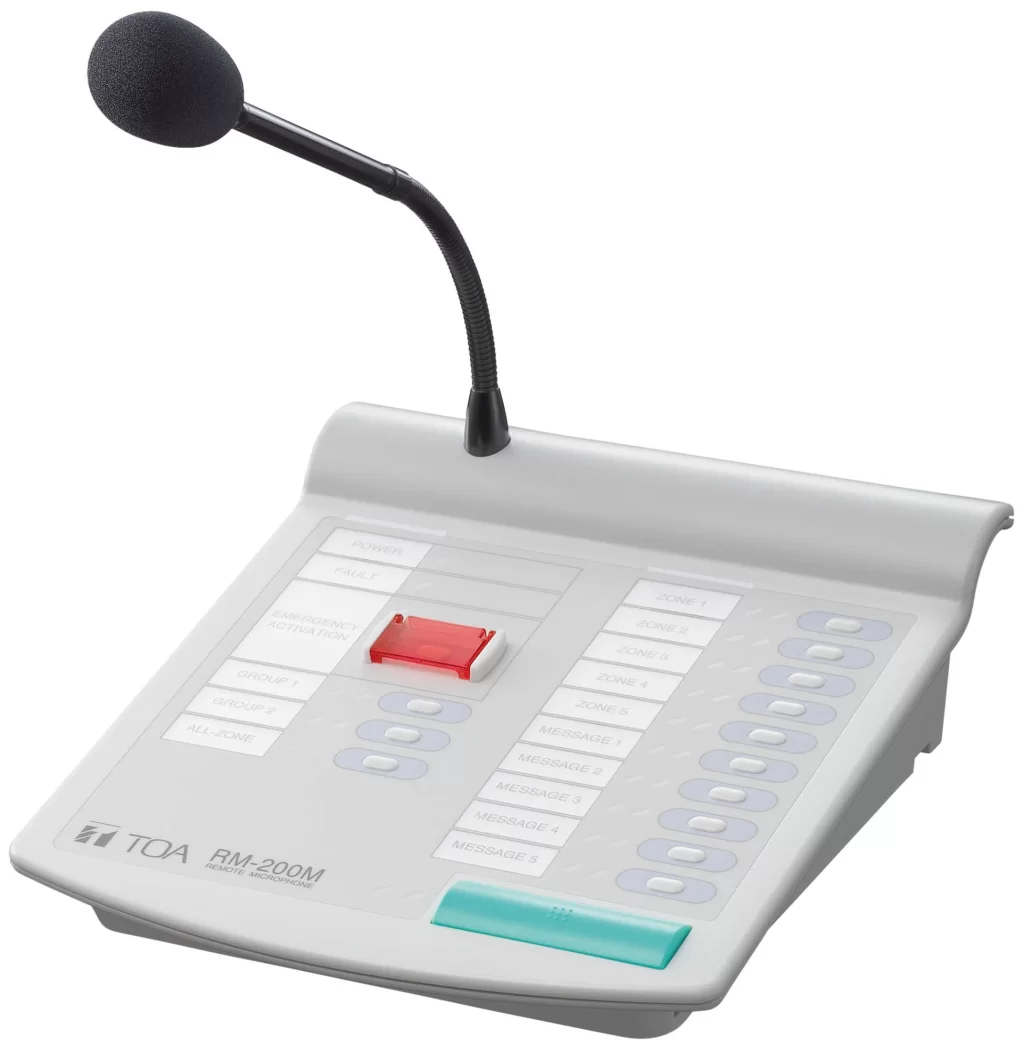

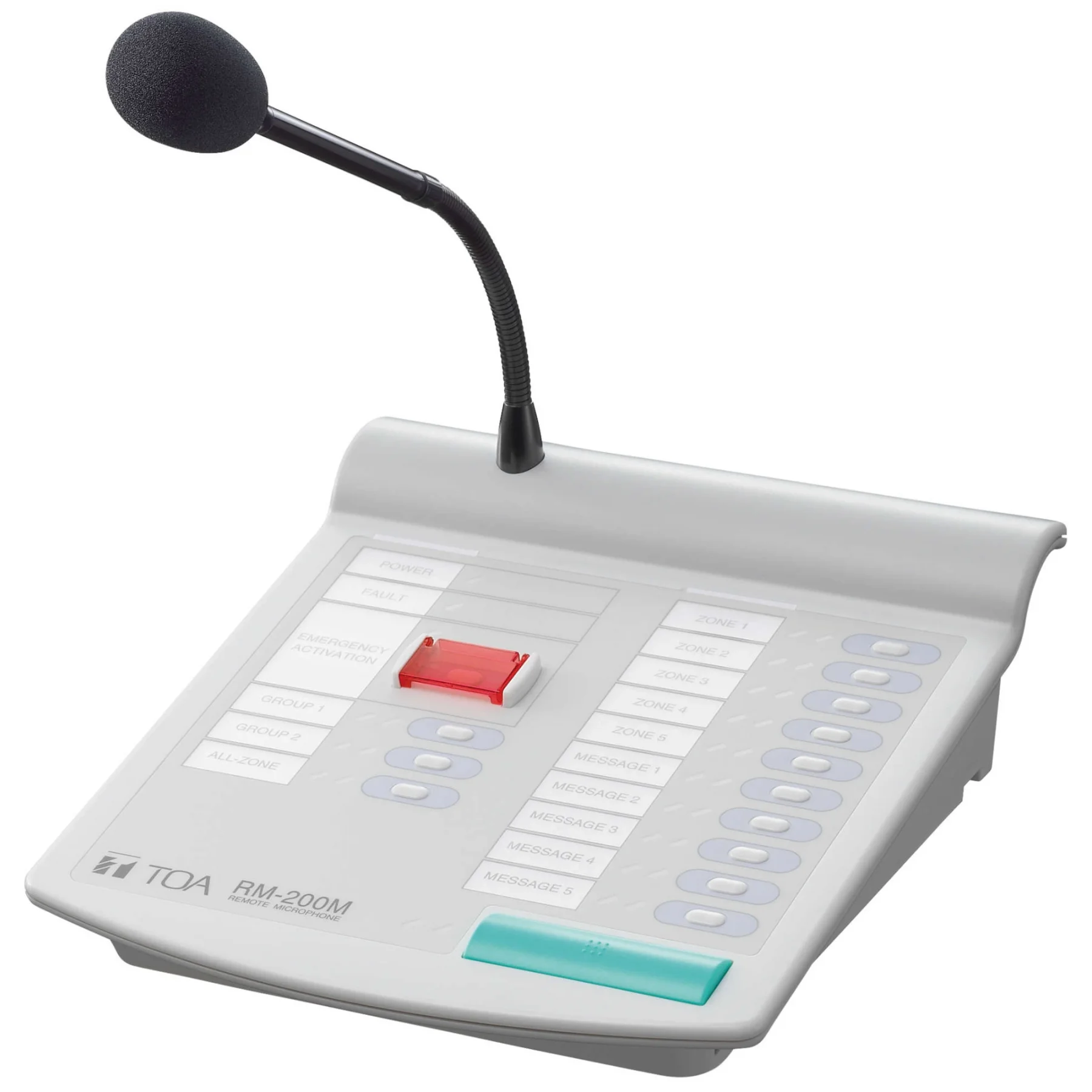

RM-200M Uzaktan Mikrofon, acil/genel yayın duyuruları yapmak amacıyla VM-3240VA, VM-3360VA, VM-2120 ve VM-2240'a bağlanır.
- 11 tuş, 10 serbestçe atanabilen fonksiyon tuşu
- Bölge, grup ve tüm çağrıları çağrıştırma ve önceden kaydedilmiş mesajları etkinleştirme
- Dahili sıkıştırma devresi sayesinde olağanüstü netlik ve bozulmadan uzaklık
- Sistem yönetim amplifikatörü başına 4 RM-200M'ye kadar
- Toplam 800 m'ye kadar kablo uzunluğu
Power Requirement | 24 V DC (12-30 V DC),(Supplied from VM-2000/VM-3000 Amplifier or local power suppy.) |
Distortion | Less than 1% |
Frequency Response | 100 - 10,000 Hz |
Distortion | Less than 1% |
Signal-to-Noise Ratio | More than 60 dB |
Audio Output | 0 dB*1, 600 Ω, balanced |
Microphone | Unidirectional electret condenser microphone, gooseneck type. |
Speaker Zone Control | Zones 1-5 (Zones 1-10 with 2 stacked amplifiers) Groups 1-2, and All-Zone Broadcast |
Emergency Broadcast | Activation of Emergency Broadcast (pre-recorded announcement*2 or live microphone announcement) by Emergency Switch |
Voice Announcement Board Control | Activation of 5 messages*2 |
Number of Connectable Units | Up to 4 |
Communication System | RS-485 |
Volume Control | Microphone volume control |
Connection Cable and Connector Category | 5 STP cable, RJ45 connector |
Communication Distance | 800 m maximum in total |
Finish | ABS resin |
Dimensions | 190 (W) × 75.7 (H) × 21.5 (D) mm (Gooseneck microphone excluded) |
| *1 0 dB = 1 V
*2 An optional EV-200 Board must be mounted in the VM-2120 or VM-2240 Amplifier |
