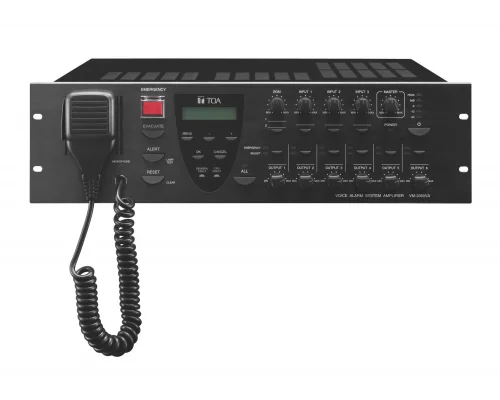

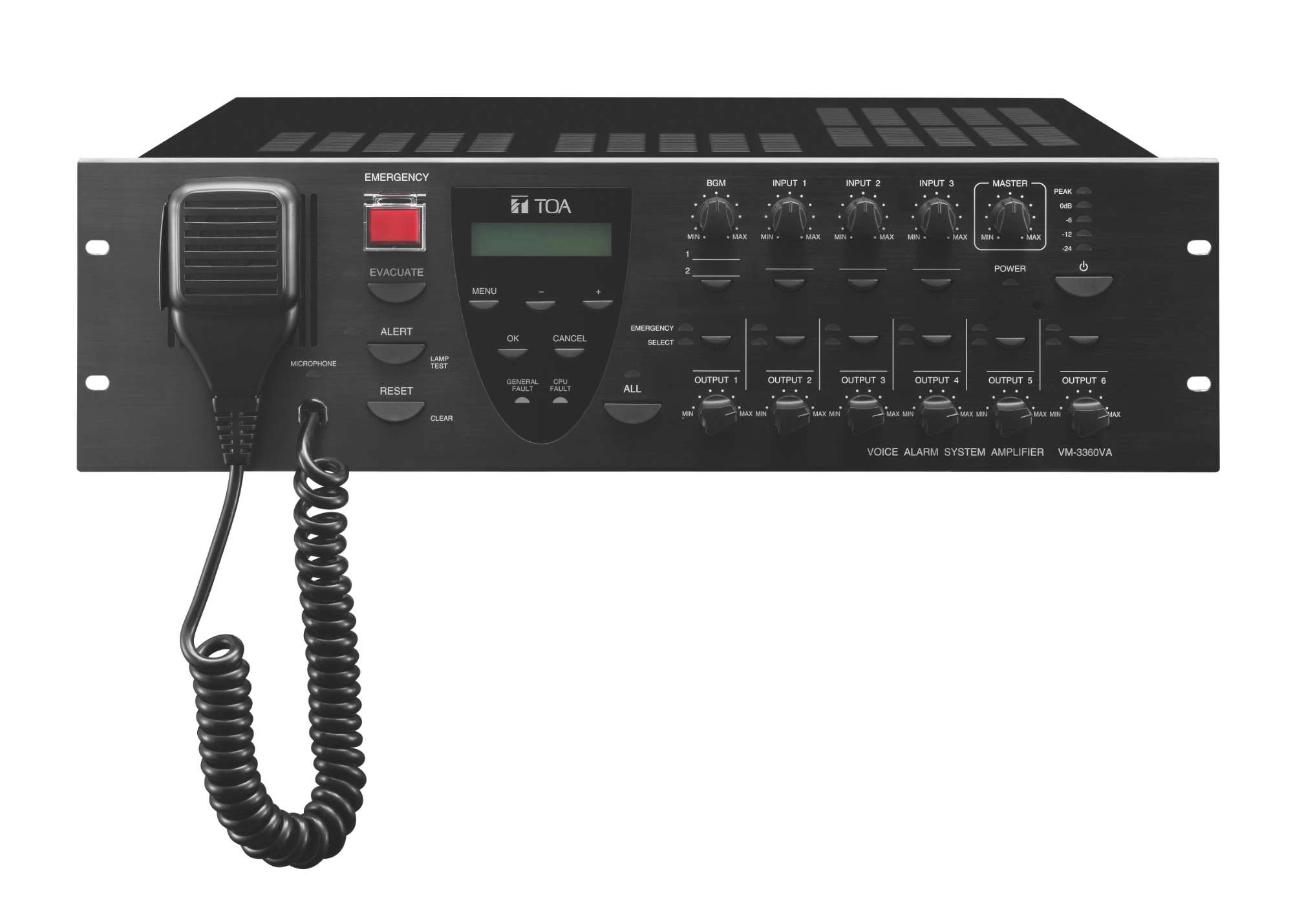

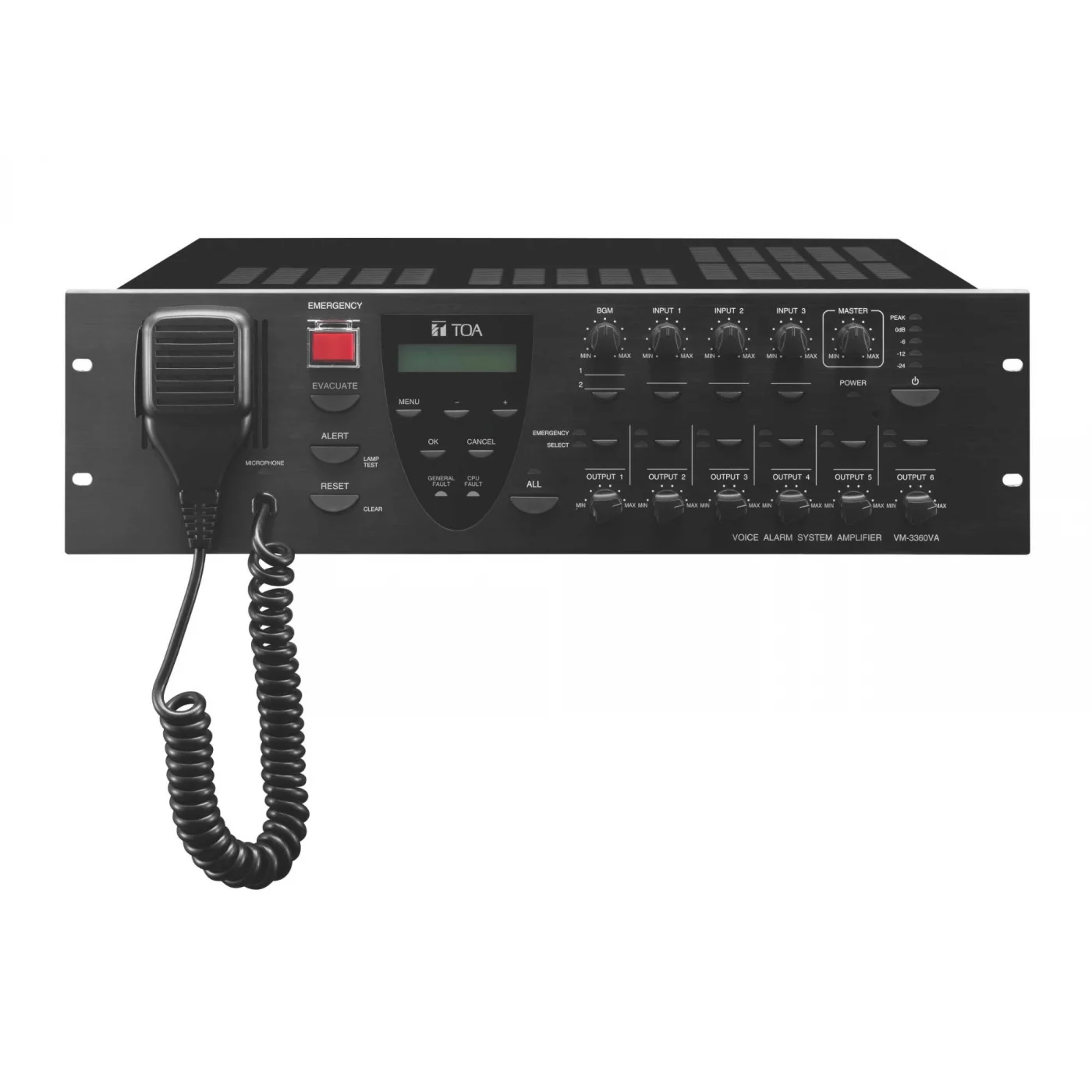

TOA VM-3360VA 6 Zone Ana Sistem Amplifikatörü 360W

Adet Fiyatı
Hızlı Gönderi

* Master, sistem başına 1 ünite gereklidir
* 360 W güç çıkışı
* 9 Adede kadar bağlayabilme imkanı
* Genel amaçlı 8 kontrol girişi ve 8 kontrol çıkışı
* Acil durum amaçlı 6 kontrol girişi ve durum bilgisi için 3 kontrol çıkışı
* Maksimum 8 uzak mikrofon. (4x genel + 4x acil durum)
* EN 54: maks. 2 x acil durum veya 4 x genel +1 x acil durum
* BGM için ön panelden ses kontrolü ile seçilebilen 6 bölge
* 6 genel ve 2 acil durum mesajı için dahili yüksek kaliteli elektronik sesli mesaj deposu



Teknik Özellikler

Power Source230 V AC, 50/60 Hz
Power Consumption850 W (with rated output signal),380 W (according to EN60065)
Rated Output360 W
Frequency Response50 Hz - 20 kHz, ±3 dB (at 1/3 rated output)
Distortion0.7 % or less (at rated output, 1 kHz)
S/N Ratio85 dB or more
Audio Input/Output CharacteristicSampling frequency: 48 kHz
A/D D/A converter: 24 bit
InputInput 1 - 3: -50 dB* (MIC)/-10 dB* (LINE) (changeable),600 Ω,
electronically balanced, combined XLR connector (female)/phone jack
Input 4: -50 dB* (MIC)/-10 dB* (LINE) (changeable),600 Ω, electronically balanced,
removable terminal block (14 pins)
BGM 1 - 2: -10 dB*, 10 kΩ, unbalanced, RCA pin jack
External amplifier input: 100 V line, removable terminal block (14 pins)
OutputSpeaker output 1 - 2: Max. (360 W) per output
Speaker output 3 - 6: Max. (120 W) per output
Speaker output 1 - 6: Total within 360 W, removable terminal block (14 pins)
Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier,
removable terminal block (16 pins)
Recording output BGM/Paging: 0 dB*, 10 kΩ, unbalanced, RCA pin jack
RM LinkInput 1 - 2: Connecting the RM-300MF/RM-200M Remote Microphone.
RJ45 female connector
Maximum distance: Total 800 m (874.89 yd) between this unit and remote microphones
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Network I/F10BASE-T / 100BASE-TX (selectable by automatic negotiation),RJ45 female connector
Maximum distance: 100 m (109.36 yd) between this unit and a switching hub
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
VM LinkOutput: Connecting the VM-3240E or VM-3360E, RJ45 female connector
Maximum distance: 800 m (874.89 yd)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
EXT PA LinkConnecting the VP-2421, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
General ControlInput 1 - 8: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC,
operating current: 10 mA or less, removable terminal block (14 pins)
Emergency ControlInput 1 - 5: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: -24 V ±20 %, Active: +24 V ±20 %,
RJ45 female connector
Status out: Relay contact output, withstand voltage: 40 V DC,
operating current: 2 - 300 mA, RJ45 female connector
ATT ControlRelay contact 1-6, 125 V AC or 30 V DC, total under 5 A,
removable terminal block (16 pins)
Power Input/OutputPower in: Connecting the VX-2000DS only (operating range: 20 - 40 V DC)
PS out: 28 V DC/24 A
M4 screw terminal, distance between barriers: 11 mm (0.43")
DC24V Output24 V DC, Maximum feeding current 0.3 A
Ds LinkConnecting the VX-2000DS, RJ45 female connector
Maximum distance: 5 m (16.4 ft)
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Operating Temperature-5 ℃ to +45 ℃ (23 ゜F to 113 ゜F)
Operating Humidity5 % to 95 %RH (no condensation)
FinishPanel: Aluminum, hairline, black
Case: Surface-treated steel plate, black, paint
Dimensions482 (W) × 132.6 (H) × 431.2 (D) mm (18.98" × 5.22" × 16.98")
Weight19 kg (41.89 lb)
AccessoryPower cable (2 m (6.56 ft)) …1, Setting software-CD …1, Link cable (3 m (9.84 ft)) …2,
Plastic foot …4, Plastic foot mounting screw …4, Removable terminal plug (14 pins)…3,
Removable terminal plug (16 pins) …1, Emergency microphone (hand-held type) …1
OptionInput transformer: IT-450
