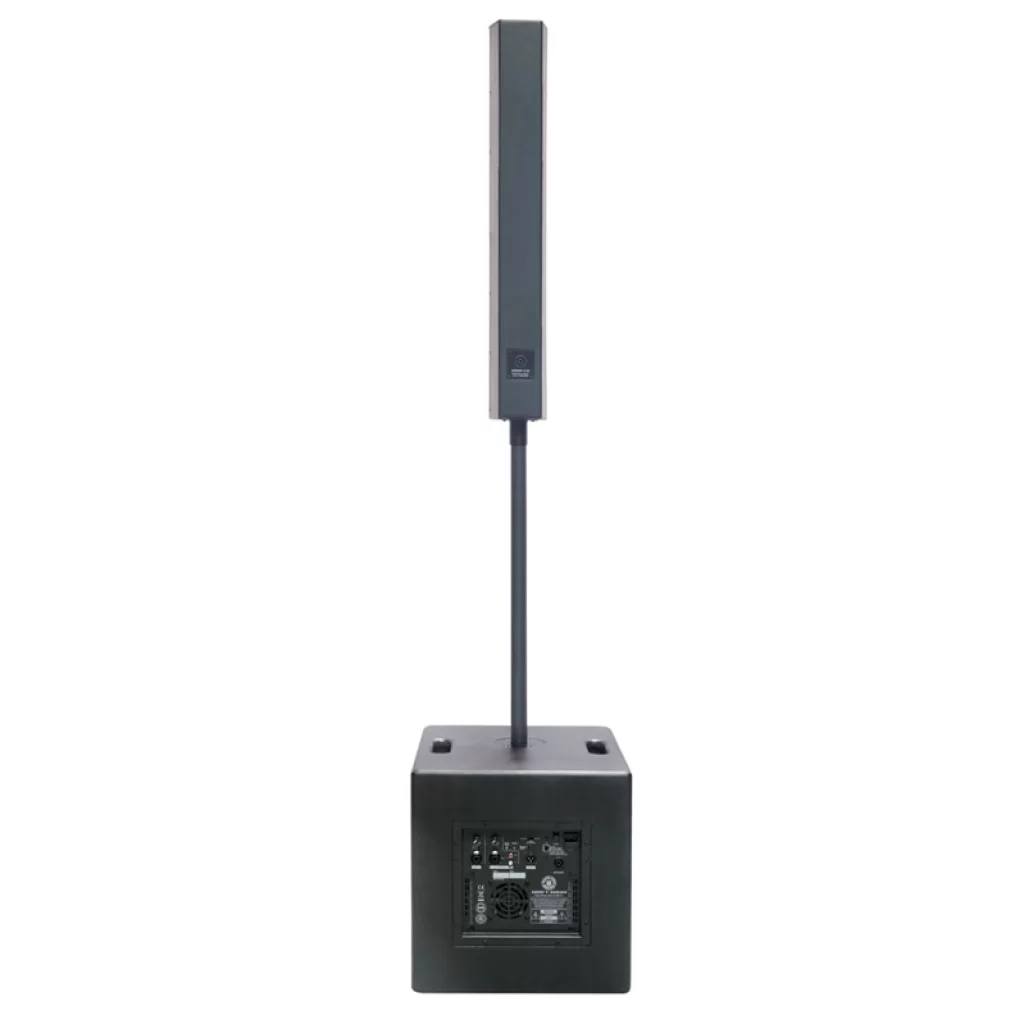

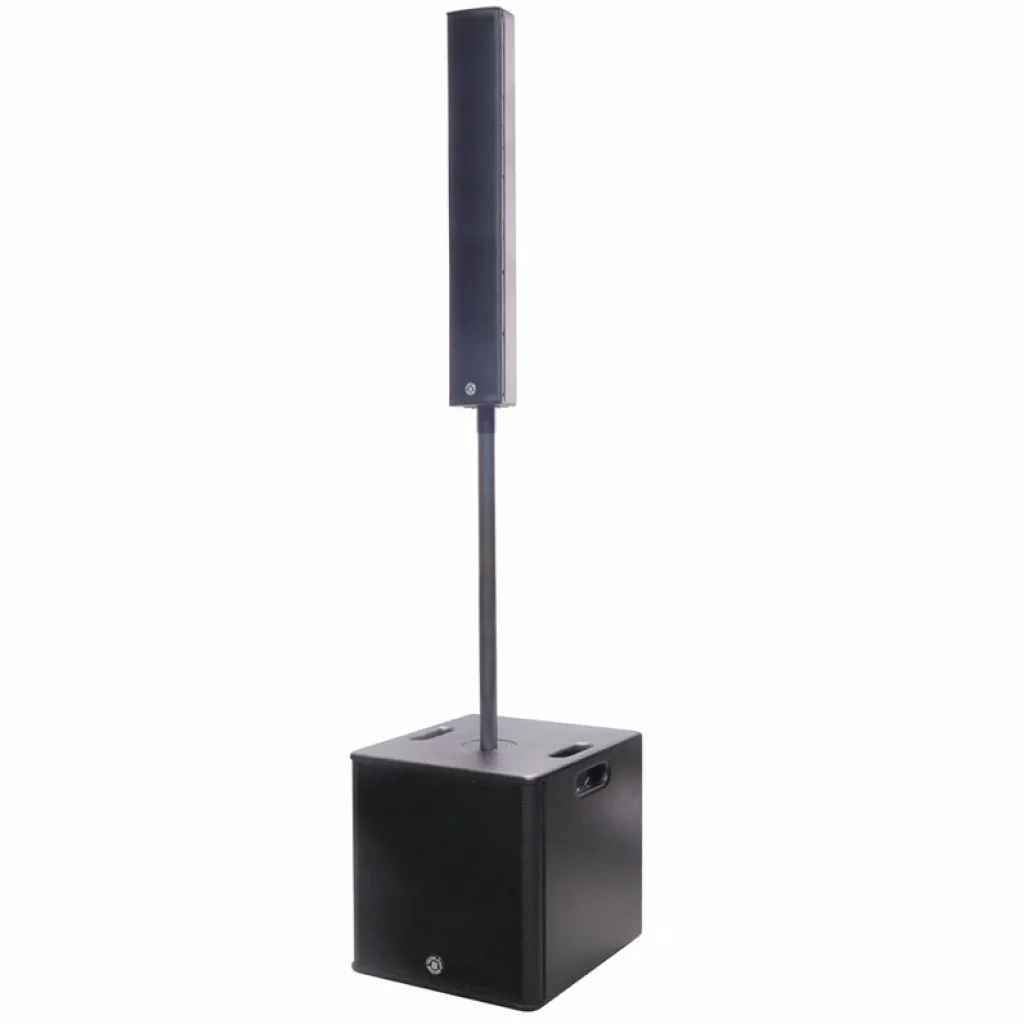

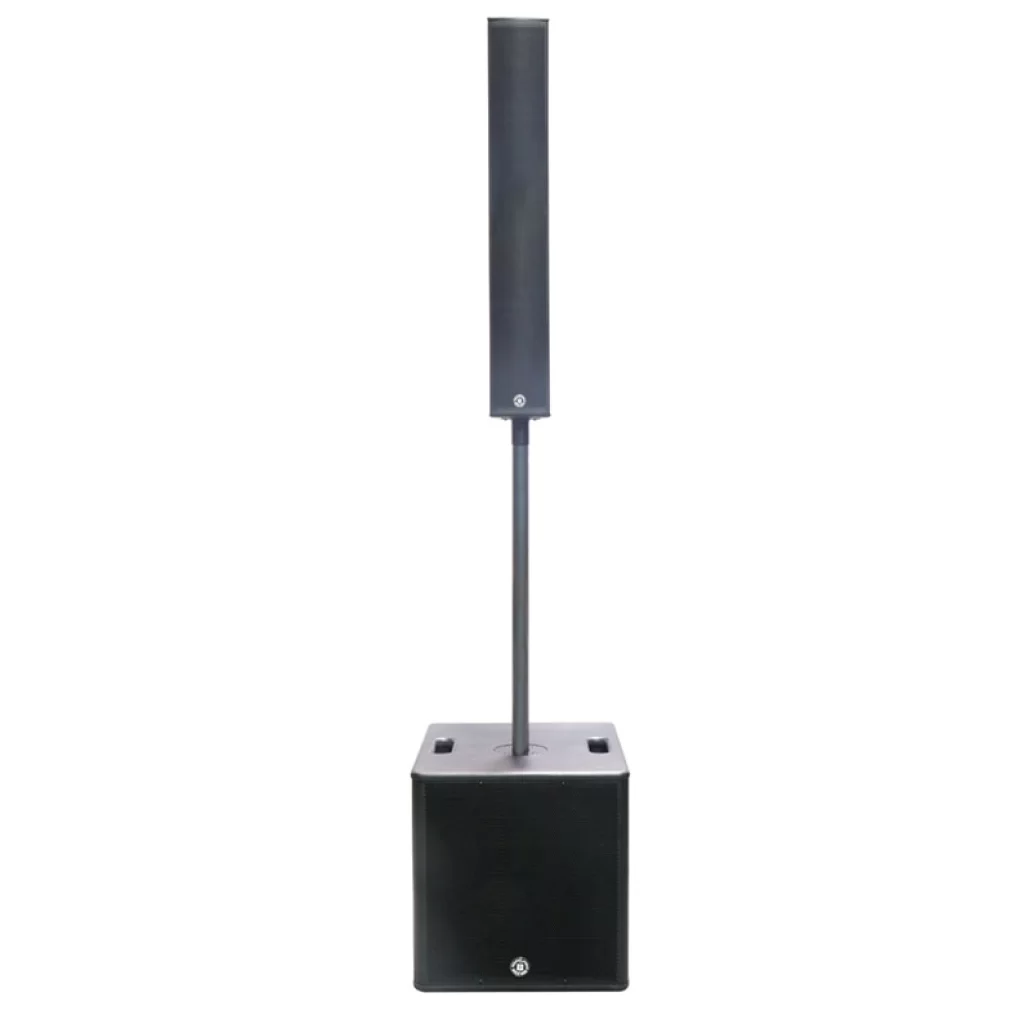

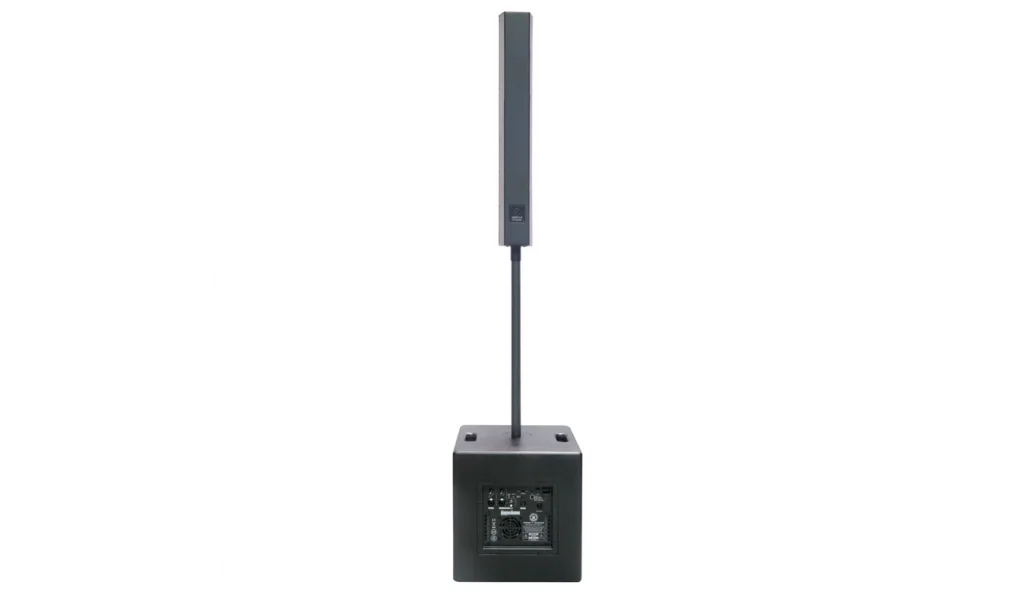

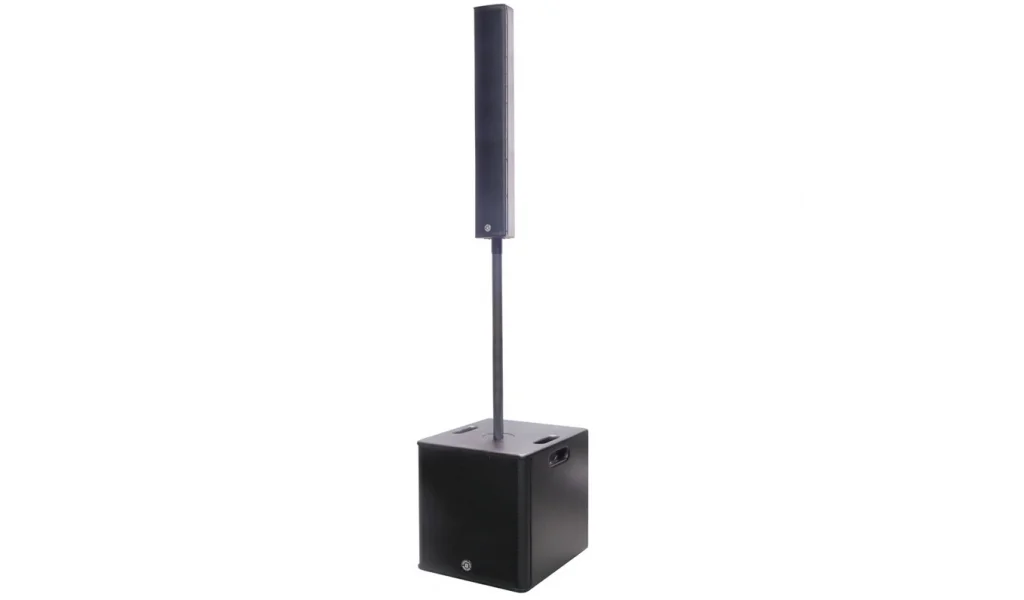

Topp Pro SOHO V8+S12 Pasif Hoparlör + Aktif Subwoofer Sistem
Model: SOHO V8 - Mid / High Unit
Mid range woofers: 8 x 3,5 wideband speakers, 1 Voice Coil
Nominal power handling capacity: 480W Program / 960W Peak
Frequency response -6dB: 140Hz -20kHz
Axial sensitivity 1W@1m: 97dB / 127dB Max.
Nominal impedance: 4 ohms
Input Connector: 1 x SPK
Directivity: 100° horizontal
Crossover frequency: 350Hz, 24 dB / Oct. Actiive
Enclosure Construction: Body In extruded wood, Black paint
Mounting: One metal pole-mount, two M8 Hanging points
Dimensions (WxHxD): 129.7 x 760 x 102.6mm (5.11 x 29.92 x 4.04)
Net Weight: 6.95 kg / 15.33 lbs.
Model: SOHO S12
Subwoofer: 1 x 12" Ø320mm - 2.5" Voice Coil
Frequency response -6dB: 40Hz-500Hz
Total amplifier power: 1400W (PROGRAM) / 2800W (PEAK) Class D @ 4 Ohms
Amplifier, subwoofer: 700W (PROGRAM) / 1400W (PEAK) Class D @ 4 Ohms
Amplifier, satellite/ mid-high unit: 700W (PROGRAM) / 1400W (PEAK) Class D @ 4 Ohms
Axial sensitivity 1W@1m: 96dB / 130dB Max.

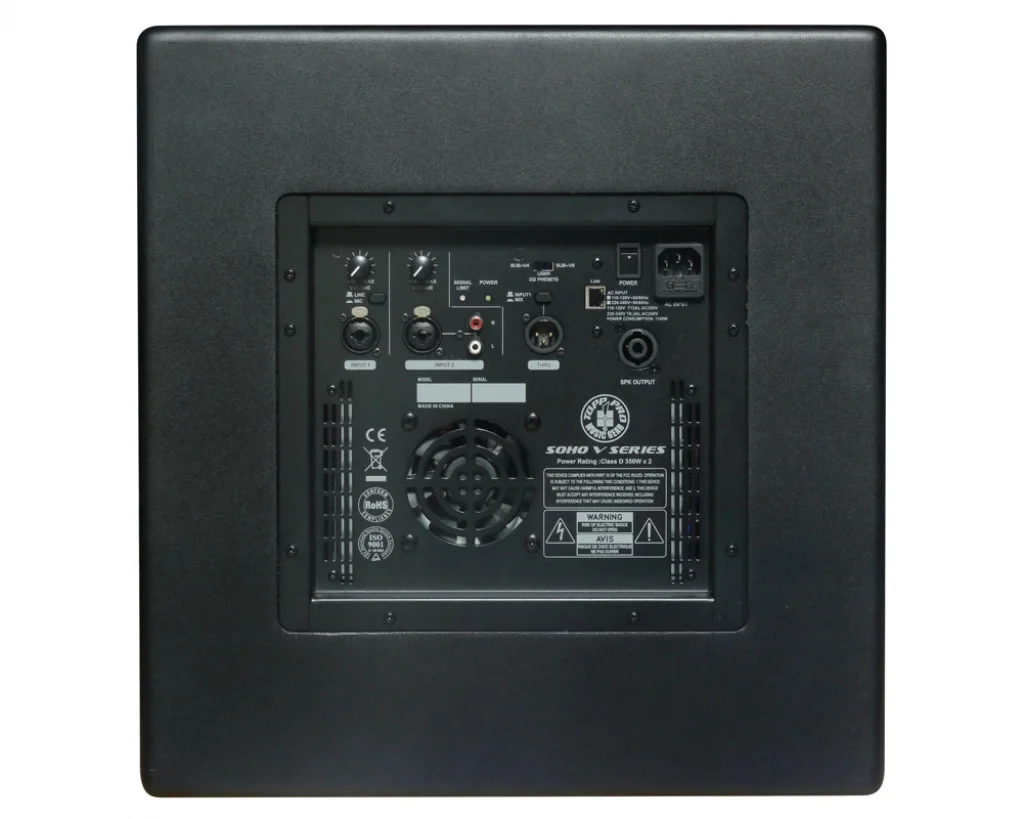

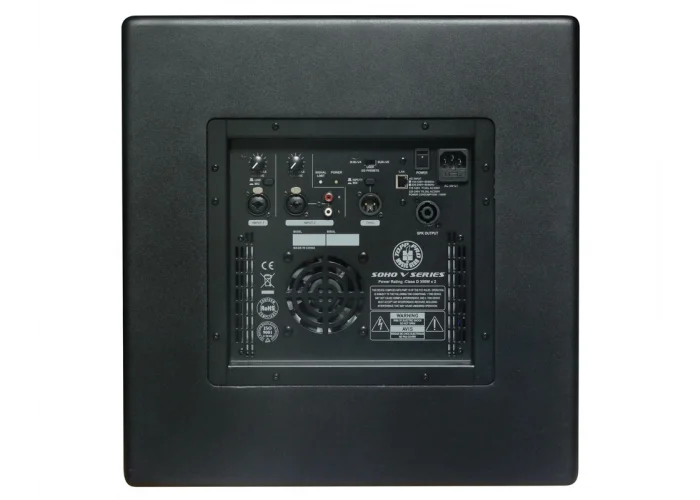

Electronic Protections: Thermal DC / Overload / Digital Compressor / Limit
Cooling: Temperature-controlled fan

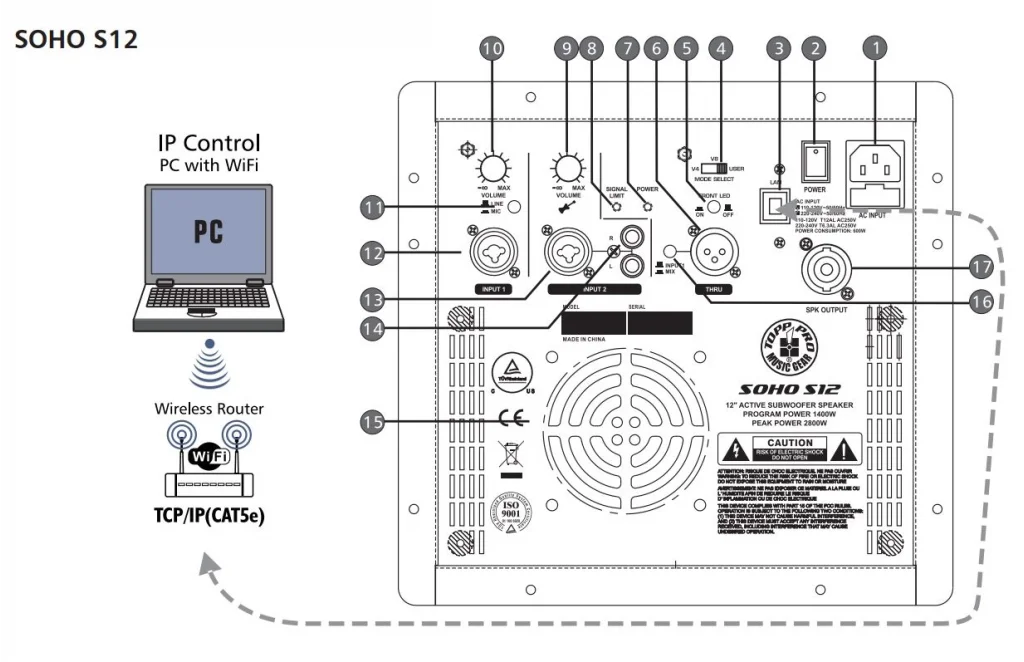

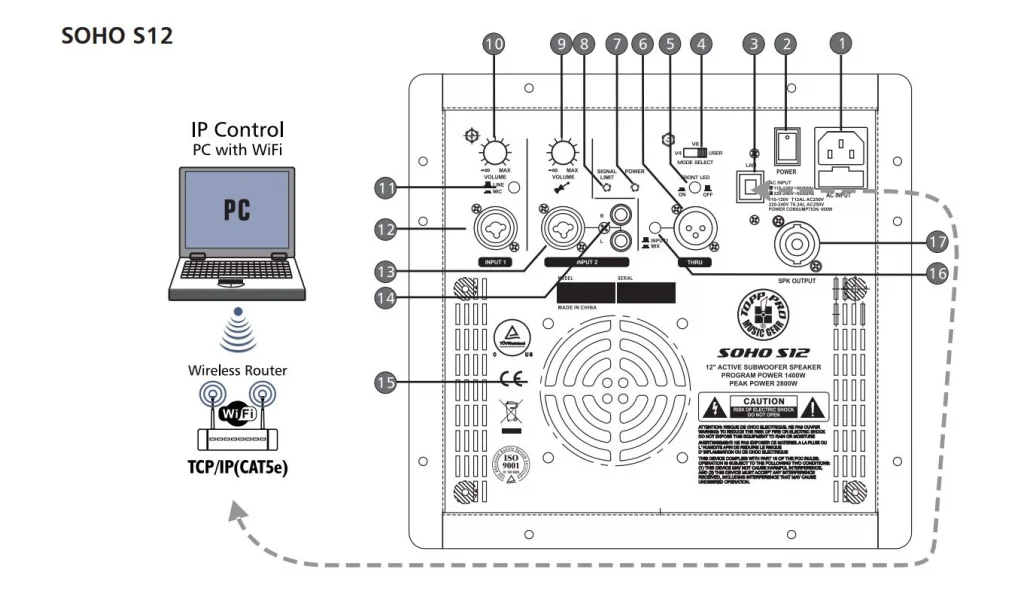

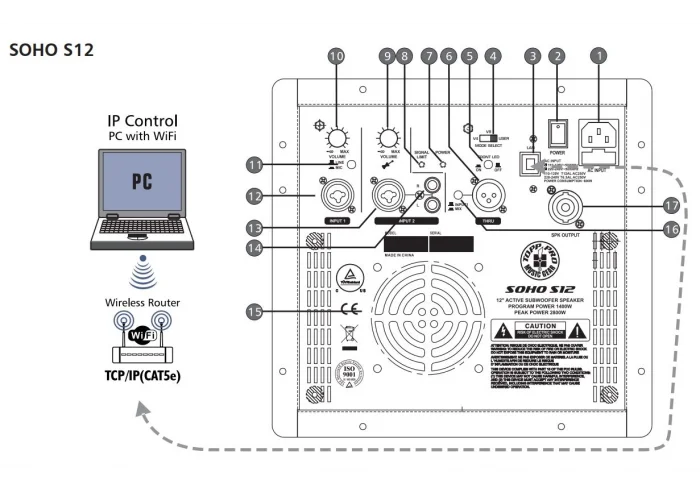

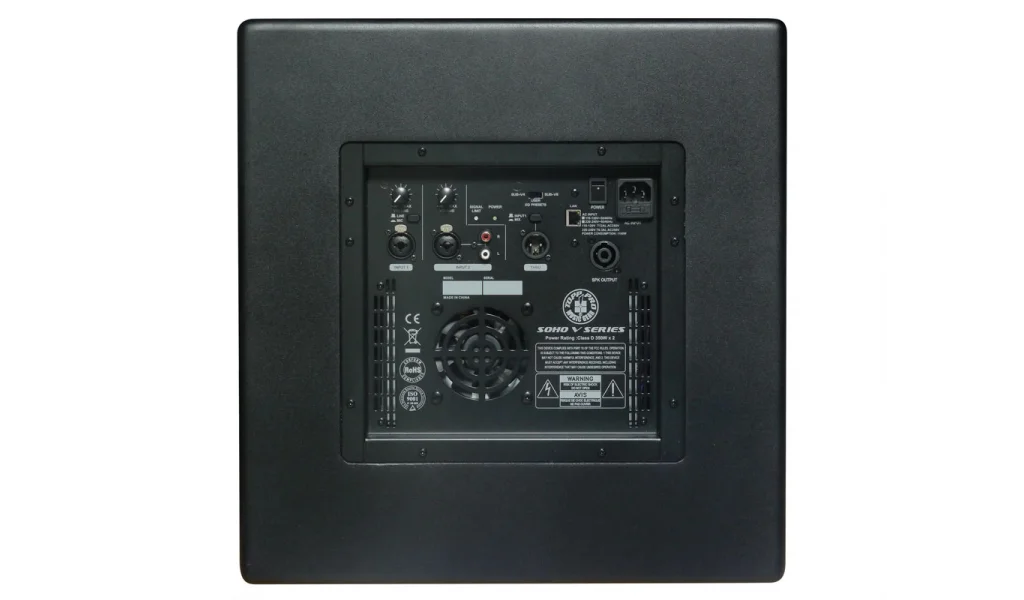

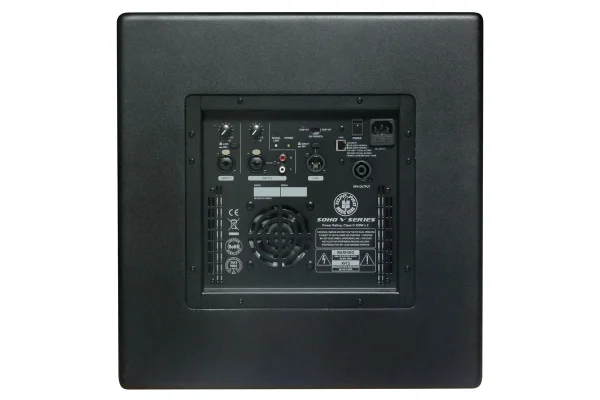

Connections: Input: 2 Combo - XLR 1/4", 1 RCA in L&R / Output: SPK Satellite / XLR Link
External Controls: Volume Control / Switch for Input sens / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control
Power Supply: 115V / 230V Switchable
Enclosure Construction: Plywood cabinet, resistant black paint, metal grille with foam, rubber feet,handles
Mounting: One metal standard pole-mount
Dimensions (W x H x D): 430 x 450 x 480 mm (16.93" x 17.72" x 18.90")
Net Weight: 20.51 kg / 45.22 lbs
