| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 6000 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Max. Supported Resolution | WUXGA (1920 x 1200) @60Hz |
| Native Aspect Ratio | 16:10 |
| Lamp Life and Type | Lamp free design. Laser light source lasts up to 20,000 hours |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.67” DMD |
| Throw Ratio | 1.15 - 1.90 : 1 |
| Image Size (Diagonal) | 37" - 201" |
| Projection Distance | 1.5 - 5.0 m |
| Projection Lens | F = 2.45 - 3.13, f = 17.23 - 27.9 mm |
| Zoom Ratio | 1.65x |
| Lens Shift Range | Vertical: +12%; Horizontal: +/-2.5% |
| Offset | 115% and Manual Lens Shift |
| Keystone Correction | Vertical: +/-30°; Horizontal: +/-30° |
| Speakers | 5W x 2 |
| Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p),NTSC (M, 3.58/4.43 MHz),PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |

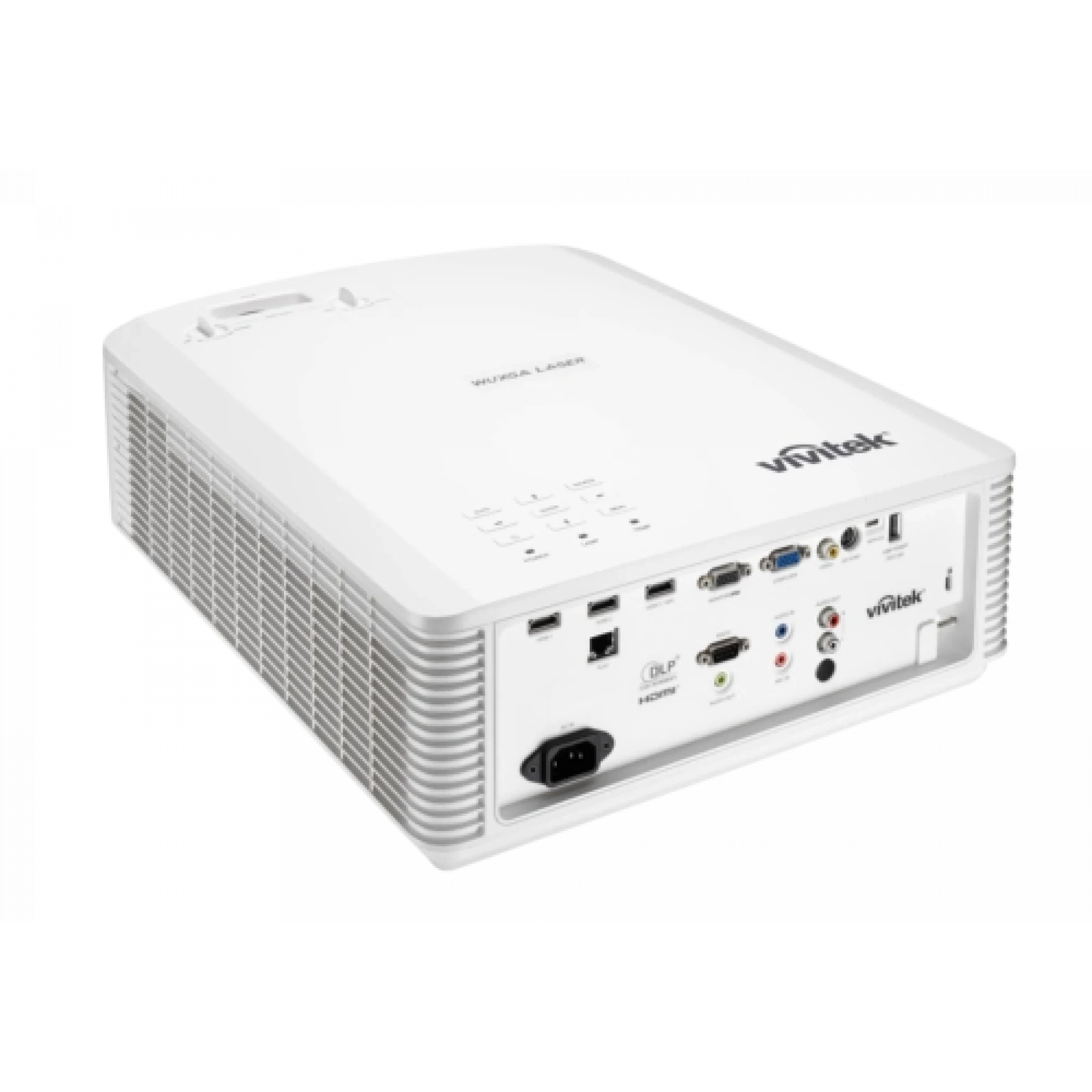

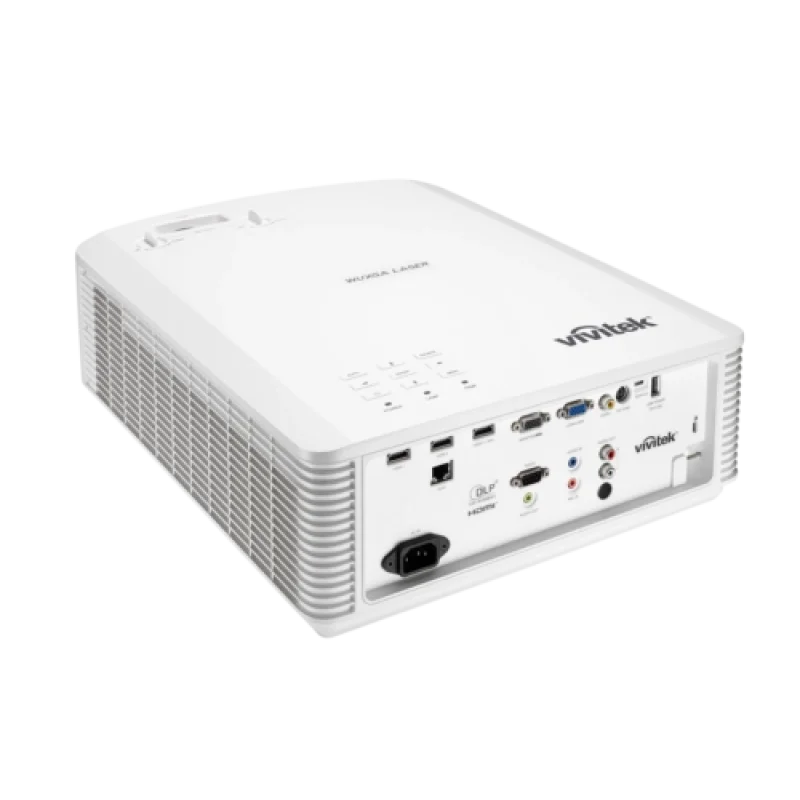

| I/O Connection Ports | VGA-In (15pin D-Sub),HDMI (x3: HDMI/MHLx1, HDMIx2),Composite Video, Audio-In (RCA) , Audio-In (Mini-Jack),VGA-Out (15pin D-Sub),Audio-Out (Mini-Jack),RJ45 (x2: HDBaseTx1, LANx1),RS-232, 3D-Sync (1: Out),USB A (Power Only),USB miniB (Service),Microphone (Mini-Jack) |
| Dimensions (W x D x H) | 360 x 451.5 x 151 mm |
| Weight | 10.7 kg |
| Noise Level | 36dB/34dB (Normal/Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 350W (Eco. Mode),430W (Normal Mode),<0.5W (Standby) |
| 3D Ready(DLP link, PC+Video) | Yes |
| Standard Accessories | VGA Cable, Warranty Card (by region),Remote Controller (with battery),AC Power Cord |
| Optional Accessories | Remote Control P/N: 5041846600 |
| Warranty | Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
| UPC Code | 813097024138 |
