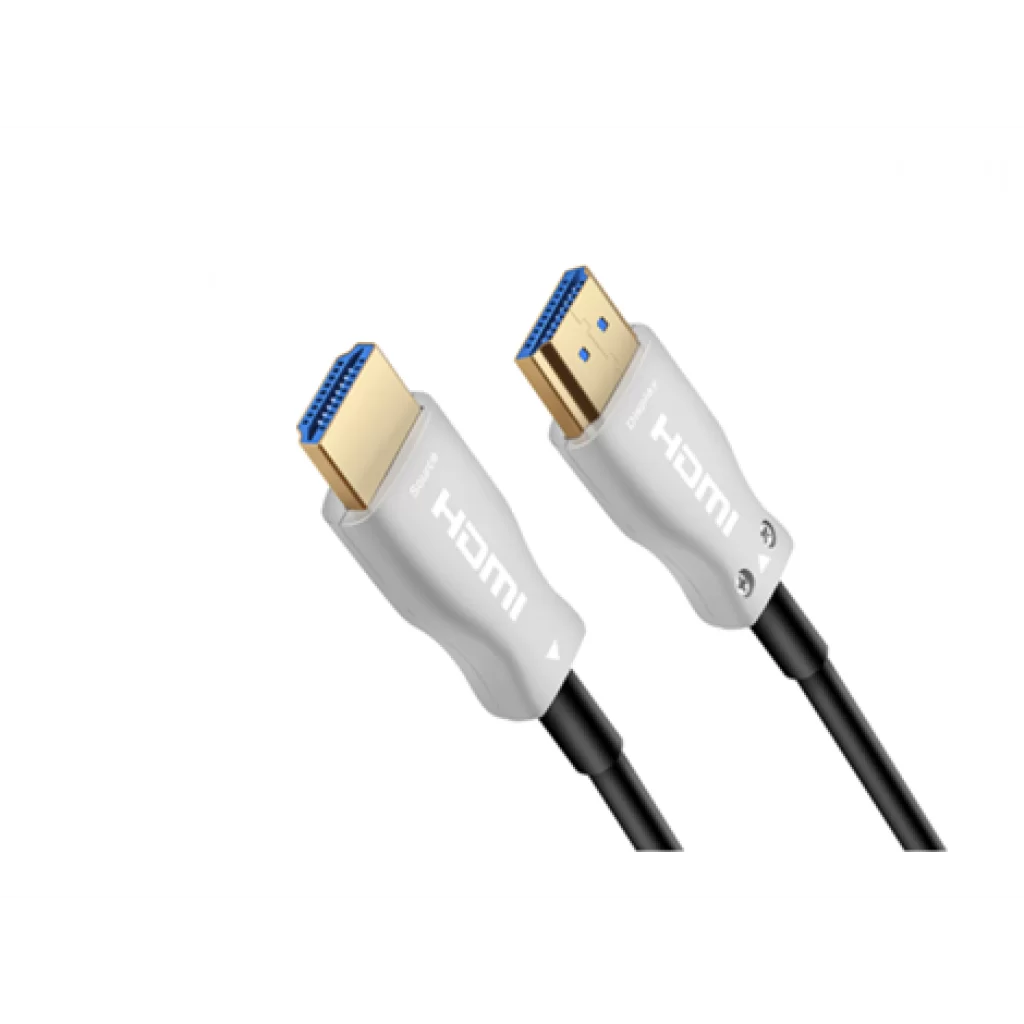

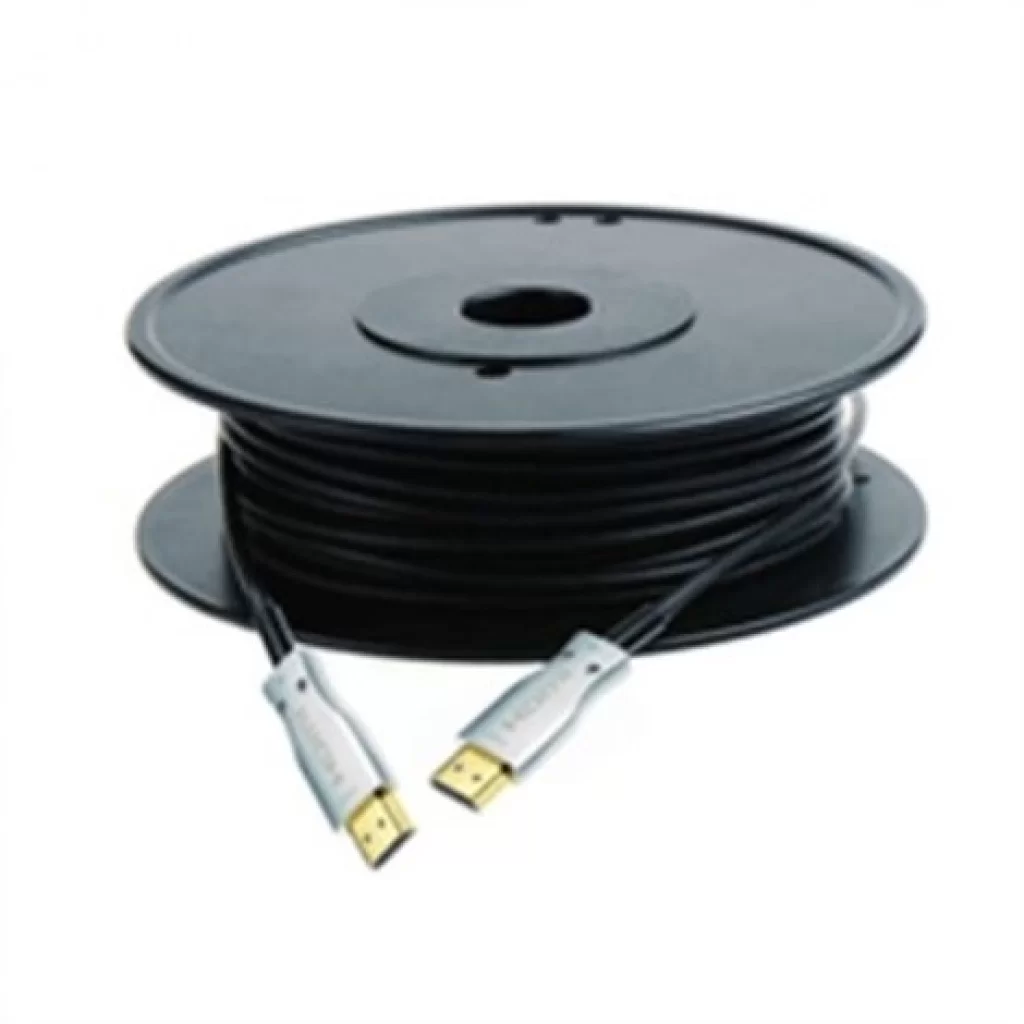

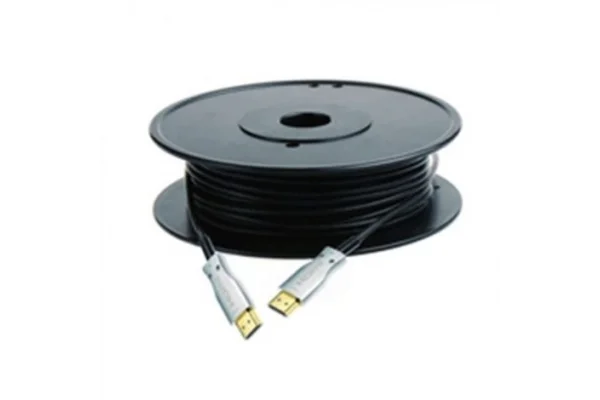

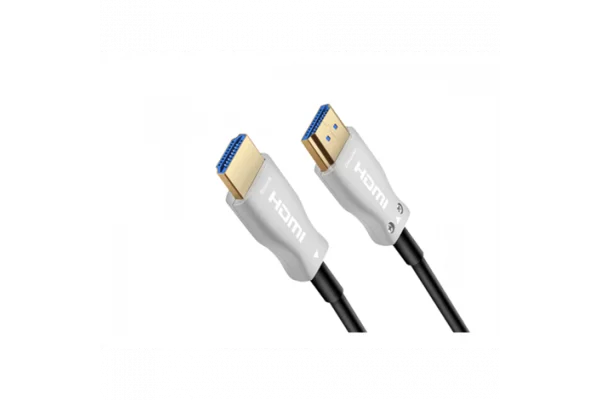

WOX WX-HDMI20AOC-100 100 metre Hybrid Aktif Fiber Optik HDMI Kablo 4K 60 Hz 4:4:4 18Gbps bandwidth

Adet Fiyatı
Hızlı Gönderi
  • 100 meter
  • Supports computer resolutions to 4K 60Hz 4:4:4
  • Plug and Play
  • Compatible HDMI 2.0 standard and supports remaining HDMI 1.4, HDMI1.3b etc standards
  • Support HDCP2.2@ARC, HDCP1.4
  • EDID support
  • No loss of signal
  • No external power required
  • Hybrid optical cable with fiber and copper wire
  • PIN gold plated, shell gold plated
  • Environmental Specifications; For Indoor use only
  • Powered via HDMI devices
HDMIHDMI 2.0
HDCPHDCP 2.2 @ ARC
Video Bandwidth6 Gbps/x3Channel (max) + Clock
Supported Resolutions & Distance480p, 720p, 1080i, 1080p, 3DFull HD 1920 x 1080, WUXGA 1920 x 1200, 2K, 4K(30p),4K(60p)
O/E Converter4 channel 850 nm VCSEL array (Source) 4 CH GaAs PD array (Sink)
Connector TypeHDMI 2.0 type A
Cable Type4 core OM3 Multimode Fiber ( High Speed Data ) and 7 core Copper Cable
Jacket Outer MaterialBlack PVC jacket
Cable WeightTBD
Cable ColorBlack
Maximum Tension force100N
Minimum Bend Radium20mm
Differential Input100 ohm (typical)
Operating temperature-40°C to 70°C
Power Consumption250mW (max)
Power SupplyNo external power required
CompliantsRoHS 2.0 & REACH compliant
PackageBox
