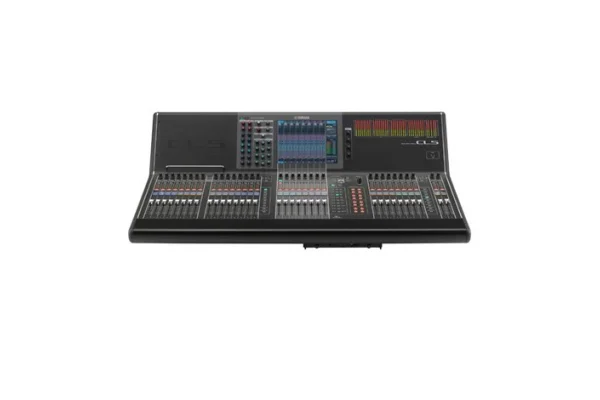

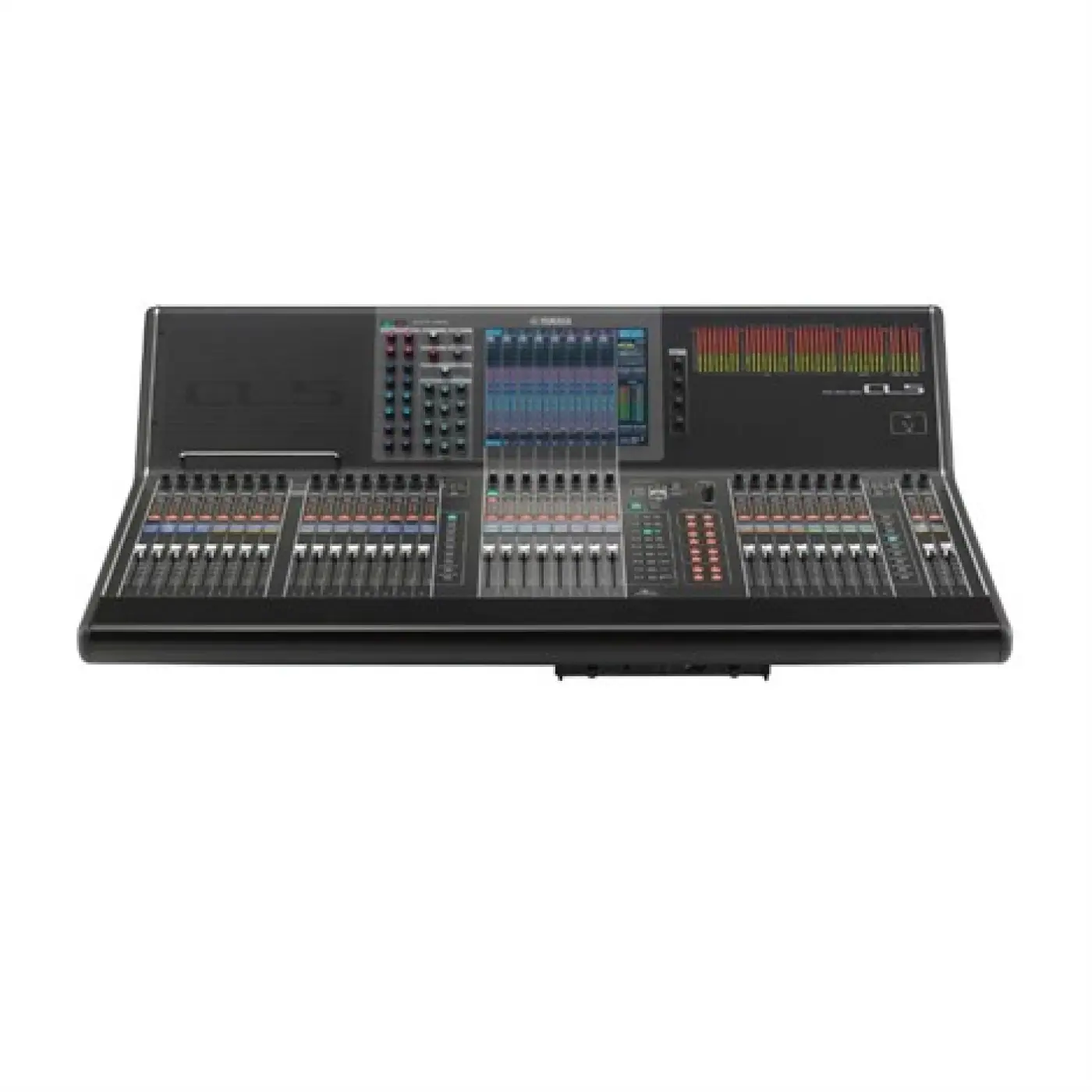

Name: Yamaha CL5 72 Kanal Dijital Mixer
Brand: Yamaha
SKU: Yamaha CL 5

Yamaha CL5 72 Kanal Dijital Mixer

Ürün Kodu: Yamaha CL 5

Barkod: 2242005887189

Marka: Yamaha

Kategori: Dijital Mikser

Ürün Grubu: Mixer (Dijital)

Stok durumu veya tedarik süresini sorunuz: 0 (533) 592 49 10

Hızlı Gönderi

Rio 32 veya Rio 16 stagebox ile (Opsiyonel) max giriş kanal sayısı 72 mono, 8 stereo.
Fader configuration: 16-fader left section, 8-fader Centralogic section, 8-fader right section, 2-fader master section .
Stainless steel stay for iPad support.
Built-in meter bridge.

Technical Specification of QL/CL

		QL5	QL1	CL5	CL3	CL1
Mixing Capacity	Input Mixing Channels	64 mono + 8 stereo	32 mono+ 8 stereo	72 mono + 8 stereo	64 mono + 8 stereo	48 mono + 8 stereo
	Mix Buses	16		24
	Matrix Buses	8 (Input to Matrix supported)		8 (Input to Matrix supported)
	Stereo Bus	1		1
	Mono	1		1
	Cue	1		1
Local Connectors	Analog Inputs	32	16	8
	Analog Outputs	16	8	8
	MY Slots	2		3
	Dante I/O	Primary / Secondary		Primary / Secondary
	Digital Out	1 (AES/EBU)		1 (AES/EBU)
	GPI	5 in / 5 out		5 in / 5 out (CL V1.11 or later)
	Word Clock I/O	Yes		Yes
	MIDI I/O	In / Out		In / Out
	External Redundant PSU	No		Optional PW800W
	Meter Bridge	No		Output meter built-in	Optional MBCL
	Ethernet	Yes		Yes
	AC Inlet	V-Lock Type		V-Lock Type
Scene Memory	Number of Scenes	300		300
	Recall Safe	Yes		Yes
	Focus Recall	Yes		Yes
	Fade Time	Yes (0s ~ 60s)		Yes (0s ~ 60s)
	Preview	Yes		Yes (CL V1.51 or later)
	Selective Load / Save	Yes		Yes (CL V1.7 or later)
	Tactile Control Keys	No (on-screen)		Yes
Input Channel Functions	Gain Compensation	Yes		Yes
	Digital Gain	Yes (-96dB ~ +24dB)		Yes (-96dB ~ +24dB)
	ATT	-96dB ~ 0dB		-96dB ~ 0dB
	HPF	20Hz ~ 600Hz, -6 or -12dB/oct Selectable		20Hz ~ 600Hz, -6 or -12dB/oct Selectable (CL V1.51 or later)
	PEQ	4 Band Full PEQ (RTA overlay support in QL V3.0 or later)		4 Band Full PEQ (RTA overlay support in CL V3.0 or later)
	Dynamics 1	Gate / Ducking / Compressor / Expander		Gate / Ducking / Compressor / Expander
	Dynamics 2	Compressor / Compander-H / Compander-S / De-esser		Compressor / Compander-H / Compander-S / De-esser
	Input Delay	Yes (0ms ~ 1000ms, frame delay support in QL V3.0 or later)		Yes (0ms ~ 1000ms, frame delay support in CL V3.0 or later)
	DCA Group	16 (Output DCA support in QL V3.0 or later)		16 (Output DCA and DCA Roll-Out support in CL V2.0 or later)
	MUTE Group	8		8
	Number of Inserts	2		2 (CL V2.0 or later)
	Direct Out	Yes		Yes
Output Channel Functions	PEQ	4 Band Full PEQ (RTA overlay support in QL V3.0 or later)		4 Band Full PEQ (RTA overlay support in CL V3.0 or later)
	Dynamics 1	Compressor / Expander / Compander-H / Compander-S		Compressor / Expander / Compander-H / Compander-S
	MUTE Group	8		8
	Number of Inserts	2		2 (CL V2.0 or later)
Premium Rack	Number of Premium Racks	8		8
Premium Rack	Mountable Device	RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (QL V3.0 or later)		RND Portico5033 / RND Portico5043 / U76 / Opt-2A / EQ-1A / Dynamic EQ / Buss Comp 369 (CL V3.0 or later)
Effect Rack	Number of Effect Racks	8		8
	Number of Effect Programs	54		54
	Mountable Device	Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (QL V3.0 or later)		Effect / 31BandGEQ / Flex15GEQ / 8Band PEQ (CL V3.0 or later)
GEQ Rack	Number of GEQ Racks	8		16
GEQ Rack	Mountable Device	31BandGEQ / Flex15GEQ / Dugan Automixer / 8Band PEQ (CL V3.0 or later) (RTA overlay support in QL V3.0 or later)		31BandGEQ / Flex15GEQ / Dugan Automixer (CL V3.0 or later) / 8Band PEQ (CL V3.0 or later) (RTA overlay support in CL V3.0 or later)
Dante	Number of I/O Channels	64 in / 64 out	32 in / 32 out	64 in / 64 out
Dante	Dante Patch from Console	Yes		Yes
Recording	USB Memory Recording	Yes		Yes
Recording	DVS Recording	Yes (DVS and Nuendo Live bundled)		Yes (DVS and Nuendo Live bundled)
Broadcast Functions	5.1 Surround Panning	Yes (QL V3.0 or later)		Yes (CL V3.0 or later)
	Surround Monitor	Yes (QL V3.0 or later)		Yes (CL V3.0 or later)
	Mix Minus	Yes (QL V3.0 or later)		Yes (CL V3.0 or later)
	L-Mono / R-Mono / LR-Mono	Yes (QL V3.0 or later)		Yes (CL V3.0 or later)
Other Functions	Port to Port	Yes		No
	RTA	Yes (QL V3.0 or later)		Yes (CL V3.0 or later)
	Output Port Delay	Yes (0ms ~ 1000ms, frame delay support in QL V3.0)		Yes (0ms ~ 1000ms, frame delay support in CL V3.0)
	Cascade	Yes		Yes (via MY slots)
	User Level	Yes		Yes
	Help File	Yes		Yes (CL V1.51 or later)
	Oscillator	Sine Wave 1ch / Sine Wave 2ch (QL V3.0 or later) / Pink Noise / Burst Noise		Sine Wave 1ch / Sine Wave 2ch (CL V3.0 or later) / Pink Noise / Burst Noise
	Channel Link	Yes (Output Channel Link support in QL V3.0 or later)		Yes (Output Channel Link support in CL V3.0 or later)
	Channel Copy/Move	Yes		Yes
User Interface	Display	10 inch Touch Panel		10 inch Touch Panel
	Centralogic Section	No		Yes
	Faders	32 + 2	16 + 2	16 + 8 + 8 + 2	16 + 8 + 2	8 + 8+ 2
	Selected Channel Encoders	Gain, HPF, PEQ (controls for a selected band),Dynamics 1/2 (Threshold only),Pan		Gain, HPF, PEQ (controls for 4 bands),Dynamics 1/2 (Threshold only),Pan, Mix/Matrix Sends
	Channel Encoder	No		Yes (for Gain, Send Level, or an assigned parameter)
	Channel Name / Color Display	Yes		Yes
	Custom Fader Banks	Yes (customized for all faders in a lump)		Yes (customized for each fader section)
	User Defined Keys	12 (x 4 banks in QL V3.0 or later)		16 (x 4 banks in CL V3.0 or later)
	User Defined Knobs	4 (on-screen)		4
	Touch and Turn Knob	Yes		Yes (using a User Defined Knob)
	Monitor Level Knob	Yes (on-screen)		Yes
	Wooden Arm Rest	No		Yes
	iPad Stay	Yes	No	Yes		No
	Rack-mounting	No	Yes	No
Software	Editor	QL Editor (Win/Mac)		CL Editor (Win/Mac)
	StageMix	QL StageMix (iPad app)		CL StageMix (iPad app)
	Console File Converter	Yes (Win/Mac)		Yes (Win/Mac)
