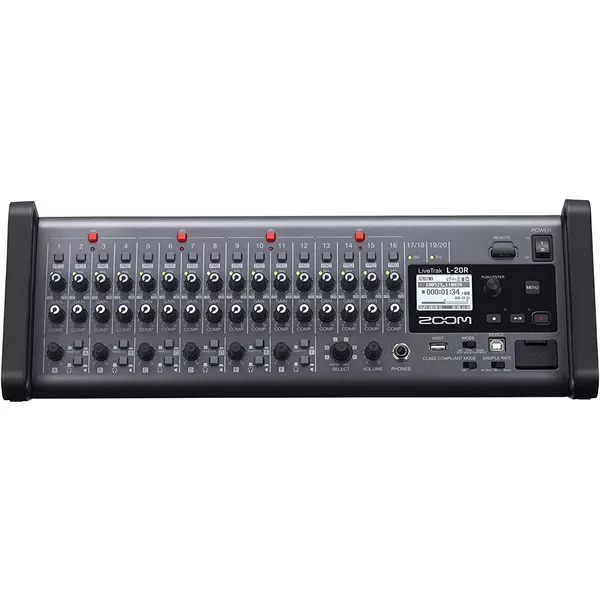

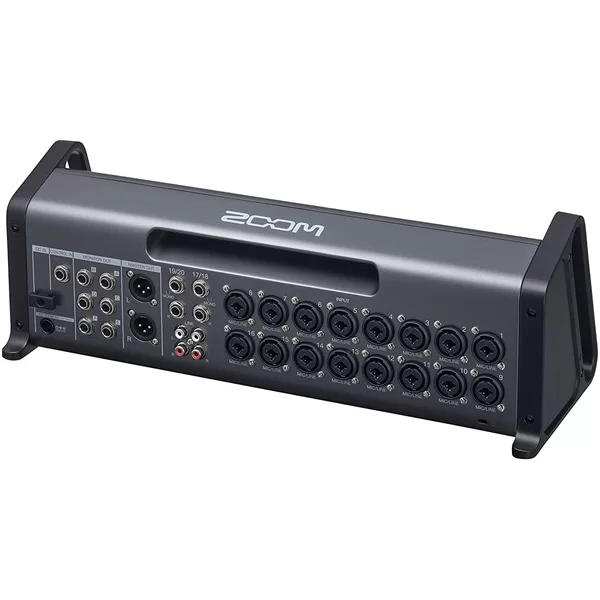

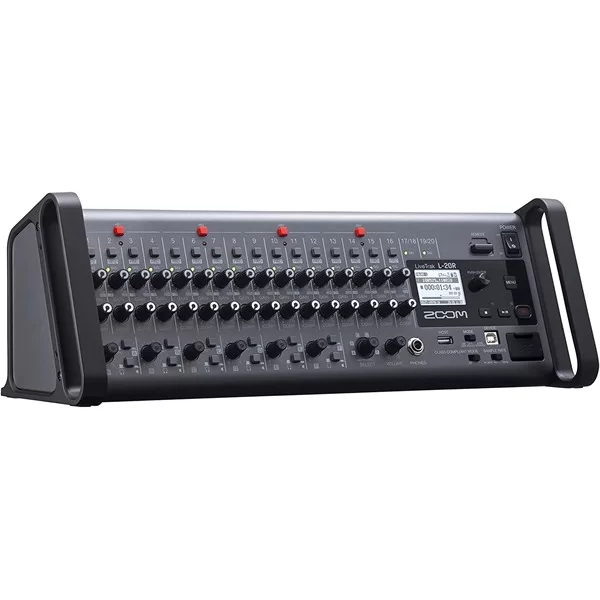

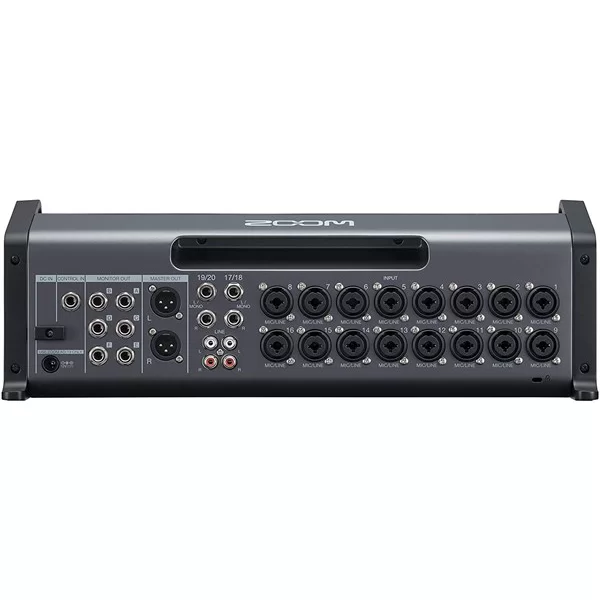

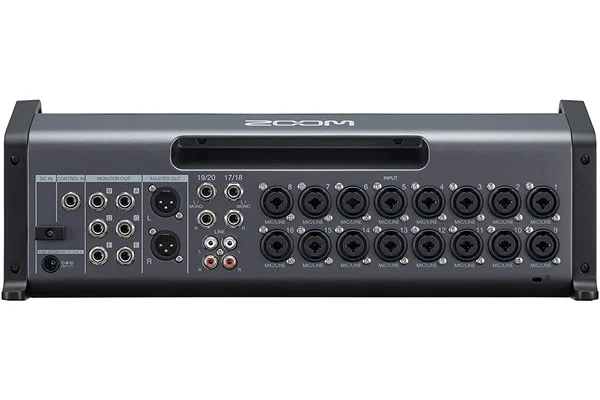

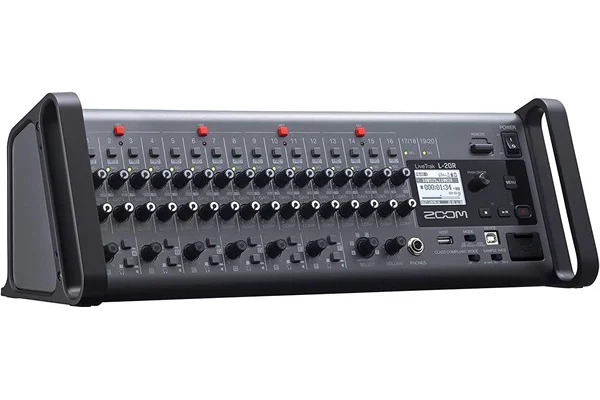

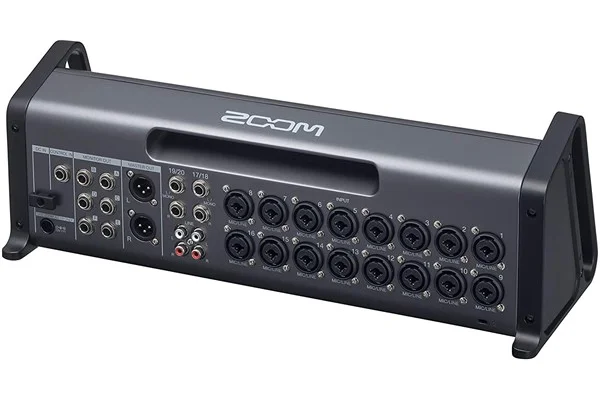

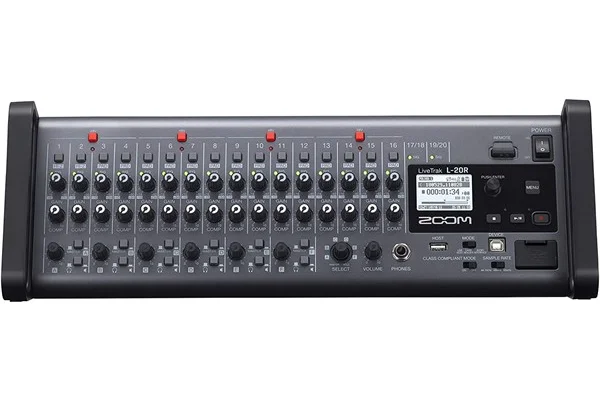

Zoom LiveTrak L-20 20-Kanal Dijital Mikser
16 mono, 2 stereo, çift efekt, 6 monitör çıkışlı digital ses mikseri. bilgisayar yada
tablete gerek duymaksızın tüm özelliklerin kullanımı için fiziksel Knobe ve Fader
kontroller, 2 kanal Hi-Z preamp, 14 kanal PAD, 16 adet COMBO XLR/TRS
mic/line giriş, 16 x 4 USB audio interface, haricen temin edilecek ZOOM BTA-1
adapter ile Bluetooth üzerinden IPAD ile kontrol, fiziki gain ve kompresor
kontrolleri. fiziki monitör çıkış seviye kontrolleri. IN EAR MONITORING sistemine
tam uyum / 6 adete kadar monitör kulaklık çıkışı ( her biri monitör yada kulaklık
kullanımına göre seçilebilir yapıda ) ,dahili Stereo SD CARD recorder, metronom,
2 ch / 4ch gruplar halinde +48 phantom power.
- 20 Input channels: 16 Mono and 2 stereo channels
- 16 XLR / TRS combi jacks
- Stereo channels with 2x 6.3 mm jack and RCA jacks
- Per channel: Gain control, 3-band equaliser, panorama, compressor and 2 effects buses
- Hi-Z connectors on channels 1-2
- Switchable 26 dB pad for channels 3 to 16
- Low cut variably adjustable from 40 - 600 Hz on each channel
- 6 Configurable monitor paths (6.3 mm jack)
- Monitor outputs can be configured as a headphone output or normal Line-Level output
- +48 V phantom power switchable into 4 groups
- 20 Internal, editable chorus, delay and reverb effects
- USB audio interface with 22 inputs and 4 outputs
- Audio recording up to 24 bit / 96 kHz on SD storage media (512 GB maximum)
- Memory function for up to 9 mixer scenes
- Compatible with the Remote Mixer App for iPad
- Dimensions (W x D x H): 438 x 158.2 x 151.7 mm
- Weight: 2.49 kg
- Includes power adapter (AD-19),BTA-1 Bluetooth adapter, rack bracket and quick start guide
